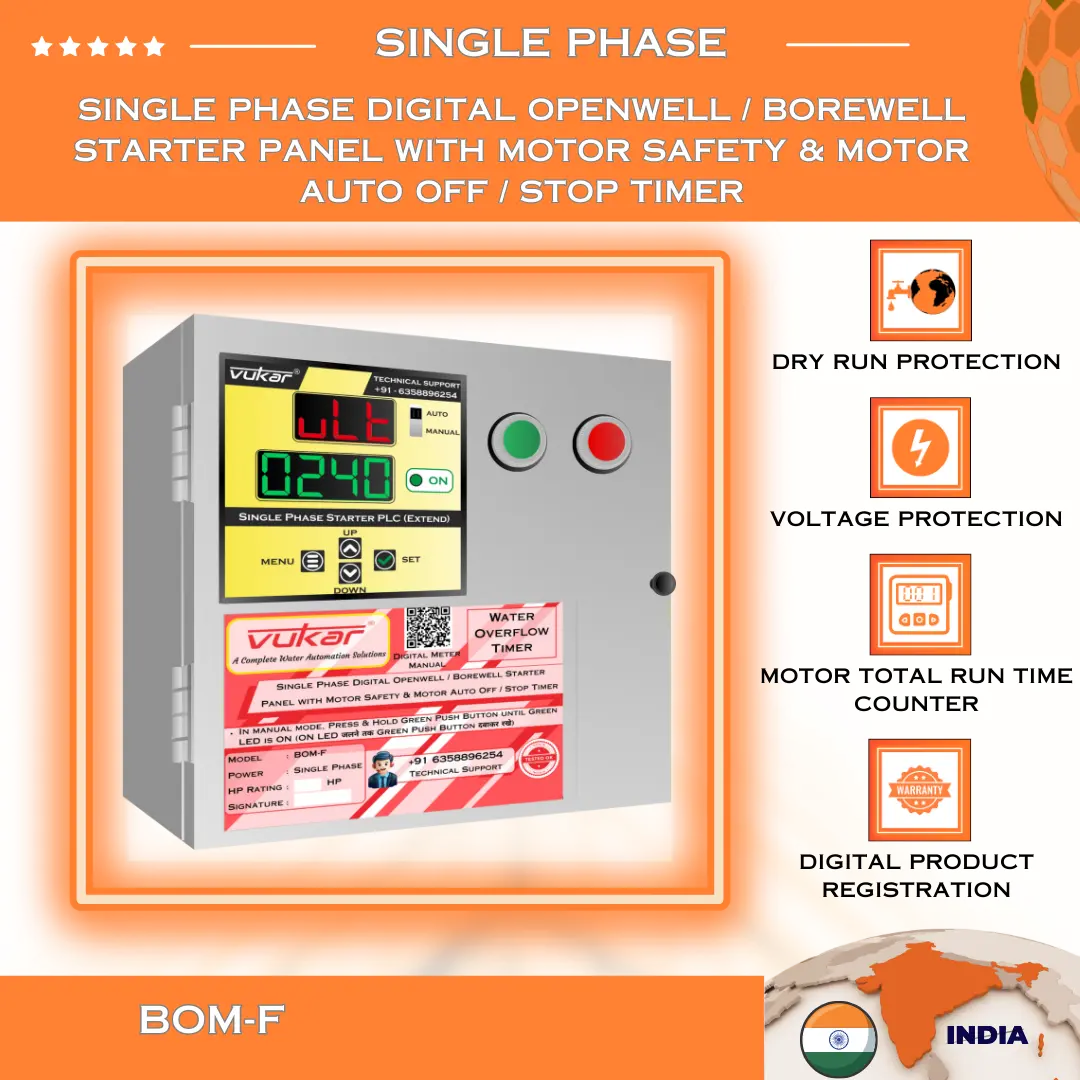

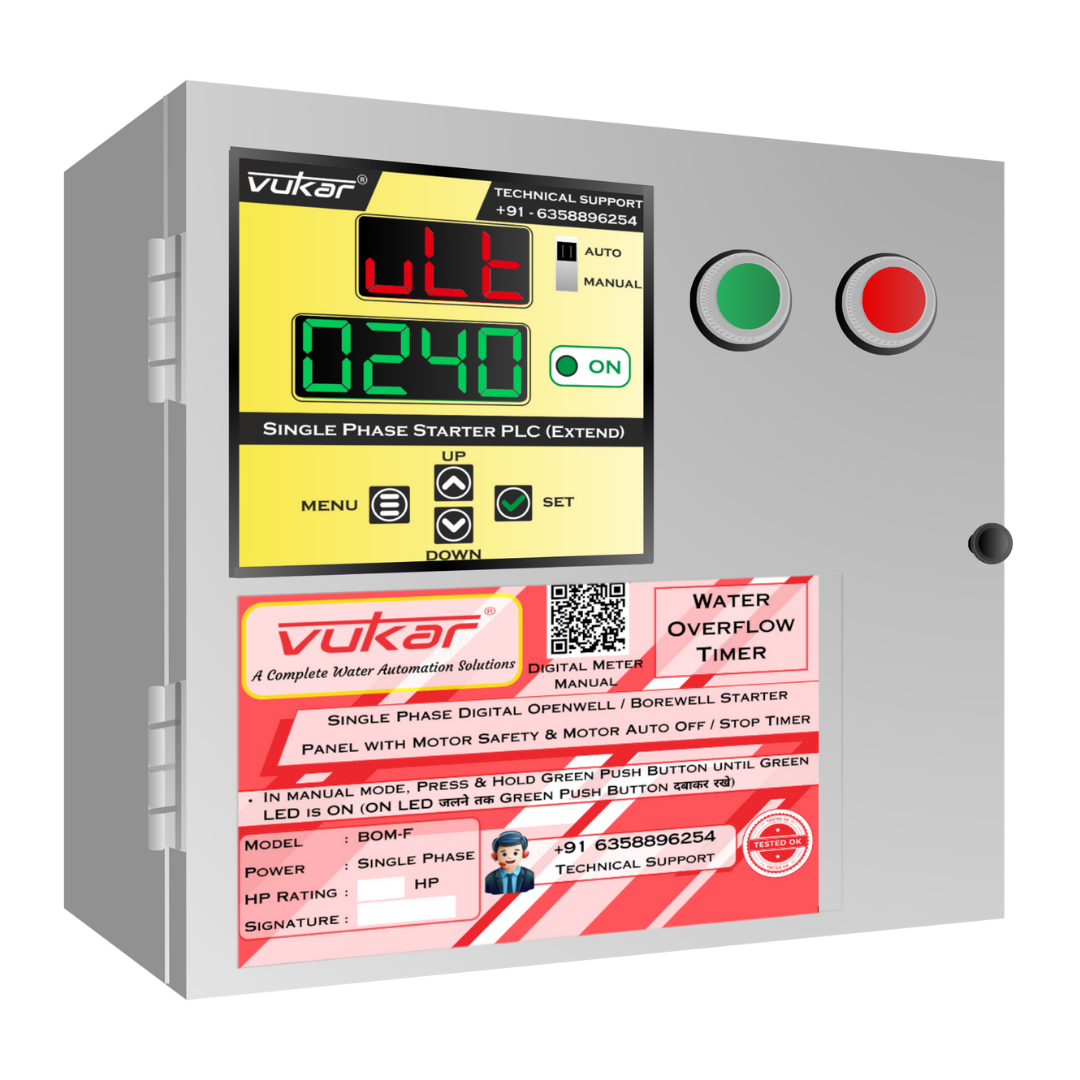

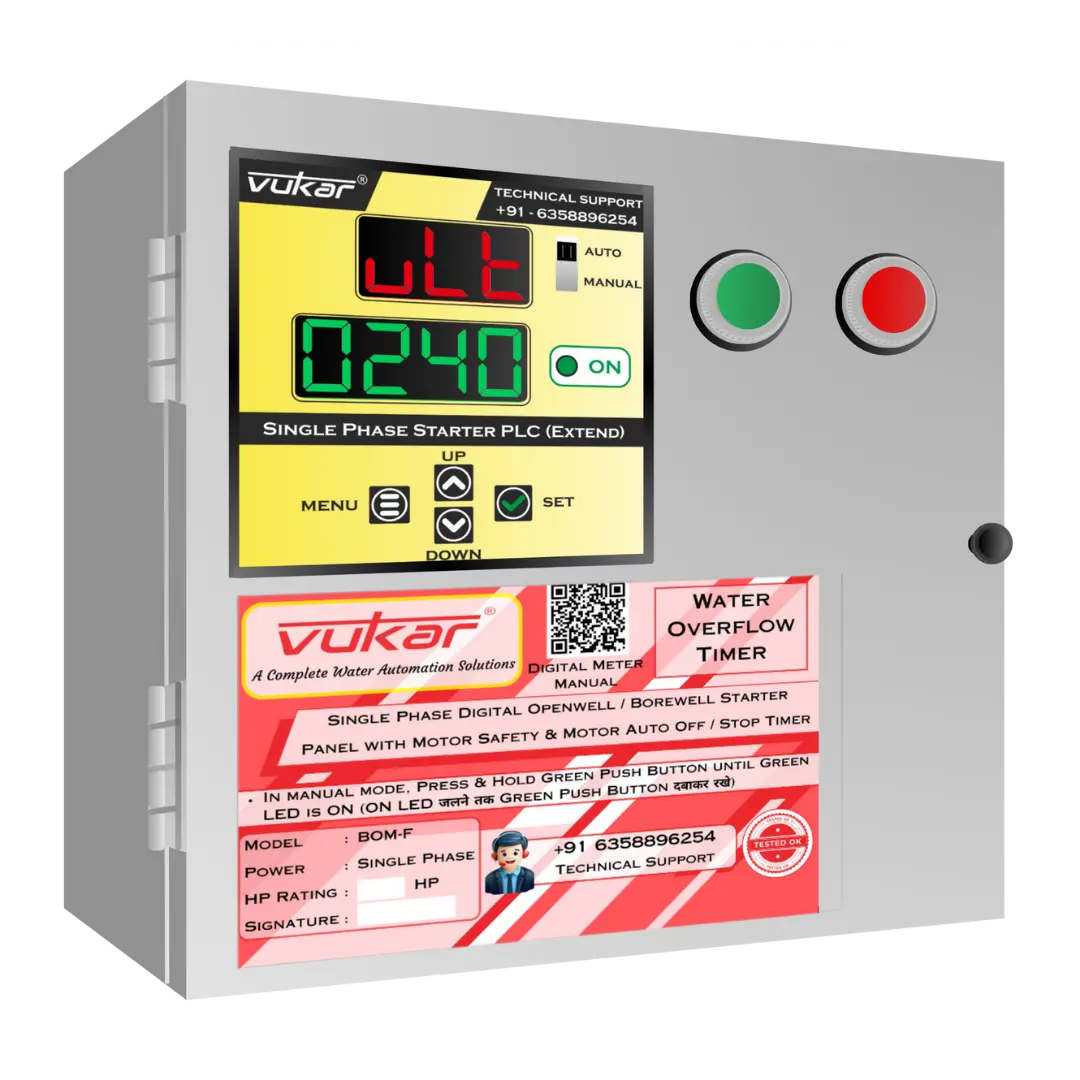

Single Phase Digital Openwell / Borewell Starter Panel with Motor Safety & Motor Auto Off / Stop Timer (BOM-F)

BOM-F is a single phase borewell/openwell motor starter panel for 0.5–3 HP pumps. Its defining function is auto-off stop timer. Select the exact HP variant only after matching the pump rating and operating current.

Who should choose BOM-F?

Choose BOM-F when you need a protected digital starter with a simple run-duration stop function, without an MCB or tank-level automation.

Model-specific functions

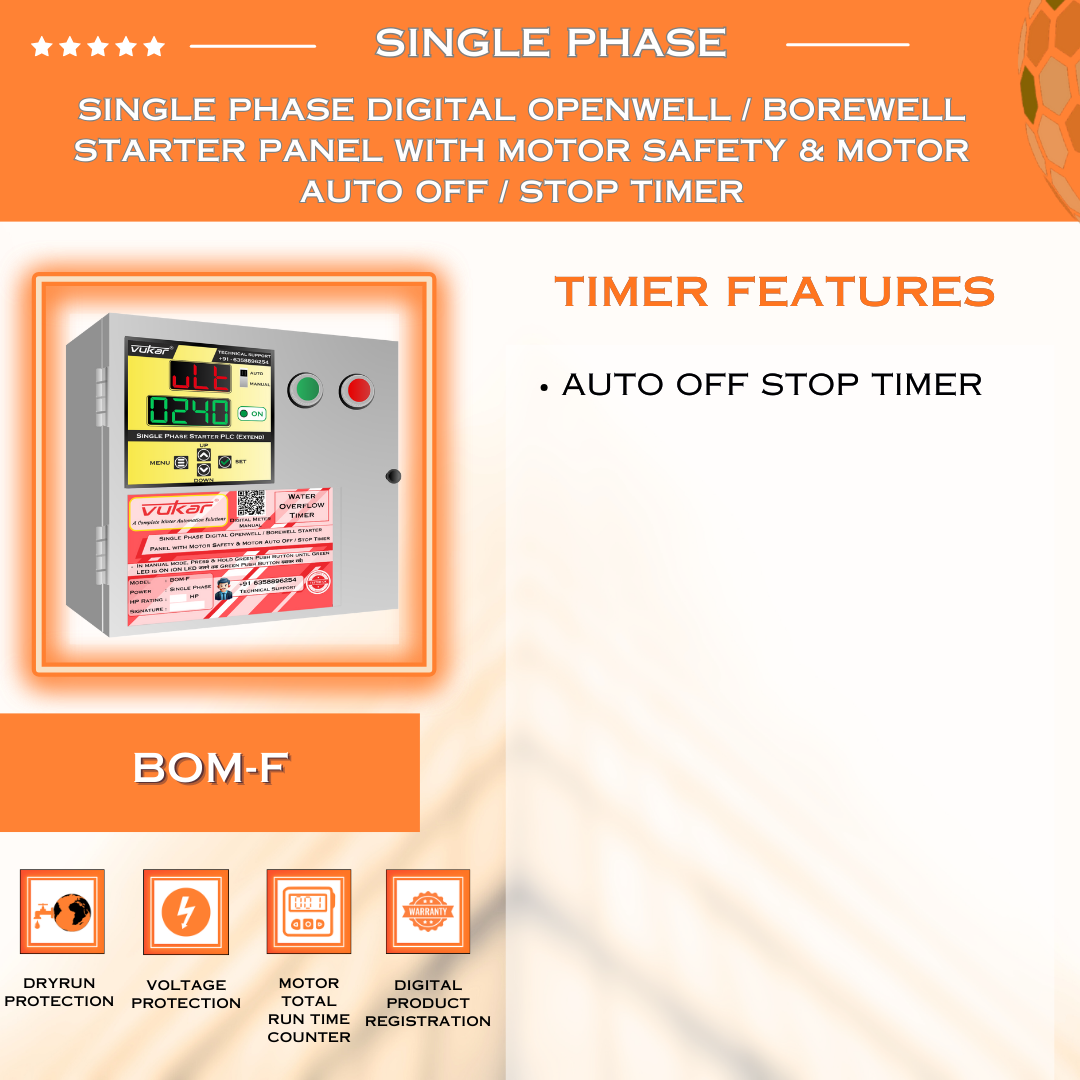

• Auto-Off Stop Timer stops the pump after the duration set on the panel.
• High-brightness dual display shows operating voltage and current.
• Digital fault indication, motor fault counter and total run-time counter support troubleshooting and maintenance.

Motor protection and monitoring

• Overvoltage and undervoltage protection disconnects the motor when supply voltage moves outside the configured limits.
• Overload and dry-run protection stops the pump when the configured current conditions indicate excess load or loss of water.
• Overload Safety Lockout, Power-On Auto-Start Timer and Programmable Dry-Run Auto-Restart Timer support controlled recovery after a fault or power interruption.
• Motor ON indication, fault display, fault counter and run-time counter provide operating information on the panel.

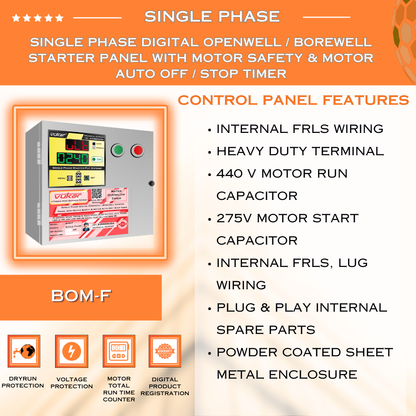

Product feature reference

Installation and selection

• Use only with a compatible single phase borewell or openwell pump within the selected 0.5–3 HP variant range.
• Match the variant to the pump nameplate HP and current; protection settings must be configured for the actual motor.

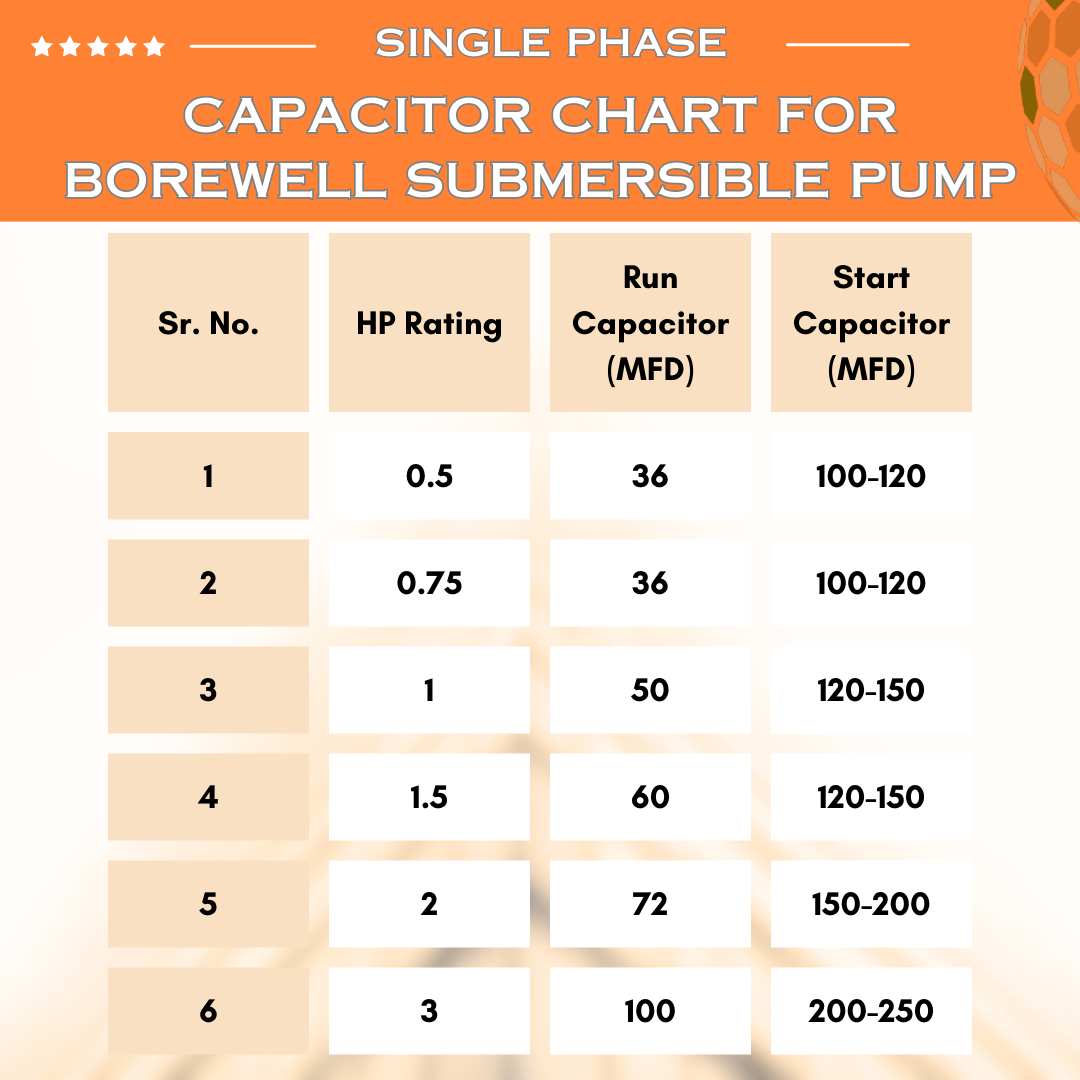

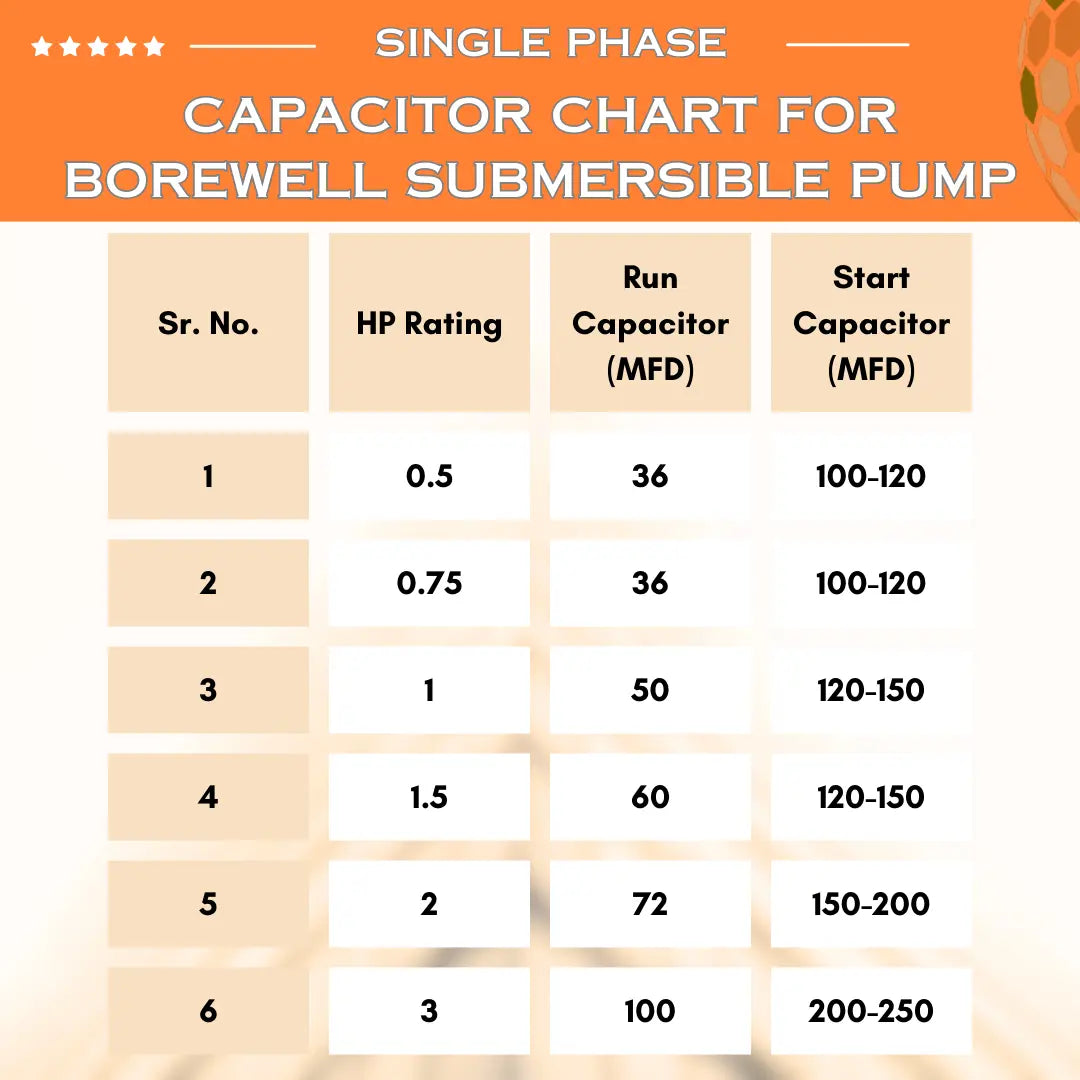

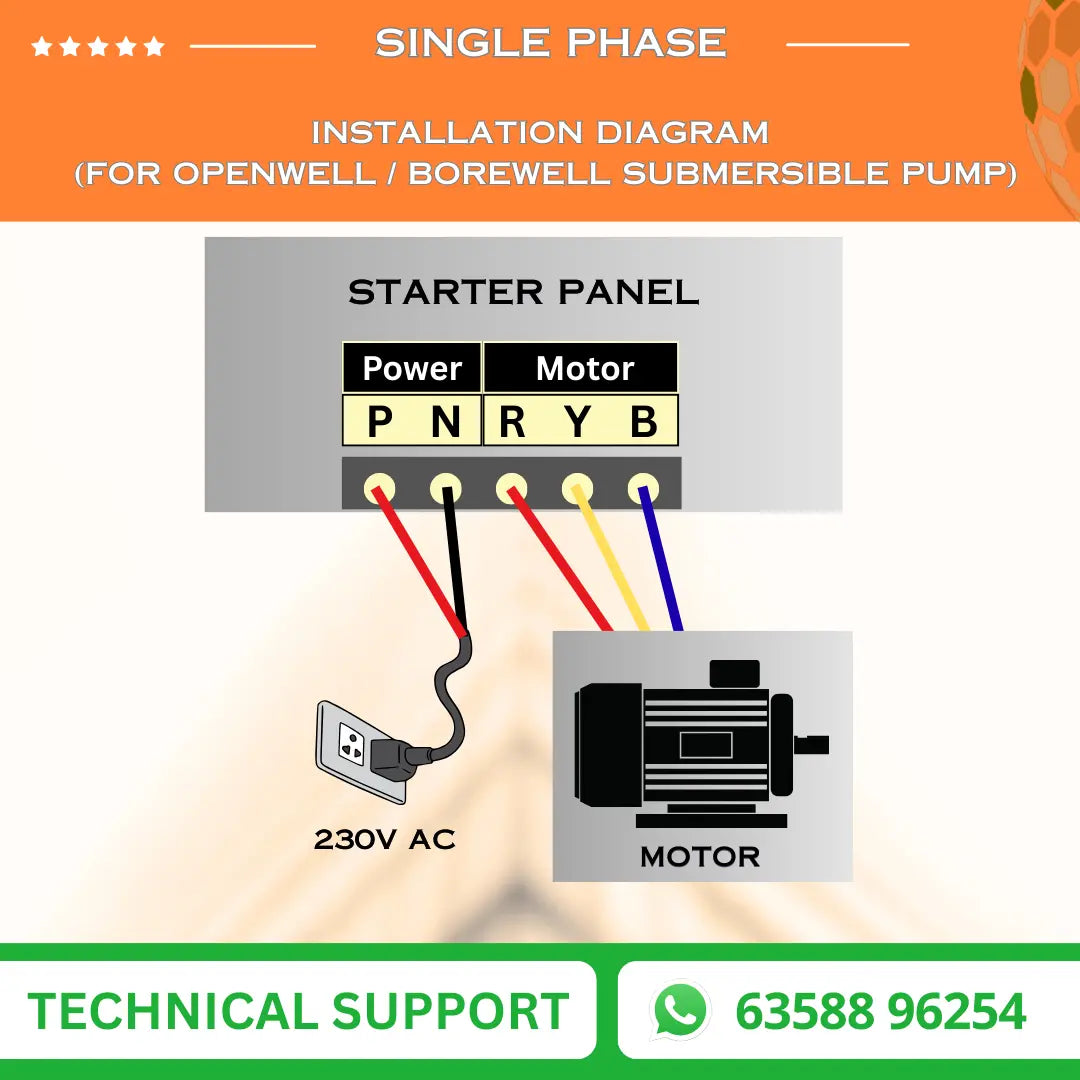

• Installation, earthing, capacitor connections and sensor wiring should be completed by a qualified electrician.

Warranty, delivery and support

• Warranty: 1 year when purchased from this website.
• Dispatch: 0–1 working day. Expected delivery: 1–5 working days from the order date across India.
• Shipping: free across India; no hidden or extra charge stated for the order.
• Technical support: WhatsApp or call +91 63588 96254.
• To order by phone, send your name, address, contact number, PIN code and model to +91 95121 72271.

Frequently asked questions

Does the panel work with every single phase pump?

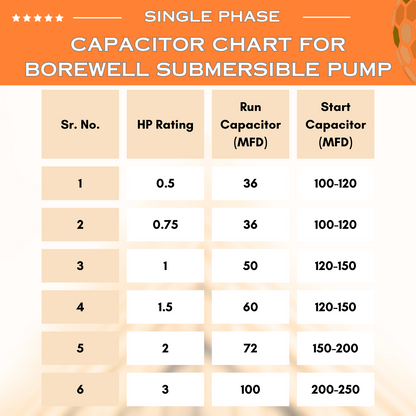

No. Choose the correct HP/current variant for the pump nameplate and verify wiring and capacitor requirements before installation.

Does BOM-F include automatic tank-level control?

No automatic tank-level control is claimed for this model.
