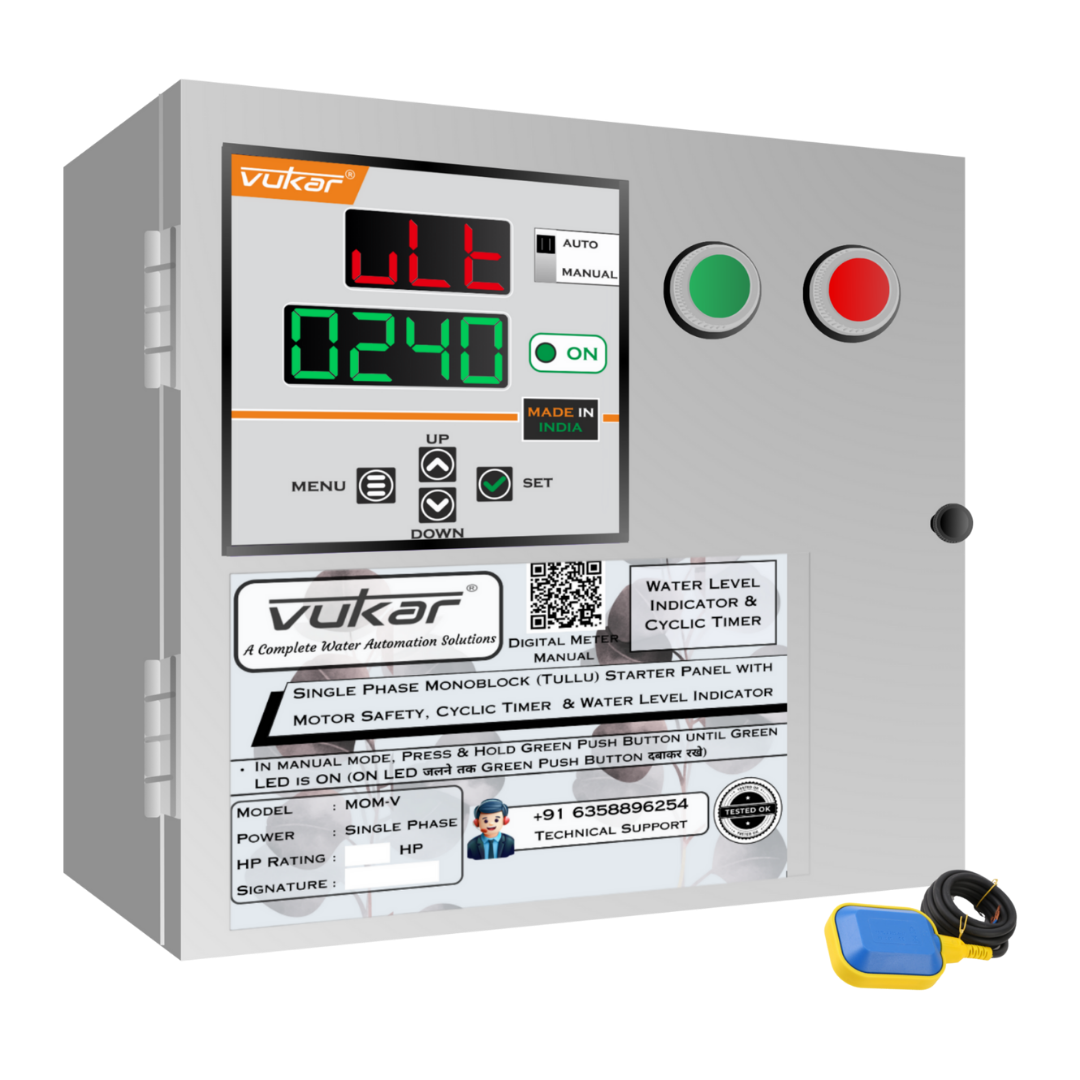

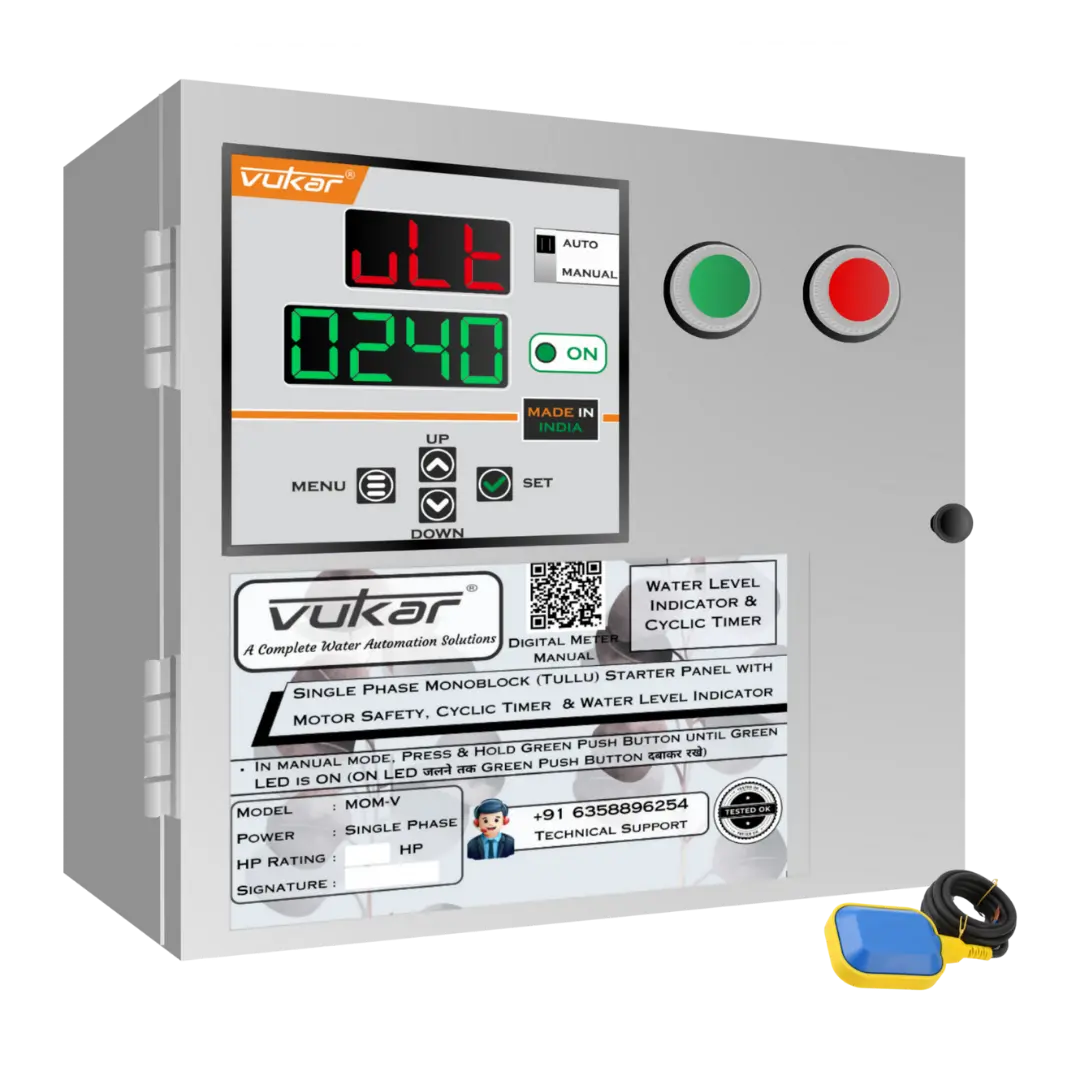

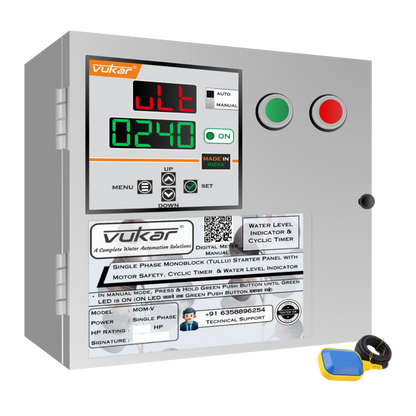

MOM-V Single Phase Monoblock Pump Starter with Water Level Indicator

MOM-V Single Phase Monoblock Pump Starter with Water Level Indicator is designed for 0.5–3 HP single phase monoblock (Tullu) pump variants. It combines pump operation controls with dry-run, overload and voltage protection.

Which application is this model for?

Choose this model when you need tank-level visibility without automatic tank-filling control. MOM-V shows tank status; it is not an automatic Water Level Controller.

What makes MOM-V different?

MOM-V is the monitoring model: the Water Level Indicator shows tank status from the cable float switch, but it does not start and stop the pump by tank level. It includes Cyclic Timer and motor protection, without MCB or Clock Timer. Choose MOA-B instead if automatic tank filling is required.

MOM-V HP variants and SKUs

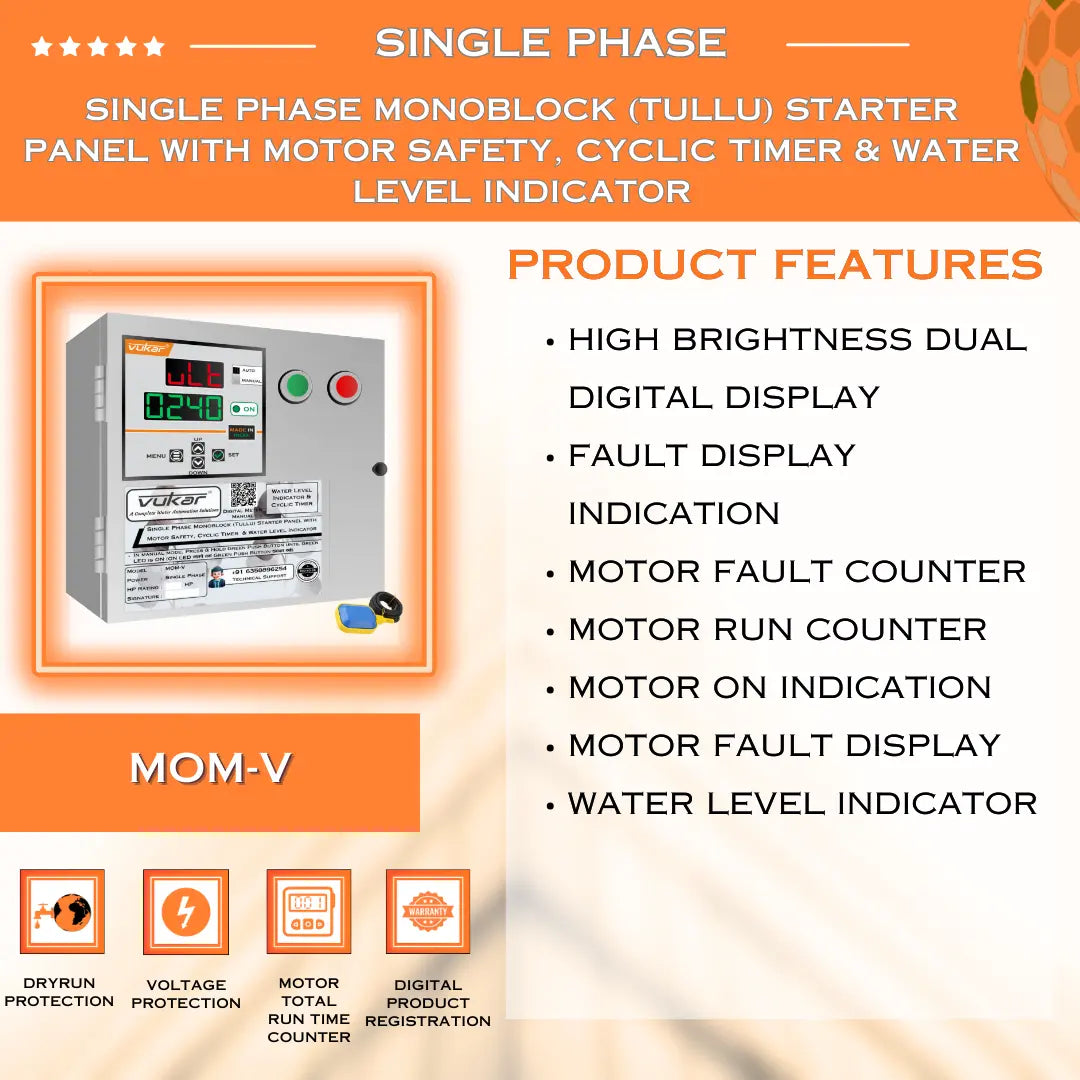

Key functions

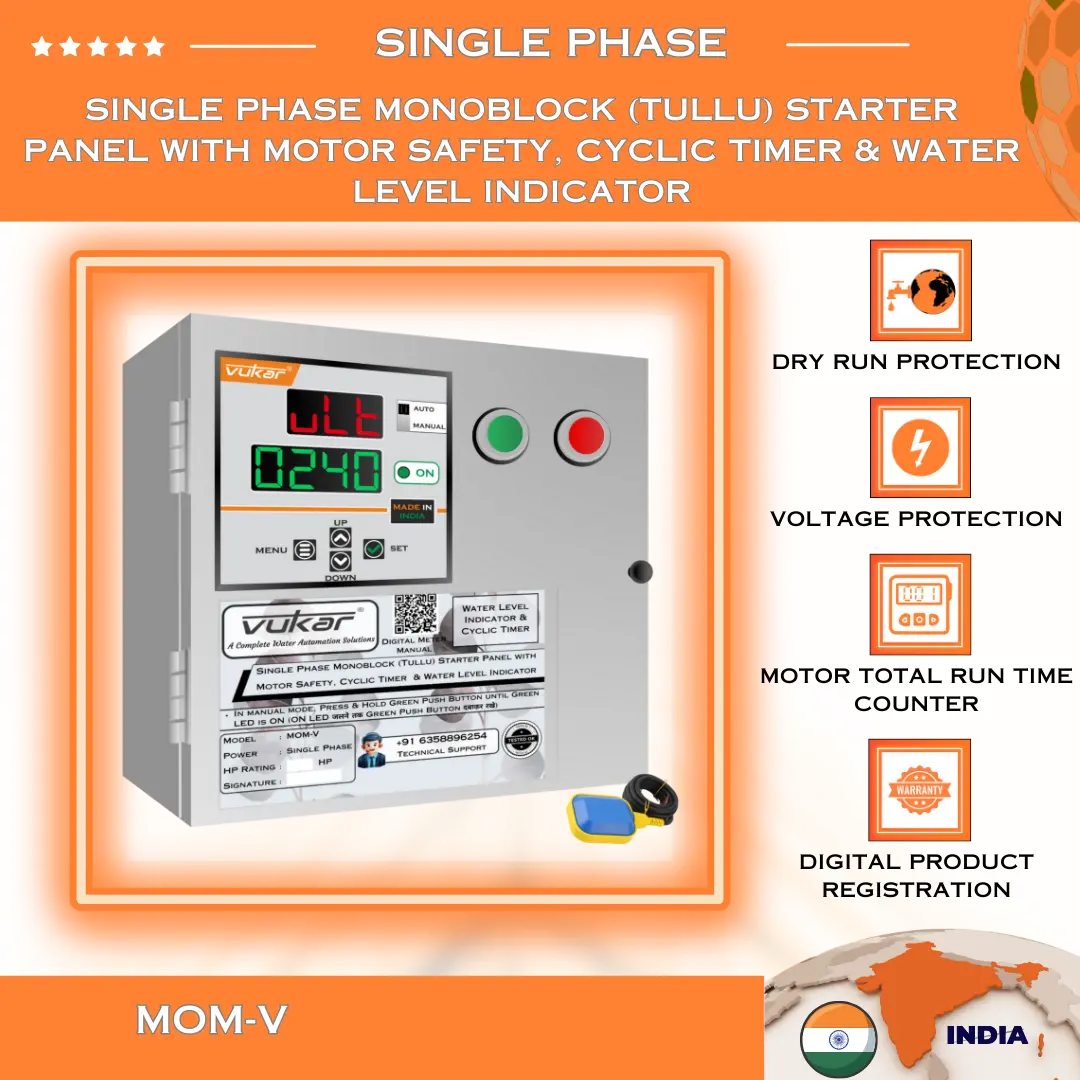

• Motor monitoring: dual digital display for voltage and current, plus motor-on and fault indications for troubleshooting.
• Motor records: fault counter and total run-time counter to support maintenance tracking.
• Water Level Indicator: shows tank status from the supplied cable float switch. An indicator model does not automatically control tank filling unless a Water Level Controller is also included.

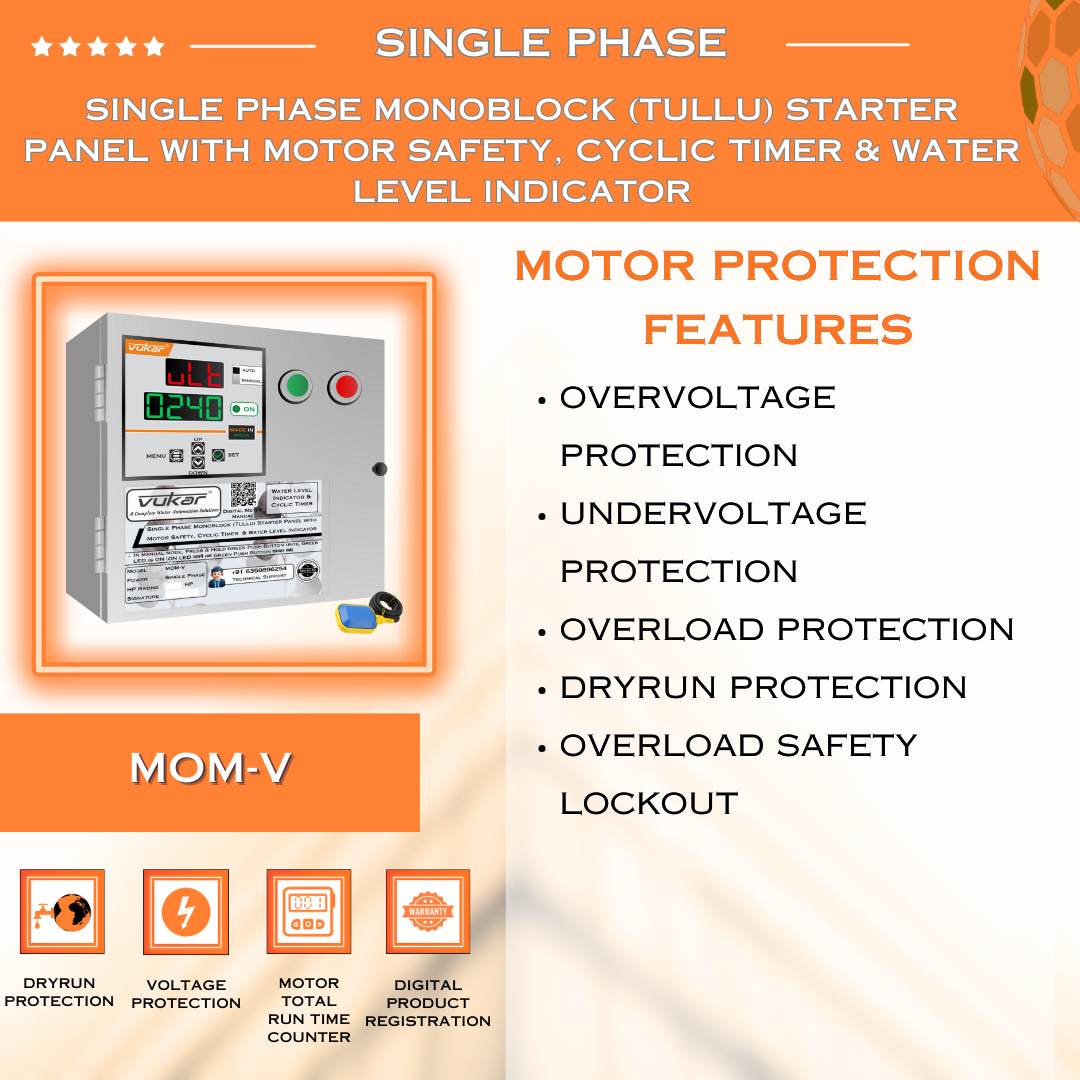

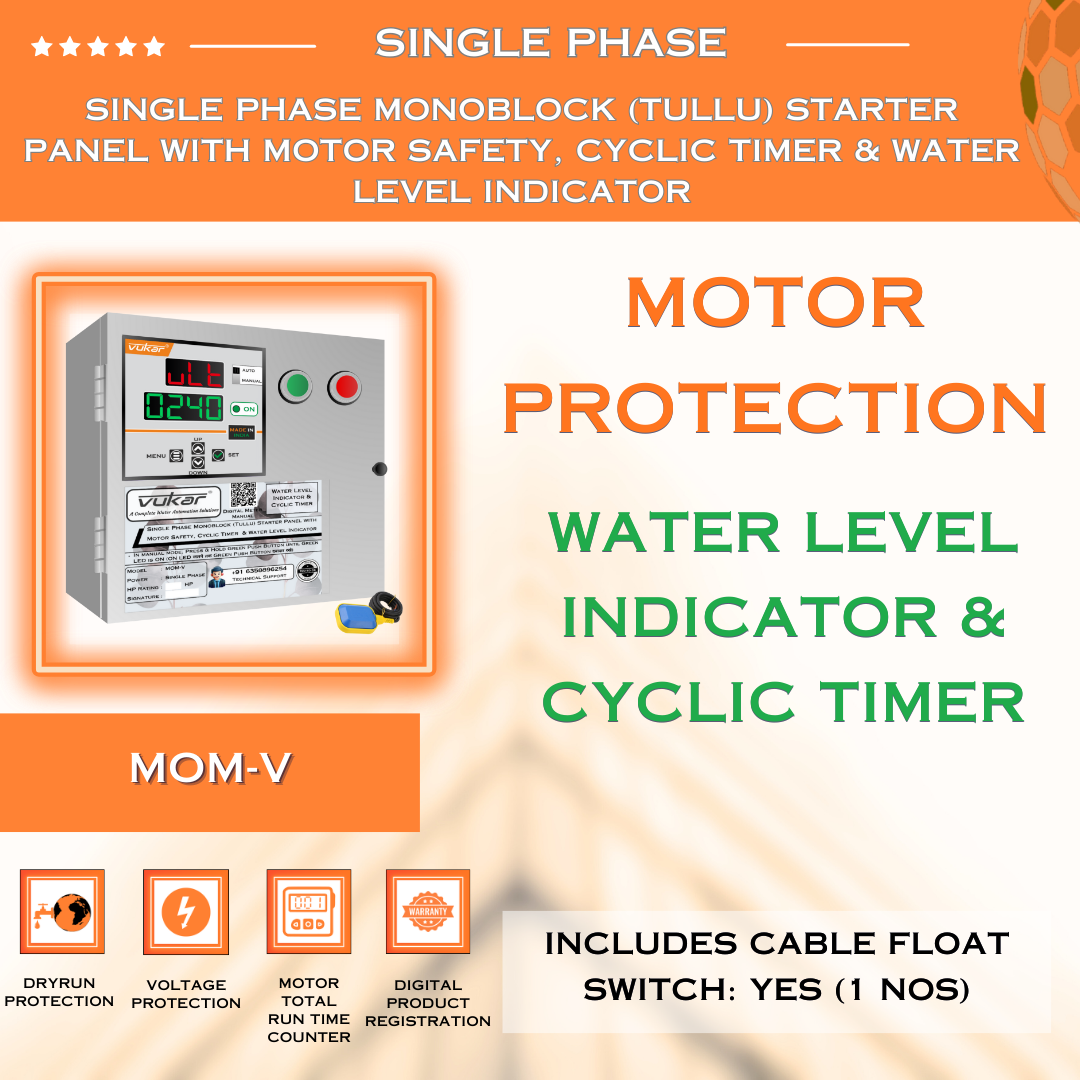

• Motor protection: overvoltage, undervoltage, overload and dry-run protection; check settings and the water source after a trip.

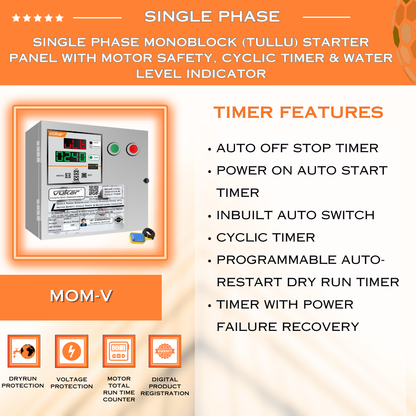

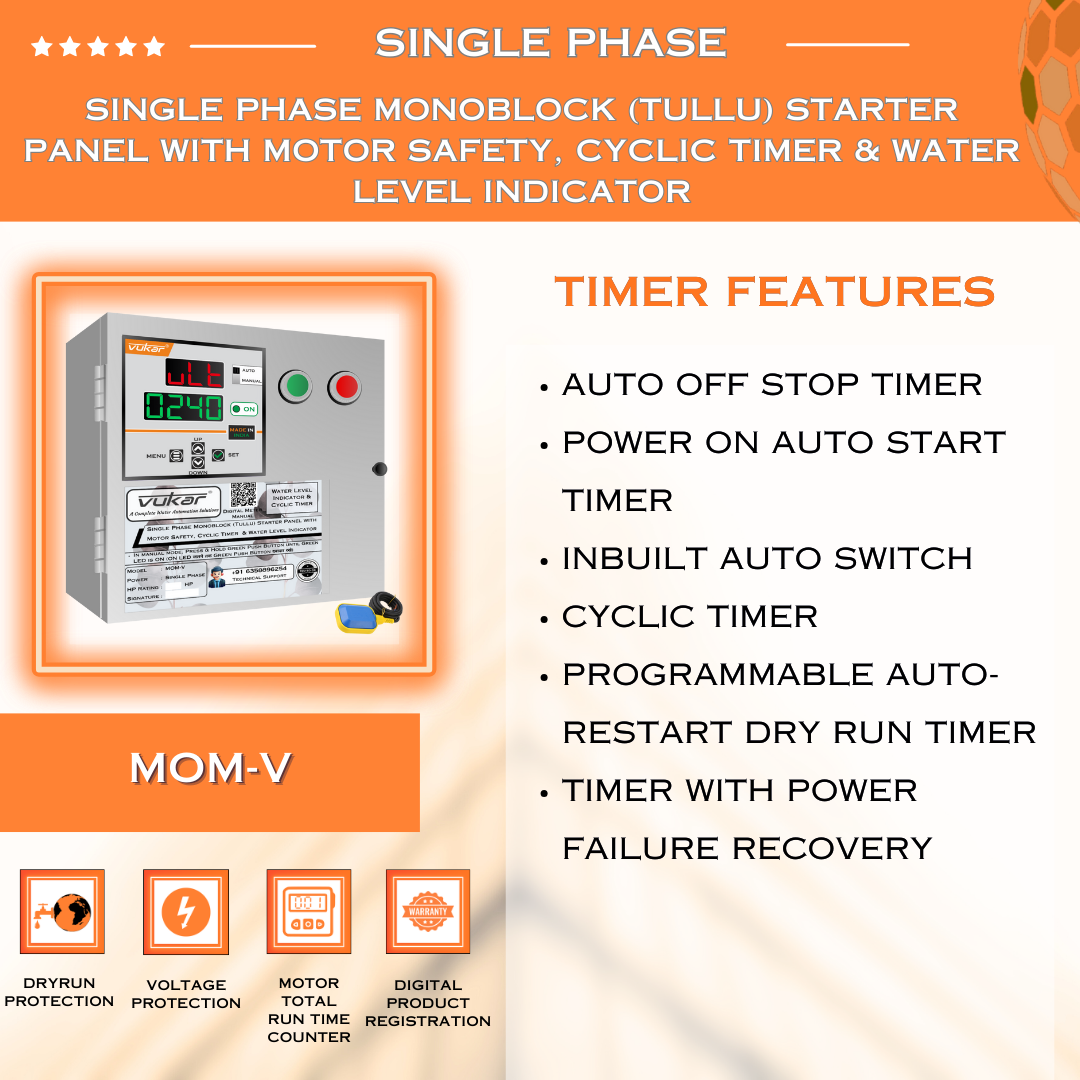

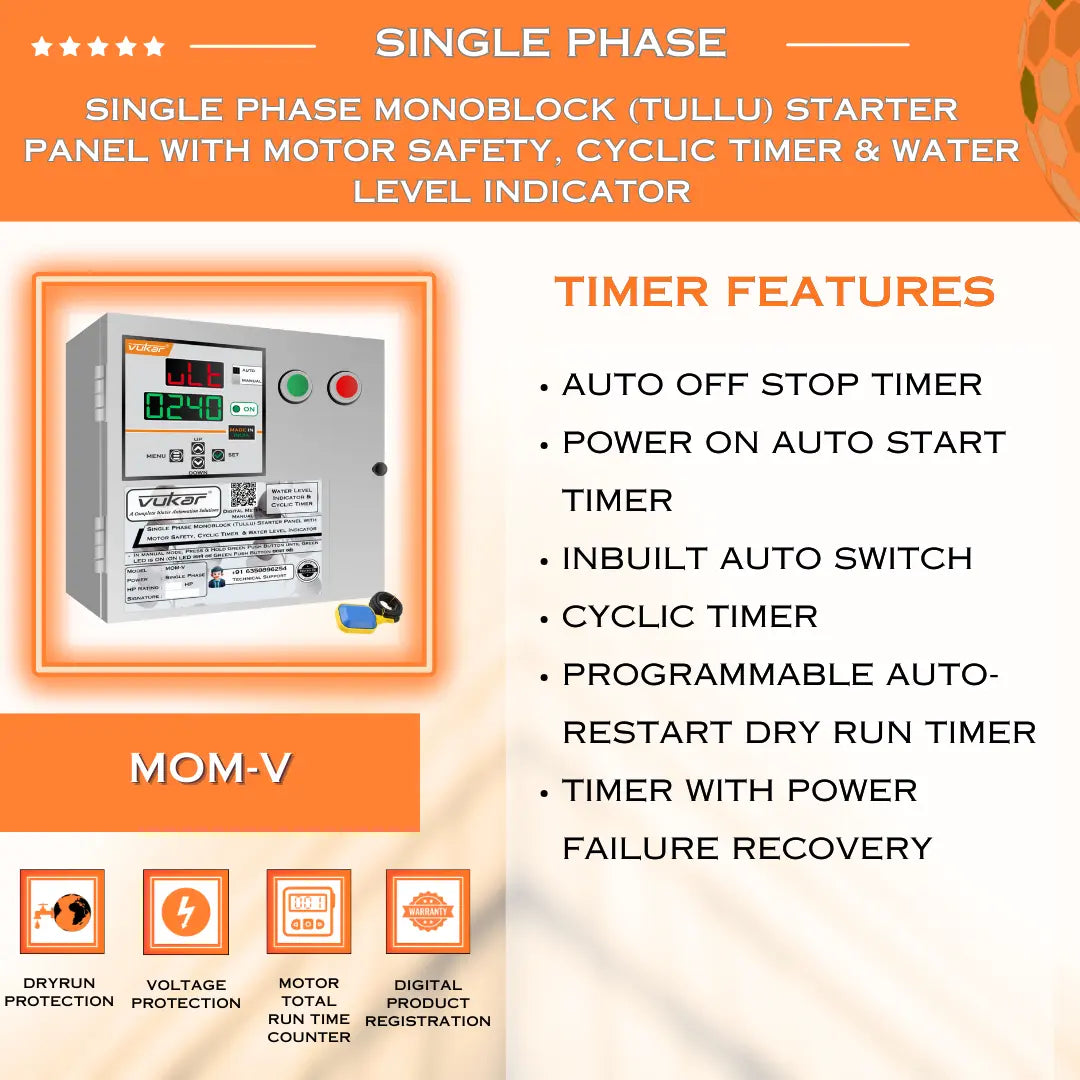

• Timer control: Cyclic Timer for repeating on/off cycles and Auto-Off Stop Timer for limiting a selected run duration.
• Auto Switch: manages pump operation according to the configured settings when healthy supply returns.
• Restart control: Power-On Auto-Start delay and programmable dry-run retry to manage restart timing after supply or water-source recovery.
• Construction: powder-coated metal enclosure, FRLS internal wiring and a serviceable terminal layout.

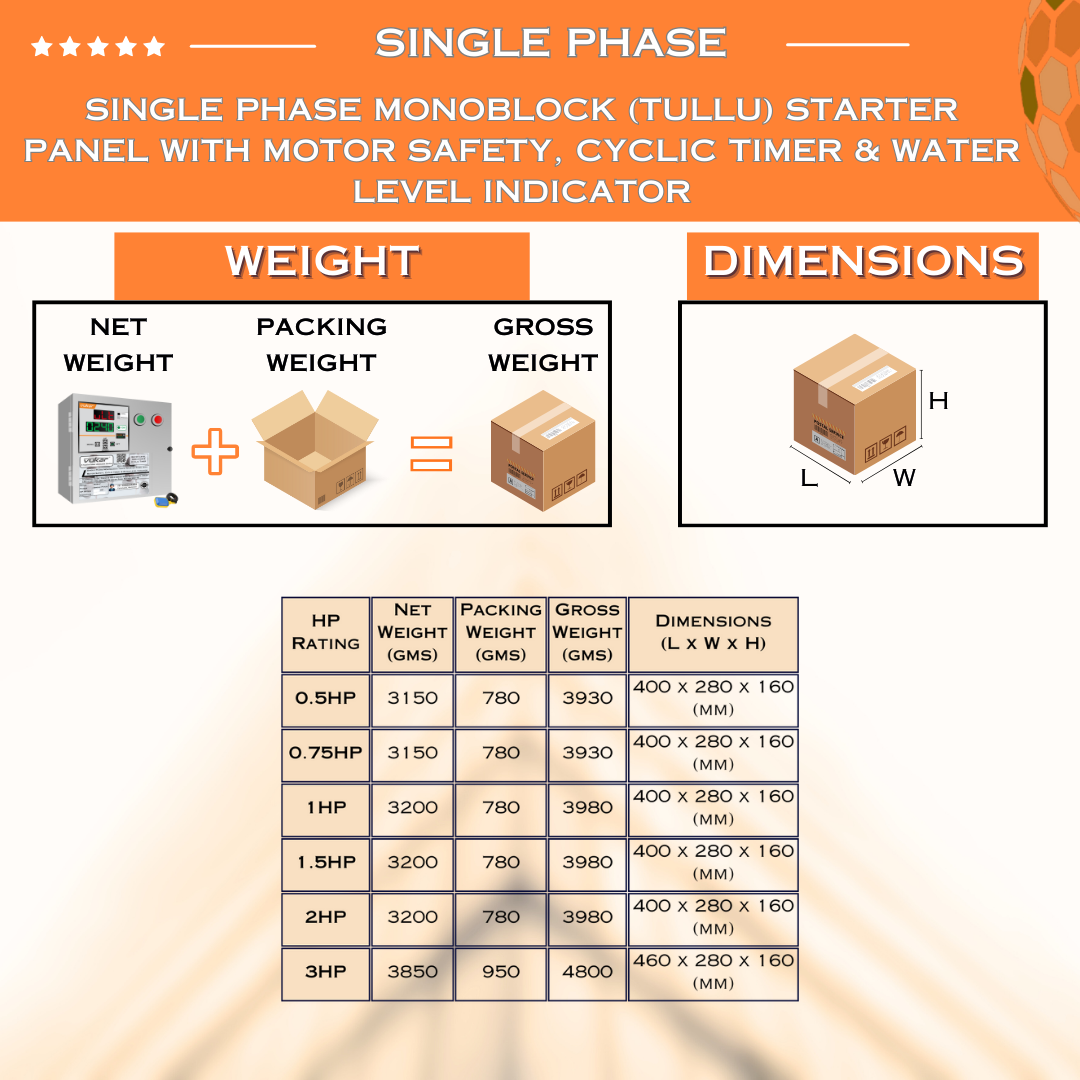

Choose the correct HP variant

Options are available for 0.5, 0.75, 1, 1.5, 2 and 3 HP pumps. Match the selected variant to the pump nameplate. Before ordering, confirm the power supply, full-load current, cable size and starter settings with a qualified electrician.

Installation and operating notes

• Install the panel in a dry, ventilated location and provide proper earthing.
• Set voltage, current, dry-run and timer parameters for the connected pump; factory/default values may not suit every installation.

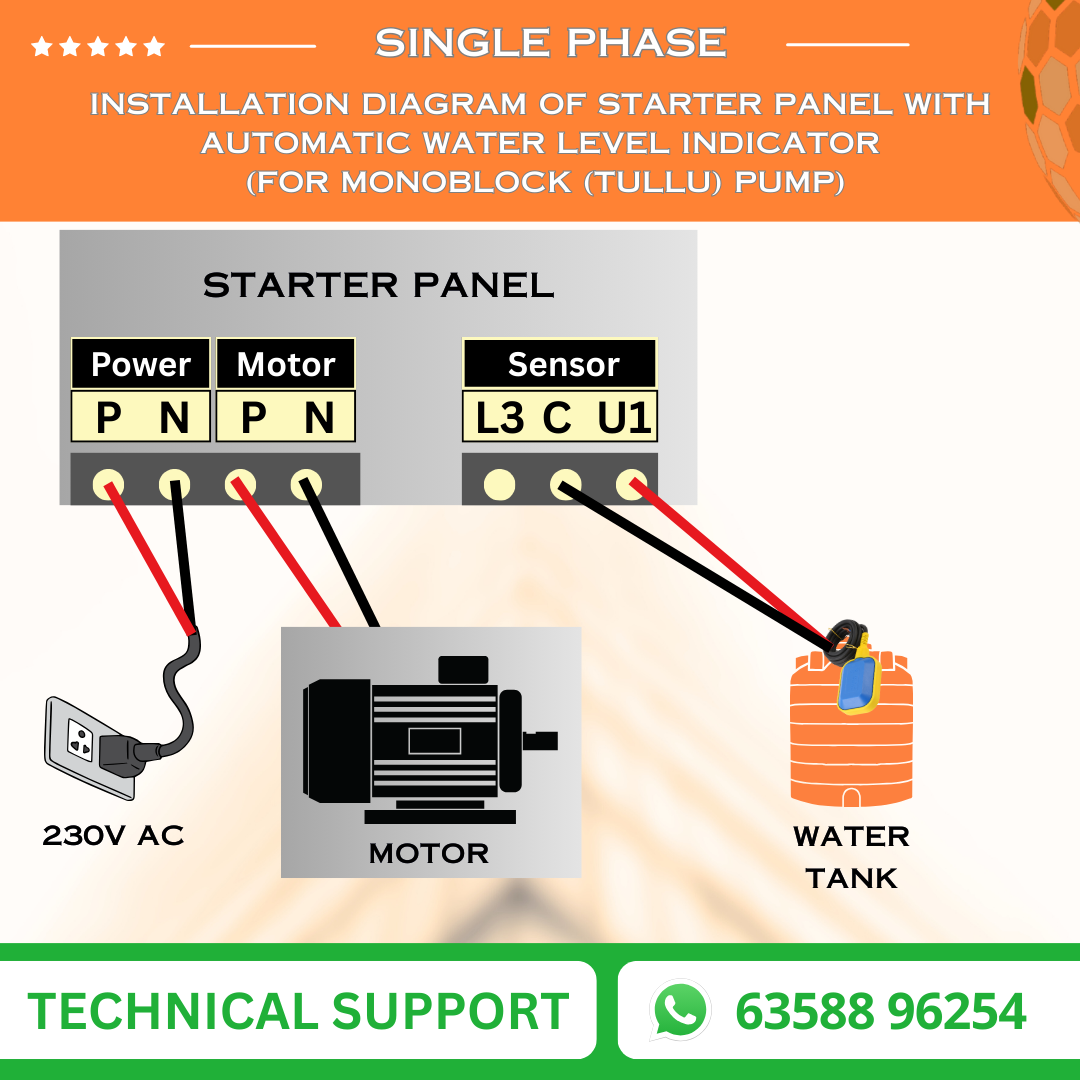

• Water-level functions depend on correct float-switch placement and wiring.
• After a protection trip, identify and correct the cause before restarting the pump.

Warranty, dispatch and support

• 1-year product warranty when purchased from this website.
• Orders are dispatched within 0–1 working day; expected delivery is 1–5 working days from the order date across India.
• Free shipping across India.
• Technical support by WhatsApp or call: +91 63588 96254.

Compare related starter panels

• Compare all single phase monoblock (Tullu) starter panel models
• Compare single phase openwell starter panel models
• View the VUKAR starter-panel comparison and price list

Product images and feature guides

Frequently asked questions

Does this panel suit every 0.5–3 HP pump?

Select the matching HP variant and verify the pump nameplate, current, wiring and settings before installation.

Is professional installation required?

Yes. A qualified electrician should complete wiring, earthing, protection settings and commissioning.

Does this model automatically control tank filling?

No. This model does not include automatic Water Level Controller operation.
