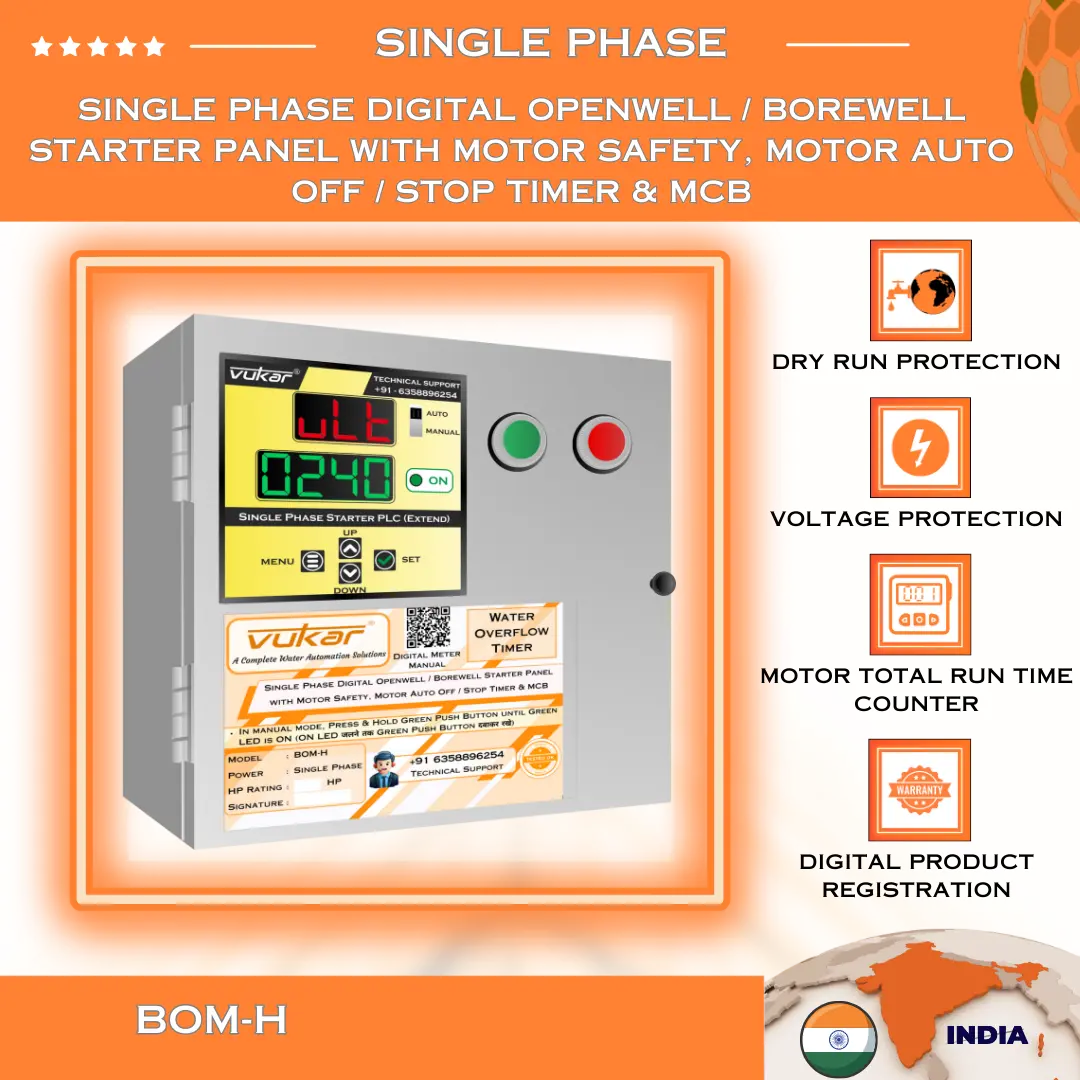

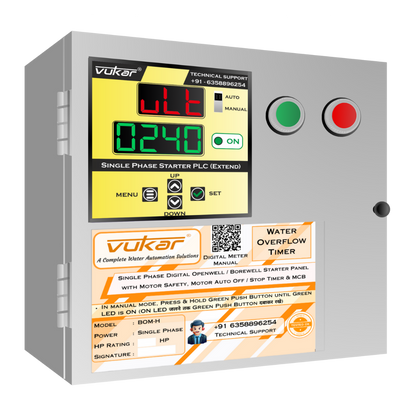

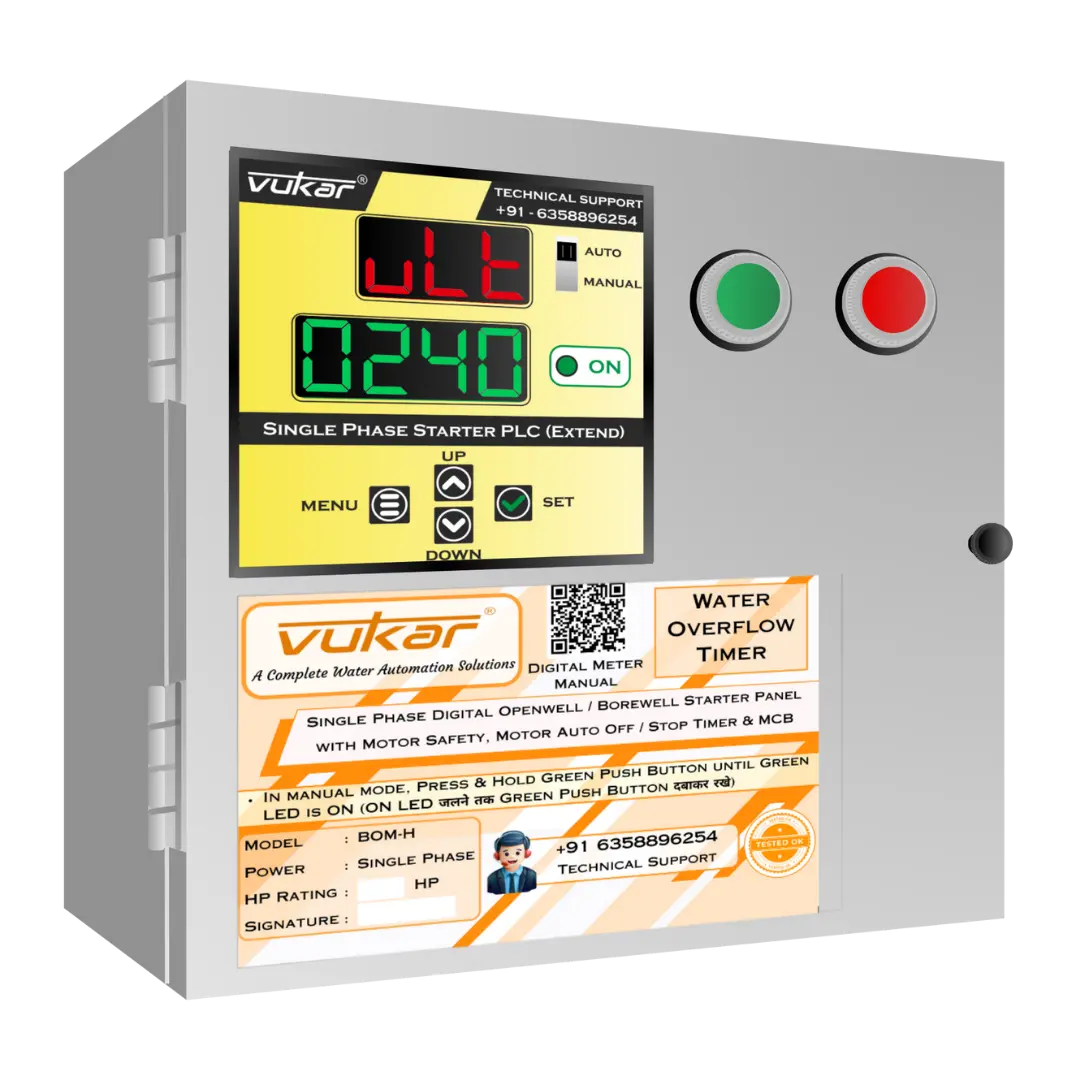

Single Phase Digital Openwell / Borewell Starter Panel with Motor Safety, Motor Auto Off / Stop Timer & MCB (BOM-H)

BOM-H is a single phase borewell/openwell motor starter panel for 0.5–3 HP pumps. Its defining function is auto-off stop timer and inbuilt MCB. Select the exact HP variant only after matching the pump rating and operating current.

VUKAR BOM-H comes from pump control manufacturer Vukar Automation in Rajkot. Use the BOM-H code when requesting product support.

Who should choose BOM-H?

Choose BOM-H for a protected single phase borewell or openwell starter with an auto-off stop timer and an inbuilt MCB for short-circuit protection of the panel circuit.

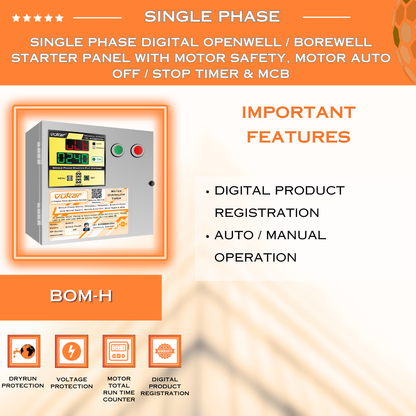

Model-specific functions

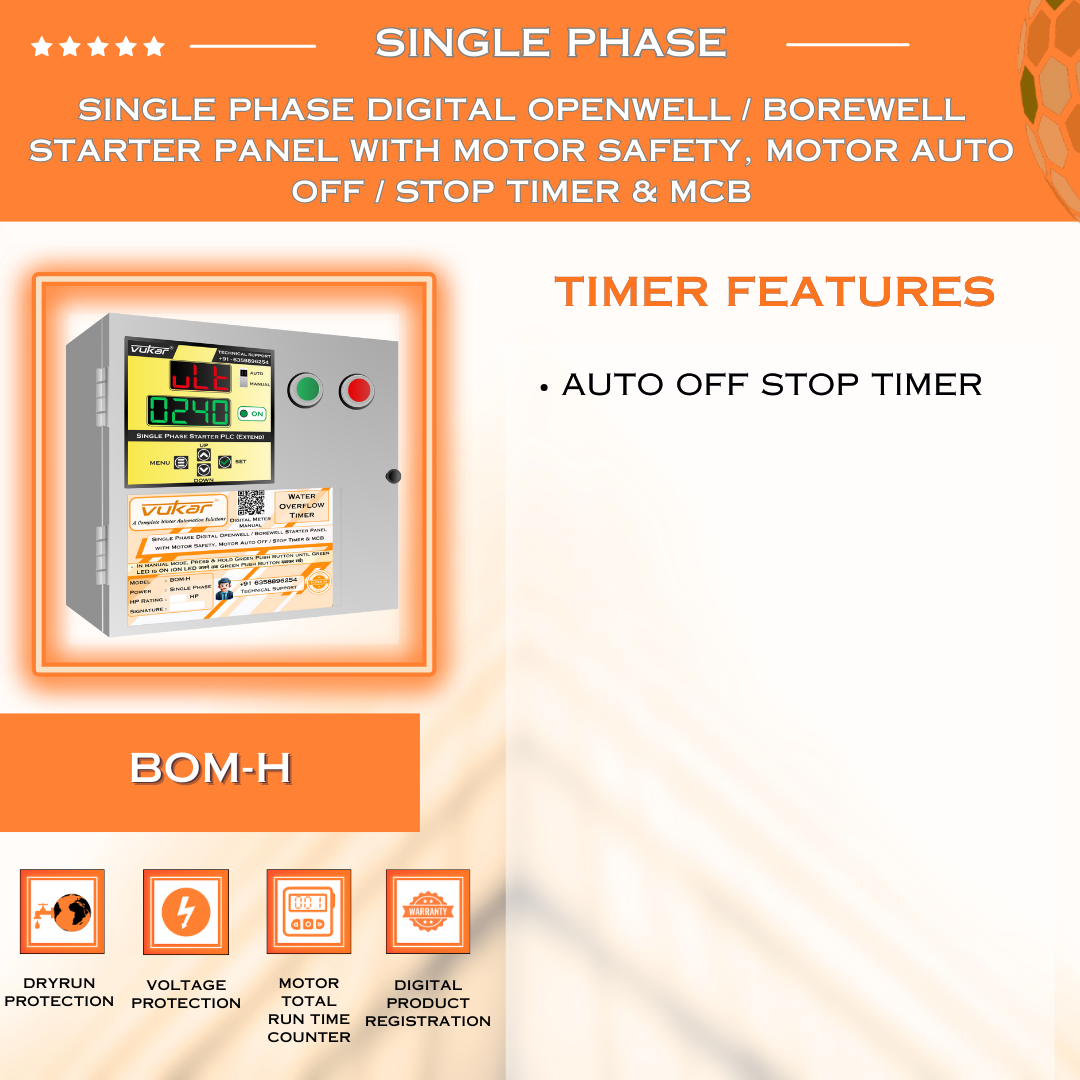

• Auto-Off Stop Timer stops the pump after the duration set on the panel.

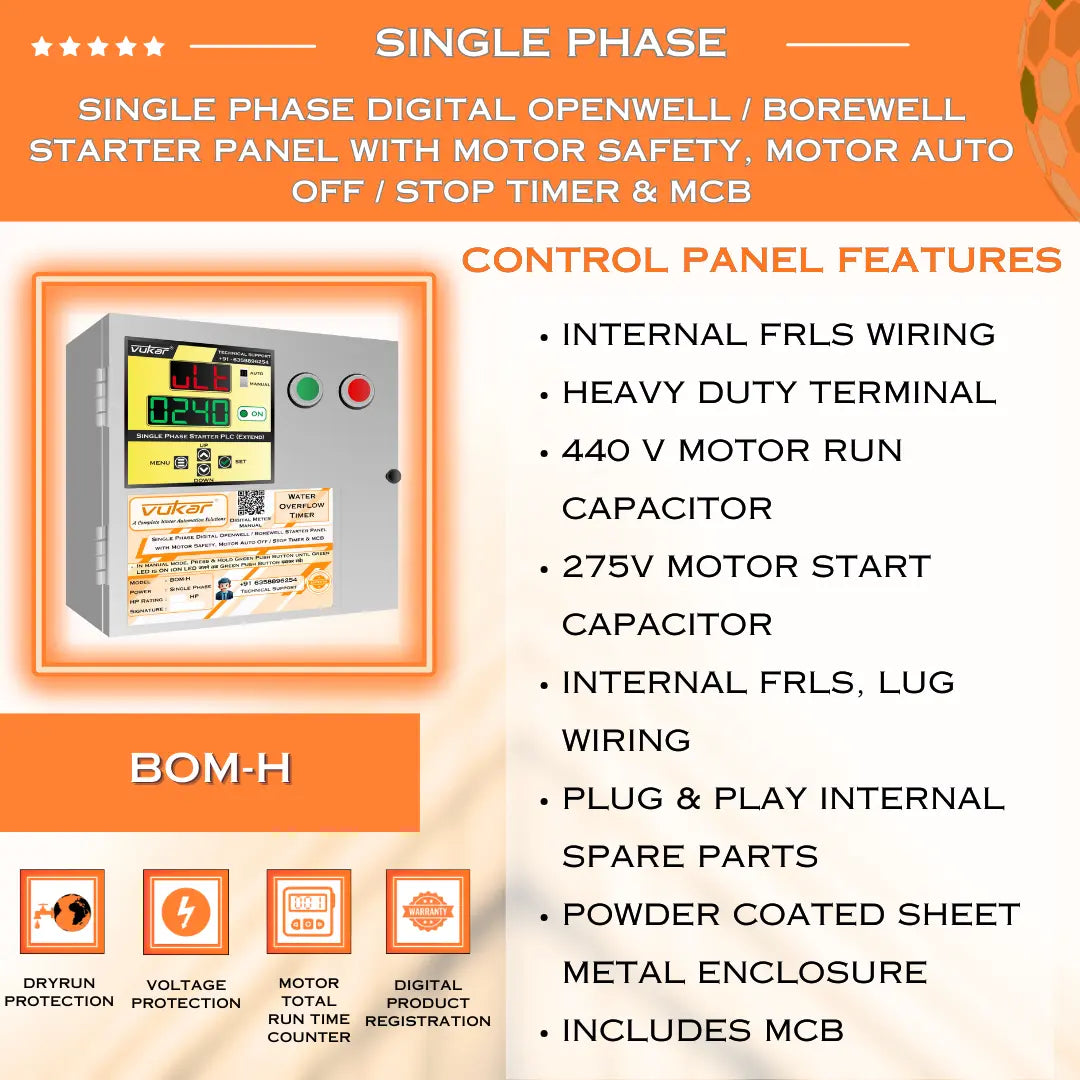

• Inbuilt MCB provides short-circuit protection for the panel circuit.
• High-brightness dual display and fault counters help monitor operation.

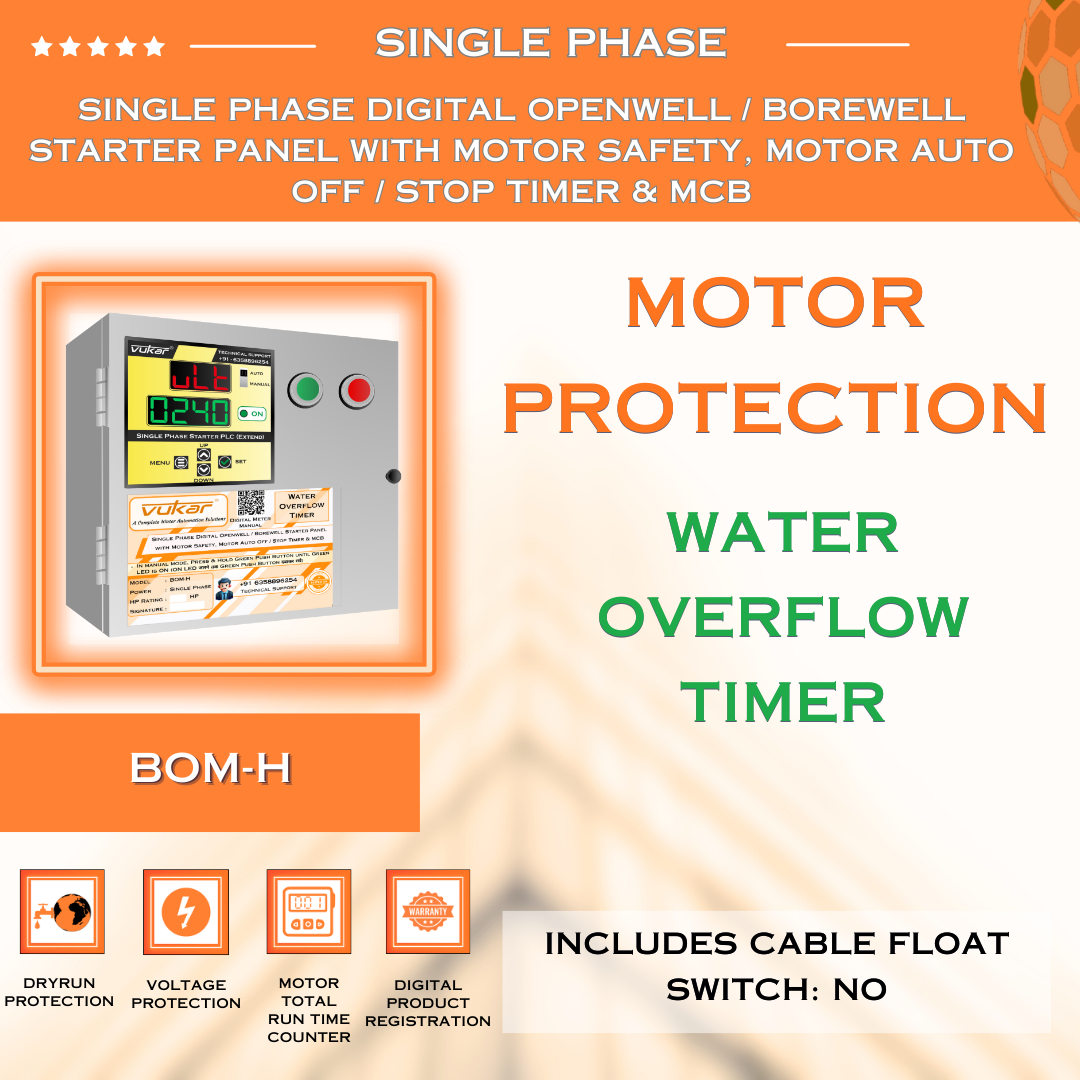

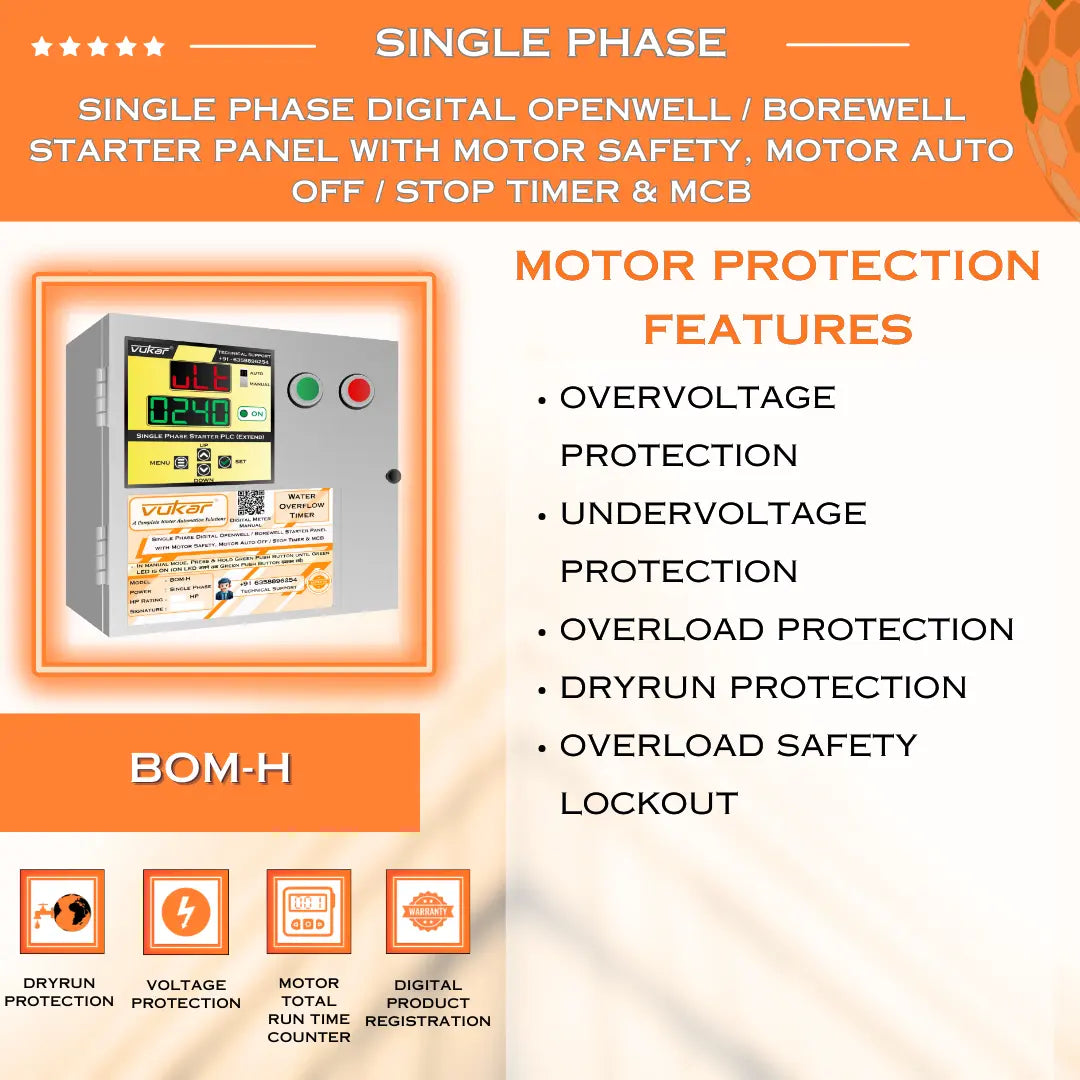

Motor protection and monitoring

• Overvoltage and undervoltage protection disconnects the motor when supply voltage moves outside the configured limits.
• Overload and dry-run protection stops the pump when the configured current conditions indicate excess load or loss of water.
• Overload Safety Lockout, Power-On Auto-Start Timer and Programmable Dry-Run Auto-Restart Timer support controlled recovery after a fault or power interruption.
• Motor ON indication, fault display, fault counter and run-time counter provide operating information on the panel.

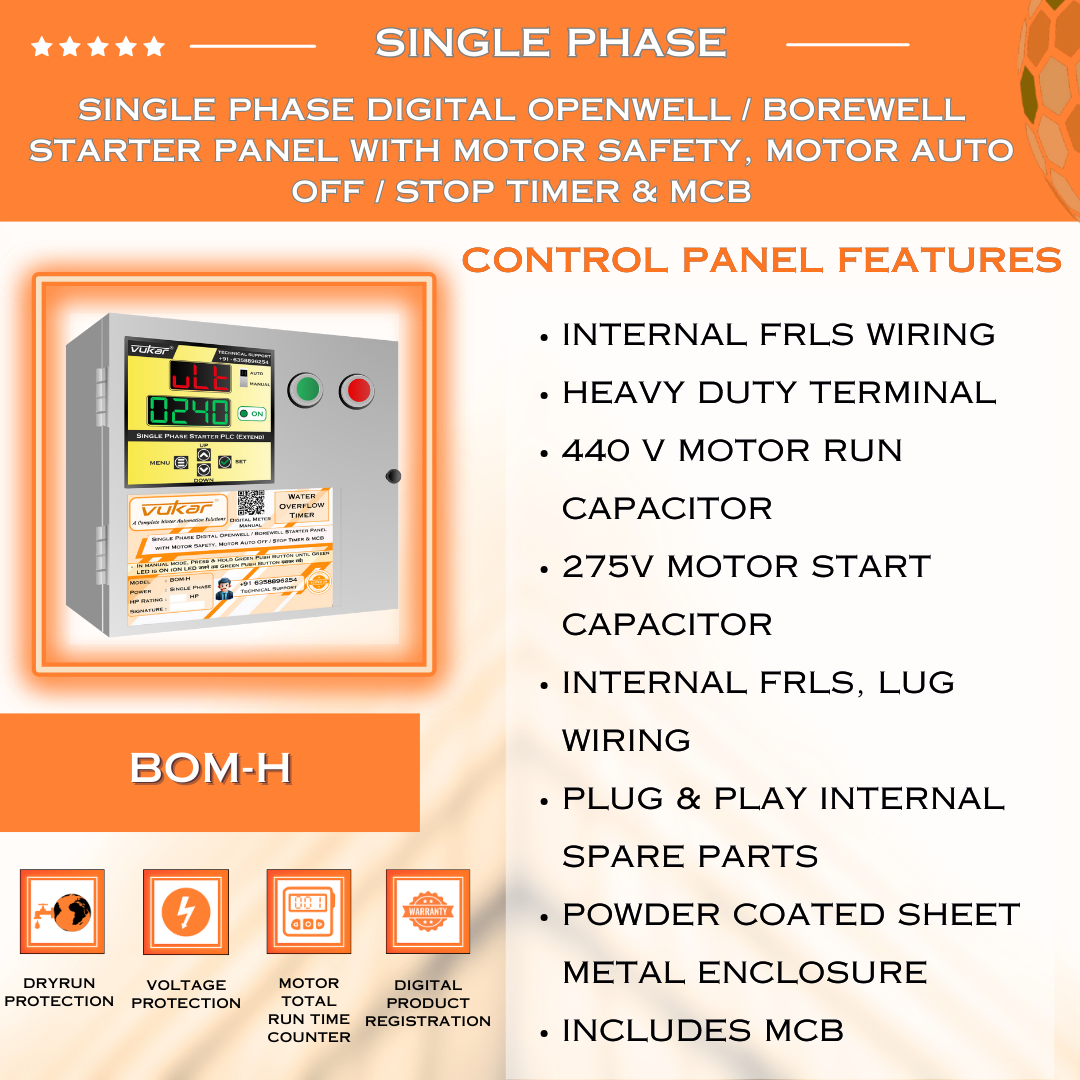

Product feature reference

Protection and control features

Timing and automatic control

Installation and ownership

Installation and selection

• Use only with a compatible single phase borewell or openwell pump within the selected 0.5–3 HP variant range.
• Match the variant to the pump nameplate HP and current; protection settings must be configured for the actual motor.

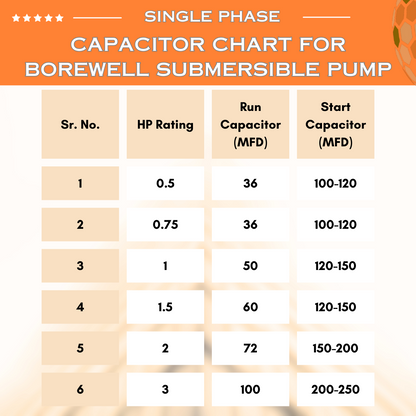

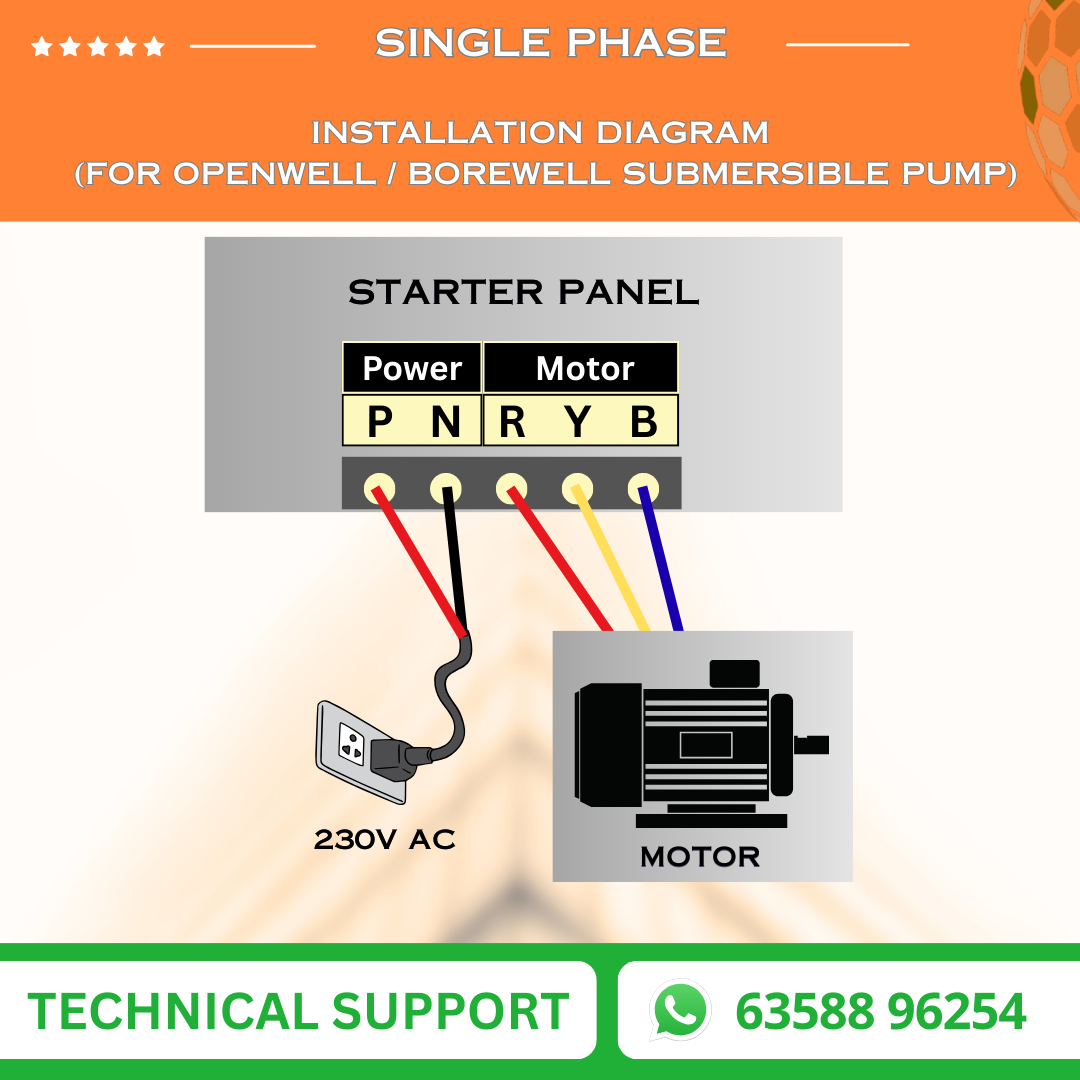

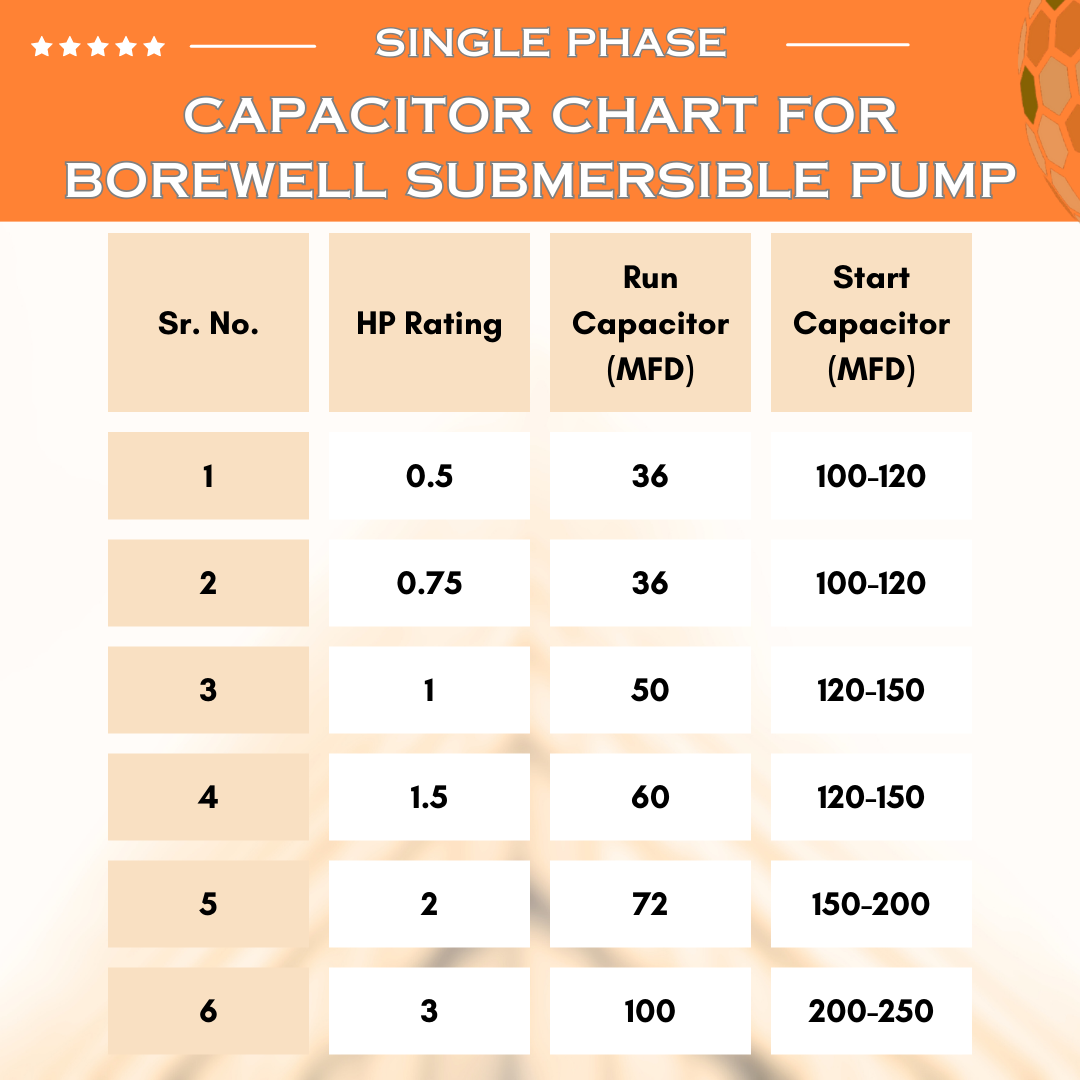

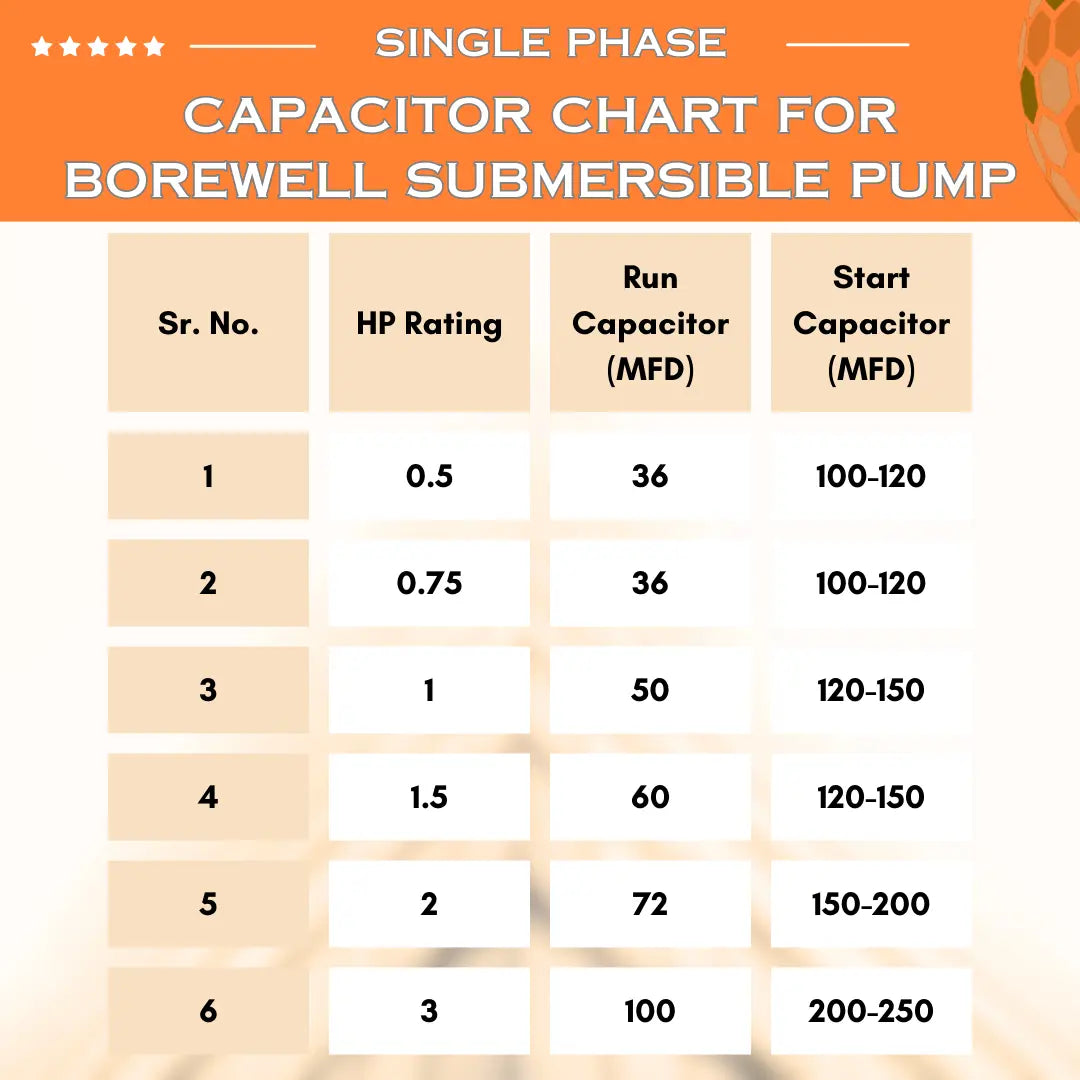

• Installation, earthing, capacitor connections and sensor wiring should be completed by a qualified electrician.

Warranty, delivery and support

• Warranty: 1 year when purchased from this website.
• Dispatch: 0–1 working day. Expected delivery: 1–5 working days from the order date across India.
• Shipping: free across India.
• Technical support: WhatsApp or call +91 63588 96254.
• To order by phone, send your name, address, contact number, PIN code and model to +91 95121 72271.

Frequently asked questions

Which pumps does BOM-H suit?

Select the matching 0.5–3 HP variant for a single phase borewell or openwell pump. Match the pump nameplate HP and current, and have a qualified electrician verify the wiring and capacitor requirements before installation.

Does BOM-H include automatic tank-level control?

No automatic tank-level control is claimed for this model.
