Three Phase Digital Motor Starter Panel: Selection Guide
Mohit VekariaShare

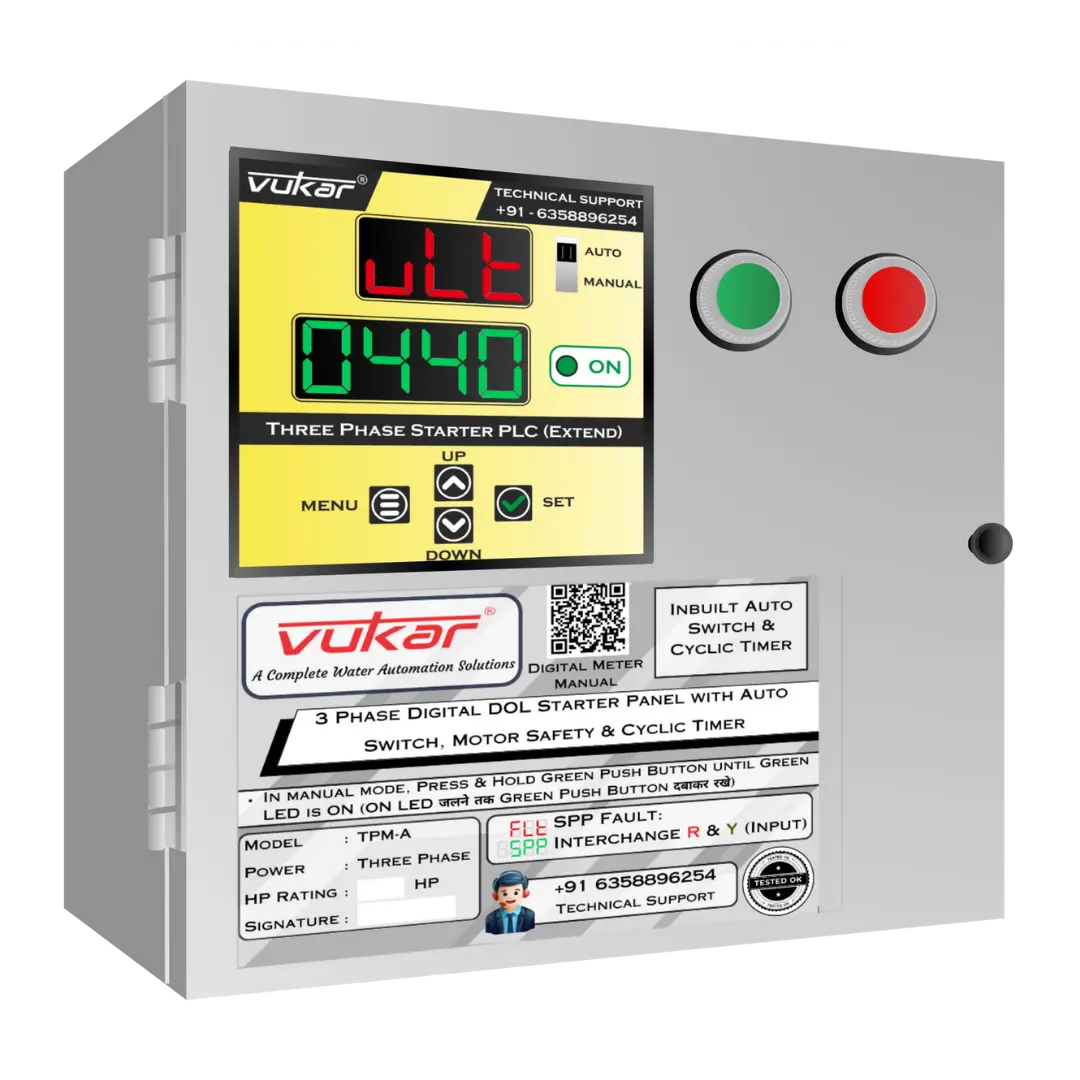

Illustrative example: VUKAR TPM-A three-phase DOL starter panel. Confirm the exact variant and documented functions; the photo does not imply that every feature discussed is included.
Three Phase Digital Motor Starter Panel: Selection Guide
A three-phase starter should be selected for the actual motor and supply, not just its display or a generic digital-versus-mechanical label. Use the motor nameplate and the exact panel manual as the starting point.
Use this guide to compare starter functions and choose a compatible model. Protection depends on the exact model, settings and installation, not on promises of permanent safety.
Match the panel to the motor and site
Ask the installer to check the supply phase, motor voltage, HP and rated current against the panel rating. Record any existing trip indications and the application. A model may document some protections without providing every protection mentioned in a general buying guide.
Choose the exact starter model using the pump nameplate, operating conditions and product manual.
How to evaluate customer reviews
This guide does not establish verified customer-rating comparisons. Check the source, date, review count and exact product before relying on a rating or a competitor comparison.
Compare exact models with this checklist
Record each model number and the supporting manual or specification. If a feature is not documented, ask the supplier before ordering. This checklist does not rank unnamed brands or claim that every digital or mechanical starter has the same construction.
| Check | What to verify |
|---|---|
| Motor compatibility | Match phase, voltage, HP and rated current against the exact panel specification. |
| Protection and reset | Check the documented trip conditions, settings, reset method and limitations. Do not infer functions from the display or product category. |
| Timer and restart | Confirm whether the required timer is auto-off, cyclic, delay-start or clock-based. Have the installer check the sequence and power-return behaviour; do not assume a timer measures tank or borewell water level. |
| Sensors and accessories | Confirm required sensors, included parts and interface compatibility from the exact manual and quote. |
| Installation and service | Have a qualified electrician assess wiring, isolation, earthing, enclosure placement and maintenance requirements. |
| Price and warranty | Use a current written quote with taxes, accessories and installation costs, plus the exact written warranty and support terms. |
Automation and routine checks
Automation can change when a motor starts or stops, but it does not replace site inspection or maintenance. Confirm the intended sequence, the response to a power failure and whether an automatic restart could create a hazard at the installation.
Automation can reduce some manual starting or stopping tasks. Confirm the exact timer or controller functions; routine checks and safe maintenance remain necessary.
- Read the documented display indicators or fault code before operating. A normal-looking display alone is not proof that the pump or installation is safe. Have unexpected indications checked by qualified support.
- Have a qualified electrician configure protection from the motor nameplate and exact controller manual. Do not treat a setting as a guarantee against every motor fault.
- Use only the delay and restart sequence specified for the exact controller and application. Do not adopt a universal three-minute setting or repeatedly restart a tripped motor without finding the cause.
- Keep the enclosure closed and follow its installation and maintenance instructions. If there is water ingress, burning, damage or abnormal operation, keep clear and arrange a qualified inspection before further use.
- Only a qualified electrician should inspect or work on internal terminal connections. The electrician must isolate the supply and verify that it is dead before this work.
For model-specific selection, use full range of three phase starter panels and comparison of all three phase DOL starter panels. Confirm the latest specifications before ordering; these links are not a wiring guide.
Frequently Asked Questions
Does a three phase digital motor starter save actual money?
Savings are not guaranteed. Compare purchase, installation and maintenance costs with the documented functions you need. A starter cannot eliminate every cause of motor failure or repair expense.
What makes a motor auto start stop controller so reliable?
Reliability depends on the exact design, compatibility, installation, settings and maintenance. Check the documented monitoring and restart functions instead of assuming that automation removes the need for supervision.
What information should I give the installer?
Provide the motor nameplate, exact panel model, pump application, supply details and the required operating routine. Include any existing fault symptoms. The installer should confirm compatibility and safe settings from the manuals.
How to protect three phase motor from voltage fluctuation exactly?
Check that the exact model documents high- and low-voltage protection. Have a qualified electrician assess the supply and configure limits using the product manual. Do not bypass a trip or change limits simply to keep the motor running.
Can I replace my old mechanical switch with this board?
Panel wiring is work for a qualified electrician, not a basic-tools DIY task. The electrician must use the exact wiring guide, isolate the supply and verify that it is dead before wiring or opening the panel.
Before you order
Shortlist the exact models that meet your requirements, then confirm the current quote, included accessories, written warranty and installation support. Choose documented functions rather than ratings, emotional promises or a generic category label.
