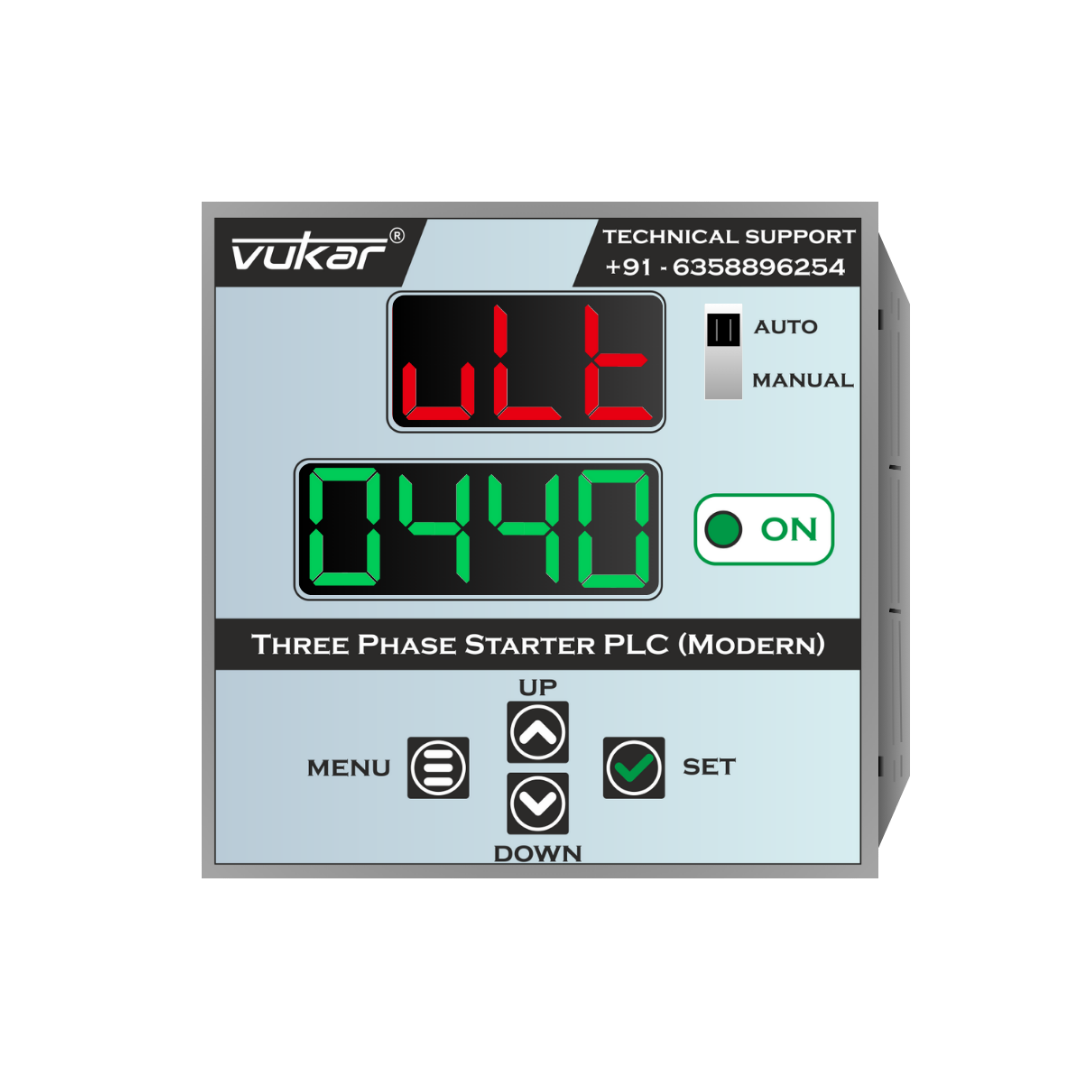

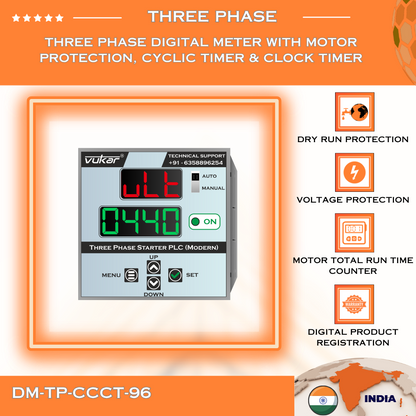

DM-TP-CCCT-96 Three Phase Motor Protection with Clock Timer

DM-TP-CCCT-96 three phase motor protection device is designed for pump control circuits that need motor protection with clock and cyclic pump scheduling. It monitors voltage/current and stops the motor-control output when configured electrical faults are detected.

When should you choose this model?

Choose DM-TP-CCCT-96 when you need motor protection without tank-level automation plus time-of-day scheduling. Confirm the phase, wiring, control circuit and motor rating before installation.

Core functions

• Voltage/current monitoring and fault indication
• Overvoltage, undervoltage, overload and dry-run protection
• Phase-loss and phase-sequence detection

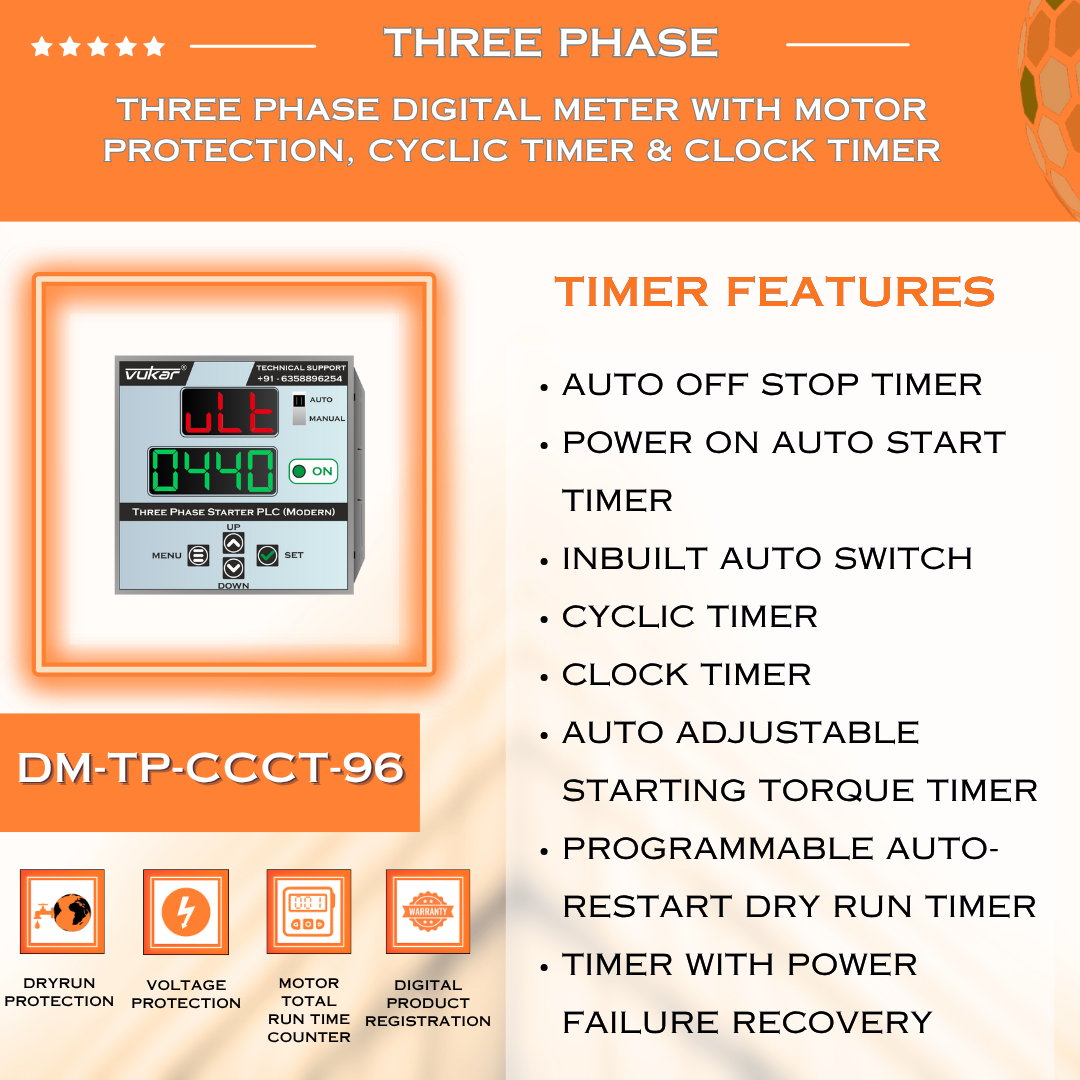

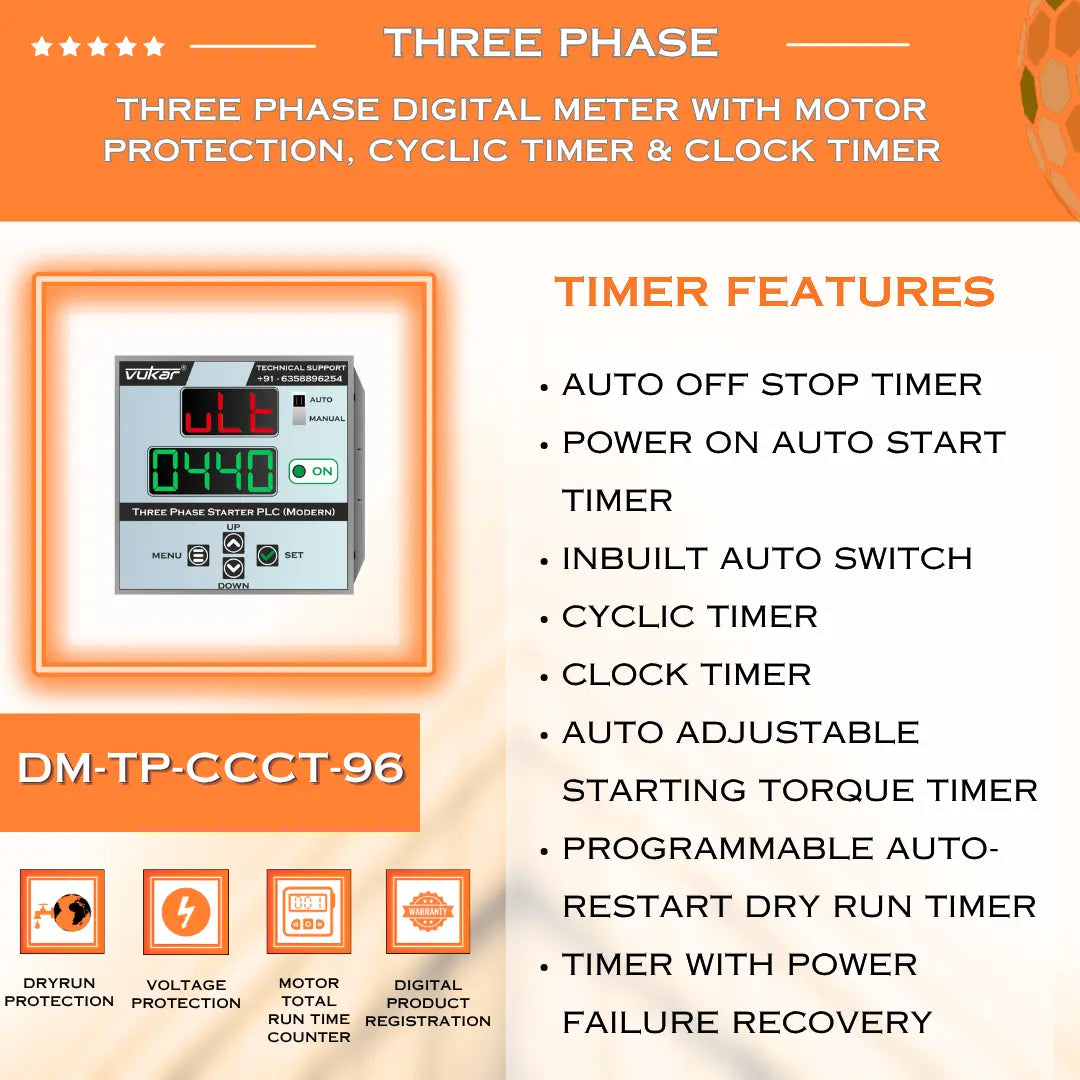

• Cyclic Timer, Auto-Off Stop Timer and power-on start delay
• Fault counter, total run-time counter and automatic/manual modes
• Clock Timer and multi-event scheduling

Installation and setup

• Install with a compatible pump starter or contactor control circuit.
• Use a qualified electrician to verify wiring, earthing and the motor rating.
• Set voltage, current, dry-run and timer parameters for the connected pump.
• After a trip, identify and correct the fault before restart.

Warranty, dispatch and support

• 1-year product warranty when purchased from this website.
• Orders are dispatched within 0–1 working day; expected delivery is 1–5 working days from the order date across India.
• Free shipping across India.
• Technical support by WhatsApp or call: +91 63588 96254.

Compare before buying

• Compare motor protection devices and digital meters
• Compare three phase starter panels
• View the VUKAR model and price comparison

Product feature guide

Dual digital display

Shows three phase electrical readings for operating checks.

Fault indication

Displays detected motor faults to support troubleshooting.

Motor fault counter

Records the number of motor-fault events.

Motor run-time counter

Records cumulative motor running time for maintenance reference.

Motor status indication

Shows motor ON and fault status.

Digital clock display

Shows clock and schedule information on models with clock timing.

Voltage protection

Stops the control output when voltage moves outside configured limits.

Dry-run protection

Stops the motor-control output when the configured dry-run condition is detected.

Phase-fault protection

Detects phase loss and incorrect phase sequence on three phase models.

Overload safety lockout

Keeps the control output stopped after an overload until reset.

Auto-off stop timer

Stops the pump after the configured running duration.

Power-on start delay

Adds a configured delay before restart after power returns.

Built-in auto switch

Provides automatic control when the configured supply conditions are healthy.

Cyclic timer

Runs repeated ON/OFF cycles according to configured timings.

Clock timer

Runs the pump at configured time-of-day schedules.

Dry-run restart timer

Retries after the configured recovery delay following a dry-run stop.

Timer power-failure recovery

Restores the configured timer cycle after a power interruption.

Digital registration and operating modes

Supports digital product registration and automatic/manual operation modes.

Daily run-time control

Limits operation to the configured daily running duration.

Cyclic-timer operating hours

Limits cyclic operation to the configured time window.

Multi-event scheduler

Supports multiple configured pump events at selected times.

Frequently asked questions

Is this a complete motor starter?

This is a Motor Protection Device. Install it with a compatible starter or contactor control circuit.

Are the same settings suitable for every pump?

No. A qualified electrician should set the parameters for the motor nameplate, supply and installation.
