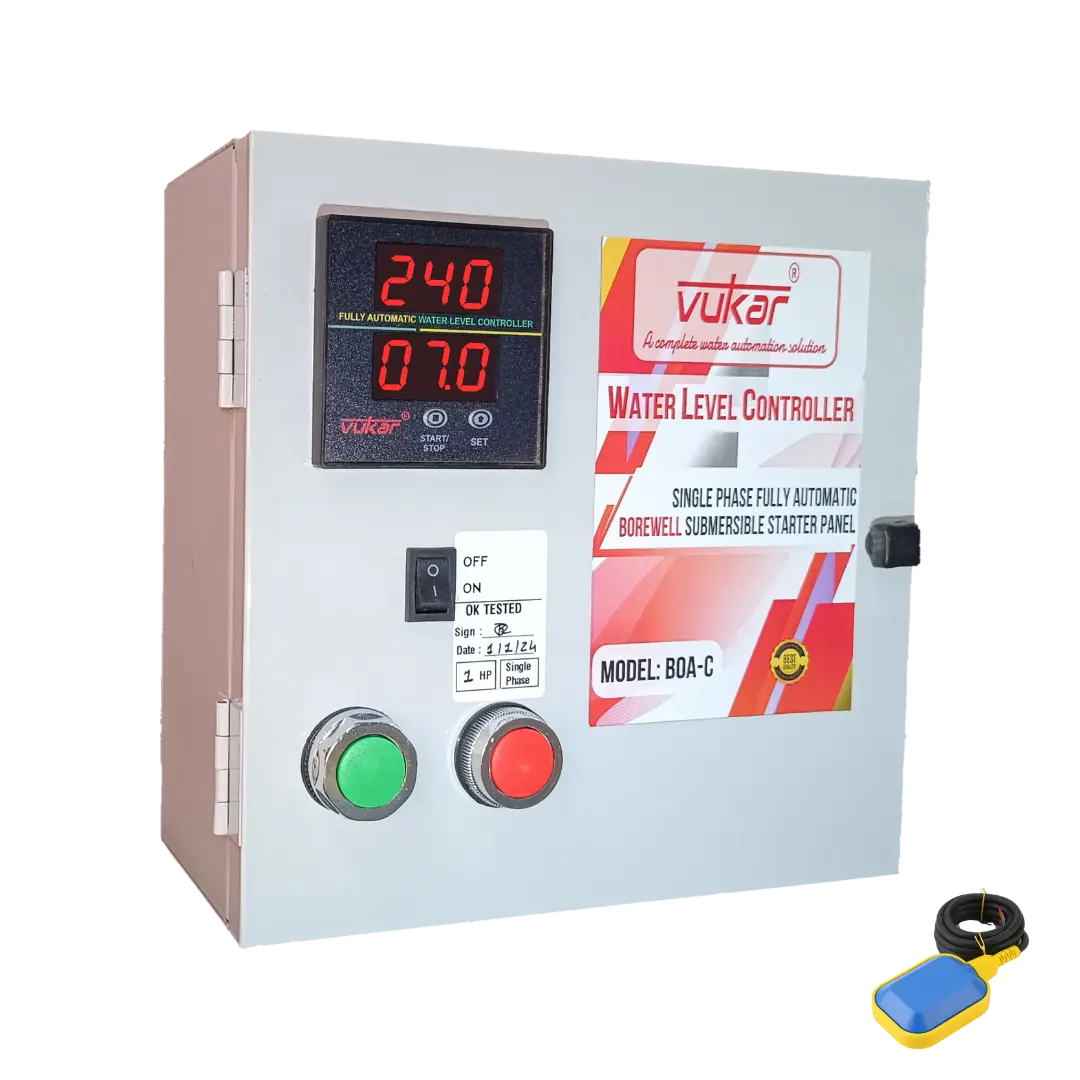

• VUKAR BOA-C model starter panel front view
  • Single Phase Openwell / Borewell Automatic Starter Panel with Water Level Controller, Motor Safety & Cyclic Timer (BOA-C) VUKAR
  • Single Phase Openwell / Borewell Automatic Starter Panel with Water Level Controller, Motor Safety & Cyclic Timer (BOA-C) VUKAR
  • Single Phase Openwell / Borewell Automatic Starter Panel with Water Level Controller, Motor Safety & Cyclic Timer (BOA-C) VUKAR
  • Weight and dimension details for the VUKAR BOA-C panel
1 5

Single Phase Openwell / Borewell Automatic Starter Panel with Water Level Controller, Motor Safety & Cyclic Timer (BOA-C)

Single Phase Openwell / Borewell Automatic Starter Panel with Water Level Controller, Motor Safety & Cyclic Timer (BOA-C)

Rs. 4,949.00
Rs. 7,380.00 Rs. 4,949.00
Sale Sold out
Taxes included. Free shipping across India. View shipping policy.
Customers rate us 4.7/5 based on 72 reviews.
HP Rating
Included Cyclic Timer + Water Level Controller

Selected Google reviews of Vukar Automation

Read reviews on Google (opens in a new tab)Product reviews

BOA-C is a single phase borewell/openwell motor starter panel for 0.5–3 HP pumps. Its defining function is automatic water level control and cyclic timer. Select the exact HP variant only after matching the pump rating and operating current.

VUKAR BOA-C comes from pump control manufacturer Vukar Automation in Rajkot. Include BOA-C in your enquiry for a dealer quote.

Who should choose BOA-C?

Choose BOA-C when the pump should start and stop from overhead-tank level and also needs repeat ON/OFF cycle control.

Model-specific functions

  • Automatic Water Level Controller starts the pump when the tank needs water and stops it when the tank reaches the full level.
  • Cyclic Timer supports repeated ON/OFF operation.
  • Cable float switch is included for tank-level sensing.

Motor protection and monitoring

  • Overvoltage and undervoltage protection disconnects the motor when supply voltage moves outside the configured limits.
  • Overload and dry-run protection stops the pump when the configured current conditions indicate excess load or loss of water.
  • Overload Safety Lockout, Power-On Auto-Start Timer and Programmable Dry-Run Auto-Restart Timer support controlled recovery after a fault or power interruption.
  • Motor ON indication, fault display, fault counter and run-time counter provide operating information on the panel.

Product feature reference

Protection and control features

Fully automatic operation by tank and borewell water level

BOA-C: Fully automatic operation by tank and borewell water level

BOA-C: Fully automatic operation by tank and borewell water level
High brightness dual digital display on a single phase panel

BOA-C: High brightness dual digital display on a single phase panel

BOA-C: High brightness dual digital display on a single phase panel
Fault display indication showing motor error codes on the panel

BOA-C: Fault display indication showing motor error codes on the panel

BOA-C: Fault display indication showing motor error codes on the panel
Motor fault counter logging and displaying the number of trips

BOA-C: Motor fault counter logging and displaying the number of trips

BOA-C: Motor fault counter logging and displaying the number of trips

Timing and automatic control

Motor run time counter logging cumulative pump operating hours

BOA-C: Motor run time counter logging cumulative pump operating hours

BOA-C: Motor run time counter logging cumulative pump operating hours
Motor on indication confirming the pump is currently running

BOA-C: Motor on indication confirming the pump is currently running

BOA-C: Motor on indication confirming the pump is currently running
Water level controller starting and stopping the motor by tank level

BOA-C: Water level controller starting and stopping the motor by tank level

BOA-C: Water level controller starting and stopping the motor by tank level
Water level indicator giving visual confirmation of tank status

BOA-C: Water level indicator giving visual confirmation of tank status

BOA-C: Water level indicator giving visual confirmation of tank status
Overvoltage and undervoltage protection keeping the motor in safe limits

BOA-C: Overvoltage and undervoltage protection keeping the motor in safe limits

BOA-C: Overvoltage and undervoltage protection keeping the motor in safe limits
Dry run protection cutting power when the water source runs dry

BOA-C: Dry run protection cutting power when the water source runs dry

BOA-C: Dry run protection cutting power when the water source runs dry
Overload safety lockout halting operation after repeated overload trips

BOA-C: Overload safety lockout halting operation after repeated overload trips

BOA-C: Overload safety lockout halting operation after repeated overload trips
Auto off stop timer switching the motor off after a set duration

BOA-C: Auto off stop timer switching the motor off after a set duration

BOA-C: Auto off stop timer switching the motor off after a set duration
Power on auto start timer delaying restart after supply returns

BOA-C: Power on auto start timer delaying restart after supply returns

BOA-C: Power on auto start timer delaying restart after supply returns
Inbuilt auto switch managing automatic pump start and stop

BOA-C: Inbuilt auto switch managing automatic pump start and stop

BOA-C: Inbuilt auto switch managing automatic pump start and stop
Cyclic timer scheduler running the pump in timed on off cycles

BOA-C: Cyclic timer scheduler running the pump in timed on off cycles

BOA-C: Cyclic timer scheduler running the pump in timed on off cycles
Auto adjustable starting torque timer easing motor starts

BOA-C: Auto adjustable starting torque timer easing motor starts

BOA-C: Auto adjustable starting torque timer easing motor starts
Programmable auto restart timer retrying the pump after dry run cutoff

BOA-C: Programmable auto restart timer retrying the pump after dry run cutoff

BOA-C: Programmable auto restart timer retrying the pump after dry run cutoff
Timer with power failure recovery keeping schedules after outages

BOA-C: Timer with power failure recovery keeping schedules after outages

BOA-C: Timer with power failure recovery keeping schedules after outages

Installation and ownership

Panel internals with ISI marked copper wiring on heavy duty lugs

BOA-C: Panel internals with ISI marked copper wiring on heavy duty lugs

BOA-C: Panel internals with ISI marked copper wiring on heavy duty lugs

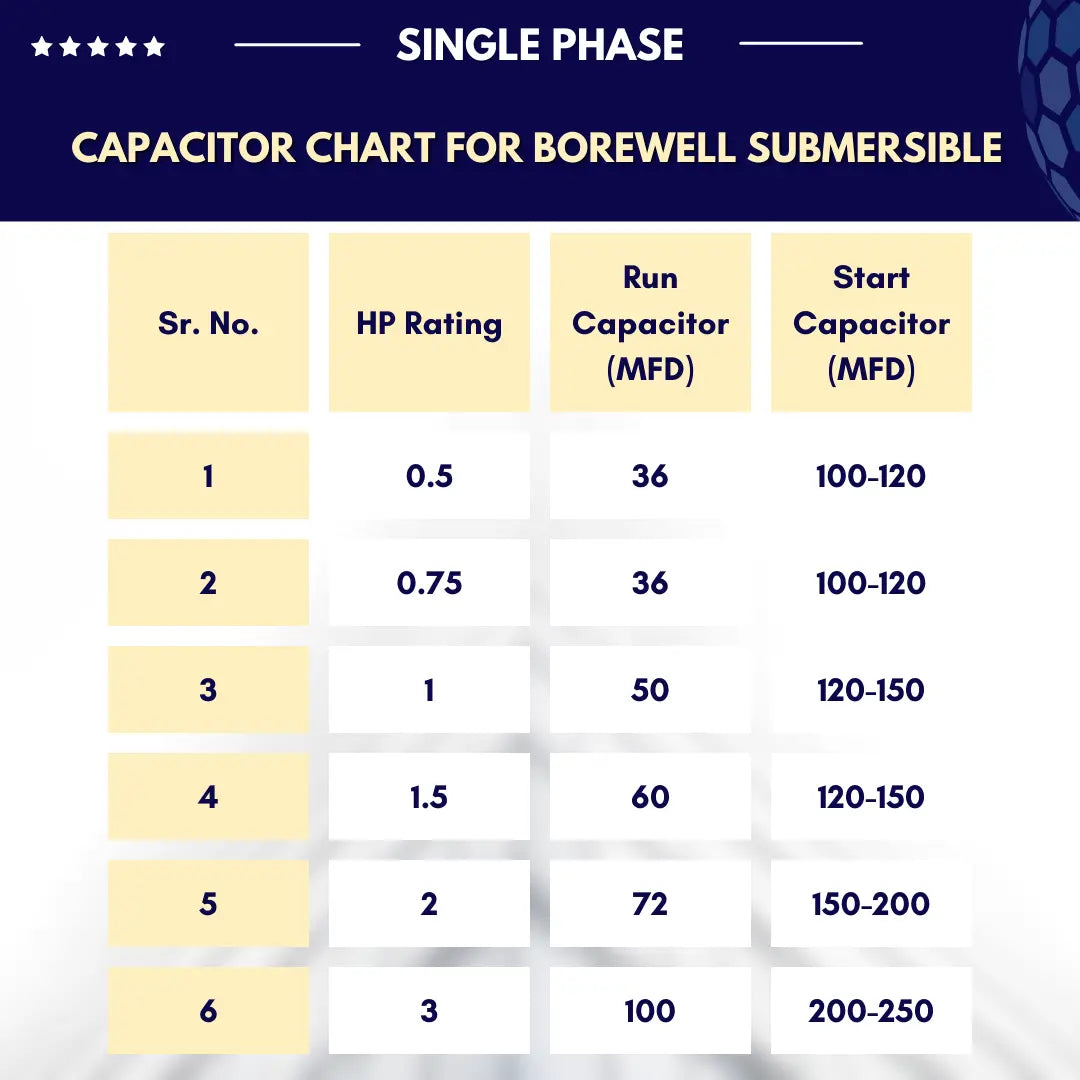

Built in 440 V motor run capacitor for stable starting

BOA-C: Built in 440 V motor run capacitor for stable starting

BOA-C: Built in 440 V motor run capacitor for stable starting
Powder coated metal enclosure protecting the panel internals

BOA-C: Powder coated metal enclosure protecting the panel internals

BOA-C: Powder coated metal enclosure protecting the panel internals
Cable float switch included for automatic tank level sensing

BOA-C: Cable float switch included for automatic tank level sensing

BOA-C: Cable float switch included for automatic tank level sensing

Installation and selection

  • Use only with a compatible single phase borewell or openwell pump within the selected 0.5–3 HP variant range.
  • Match the variant to the pump nameplate HP and current; protection settings must be configured for the actual motor.
  • Installation, earthing, capacitor connections and sensor wiring should be completed by a qualified electrician.
  • Tank sensor or float-switch positioning must be tested before automatic operation.

Warranty, delivery and support

  • Warranty: 1 year when purchased from this website.
  • Dispatch: 0–1 working day. Expected delivery: 1–5 working days from the order date across India.
  • Shipping: free across India.
  • Technical support: WhatsApp or call +91 63588 96254.
  • To order by phone, send your name, address, contact number, PIN code and model to +91 95121 72271.

Frequently asked questions

Which pumps does BOA-C suit?

Select the matching 0.5–3 HP variant for a single phase borewell or openwell pump. Match the pump nameplate HP and current, and have a qualified electrician verify the wiring and capacitor requirements before installation.

Does BOA-C include automatic tank-level control?

Yes. This BOA model includes automatic water level control and a cable float switch.
