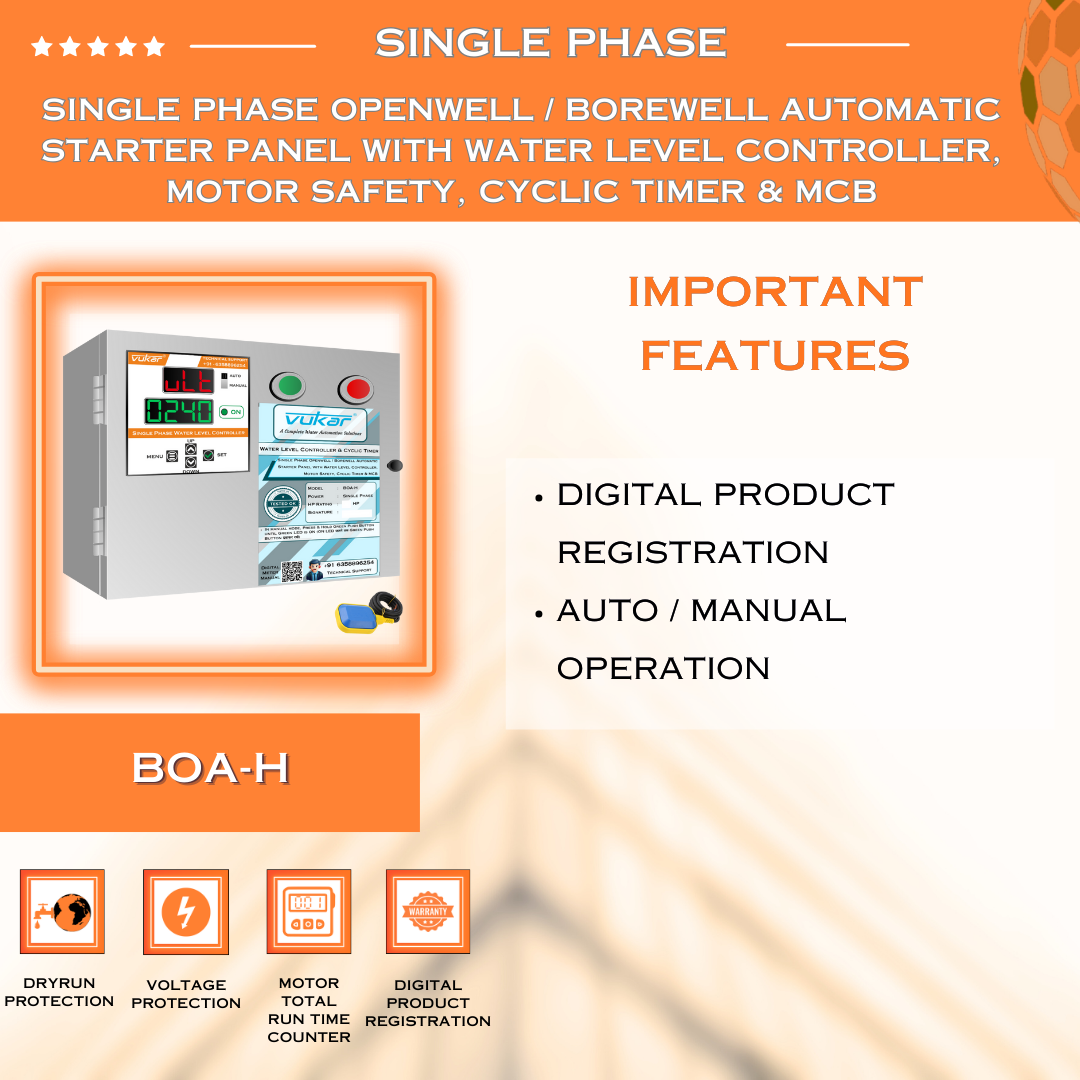

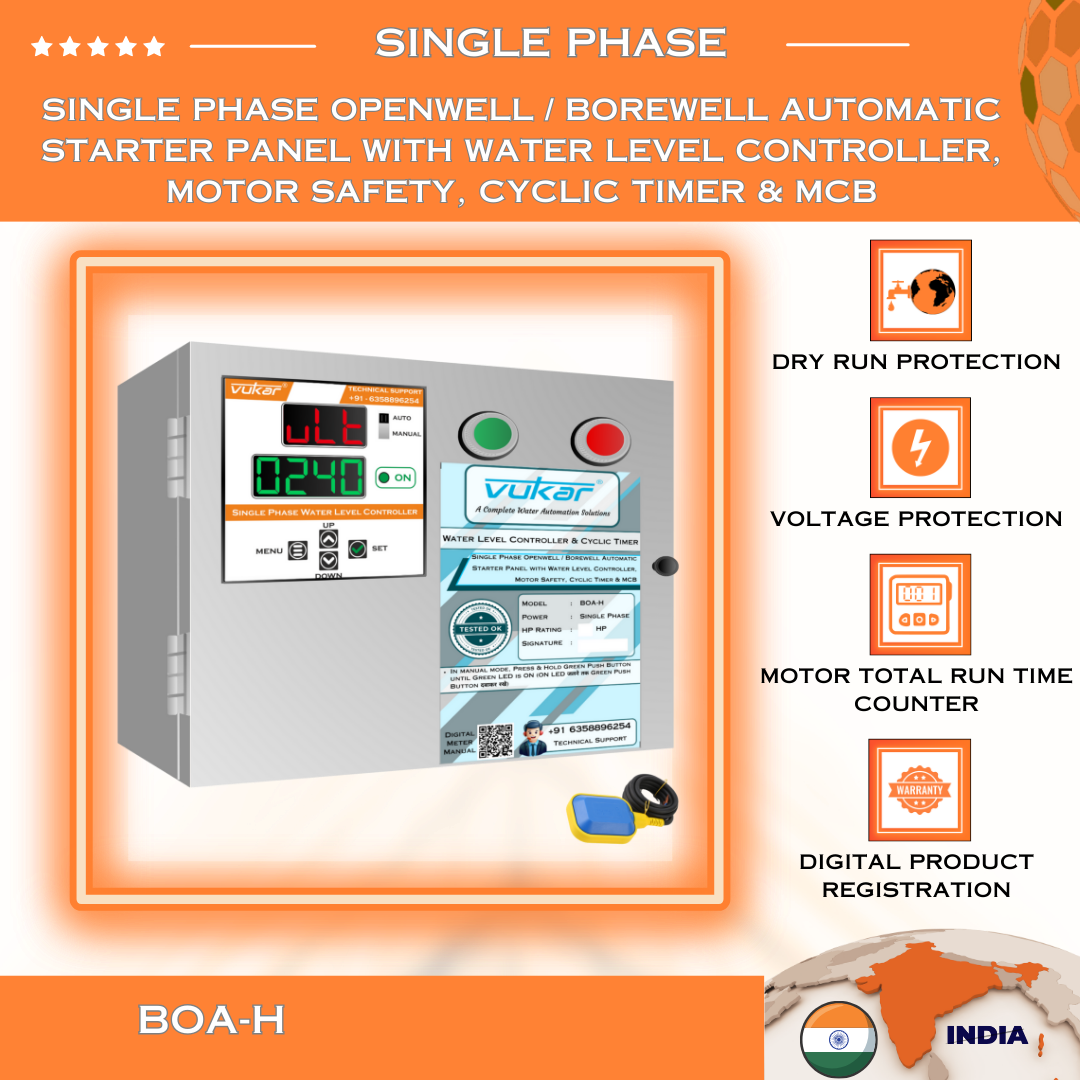

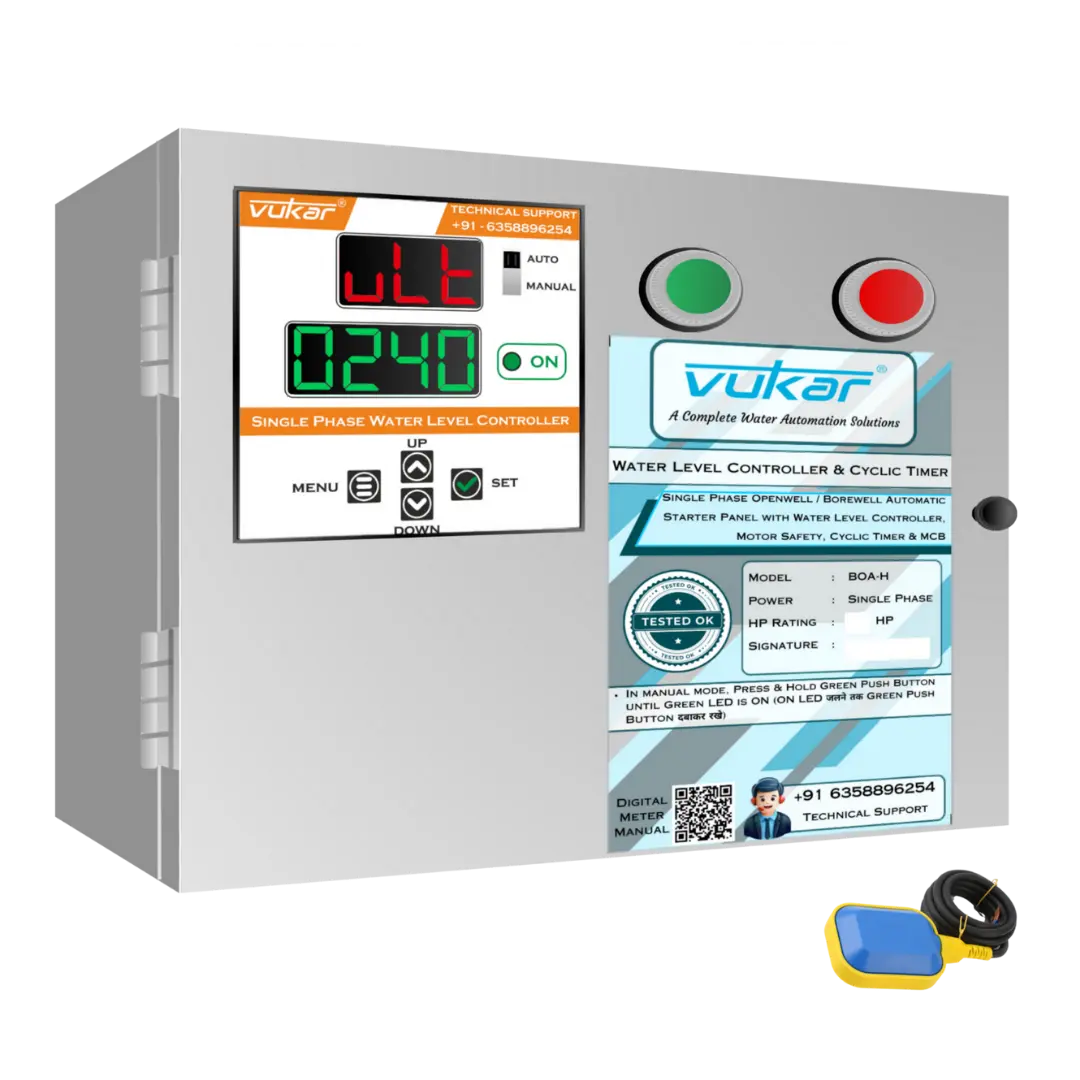

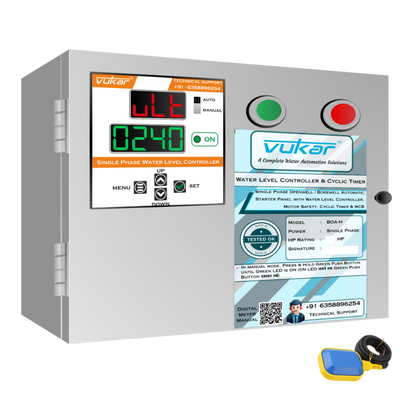

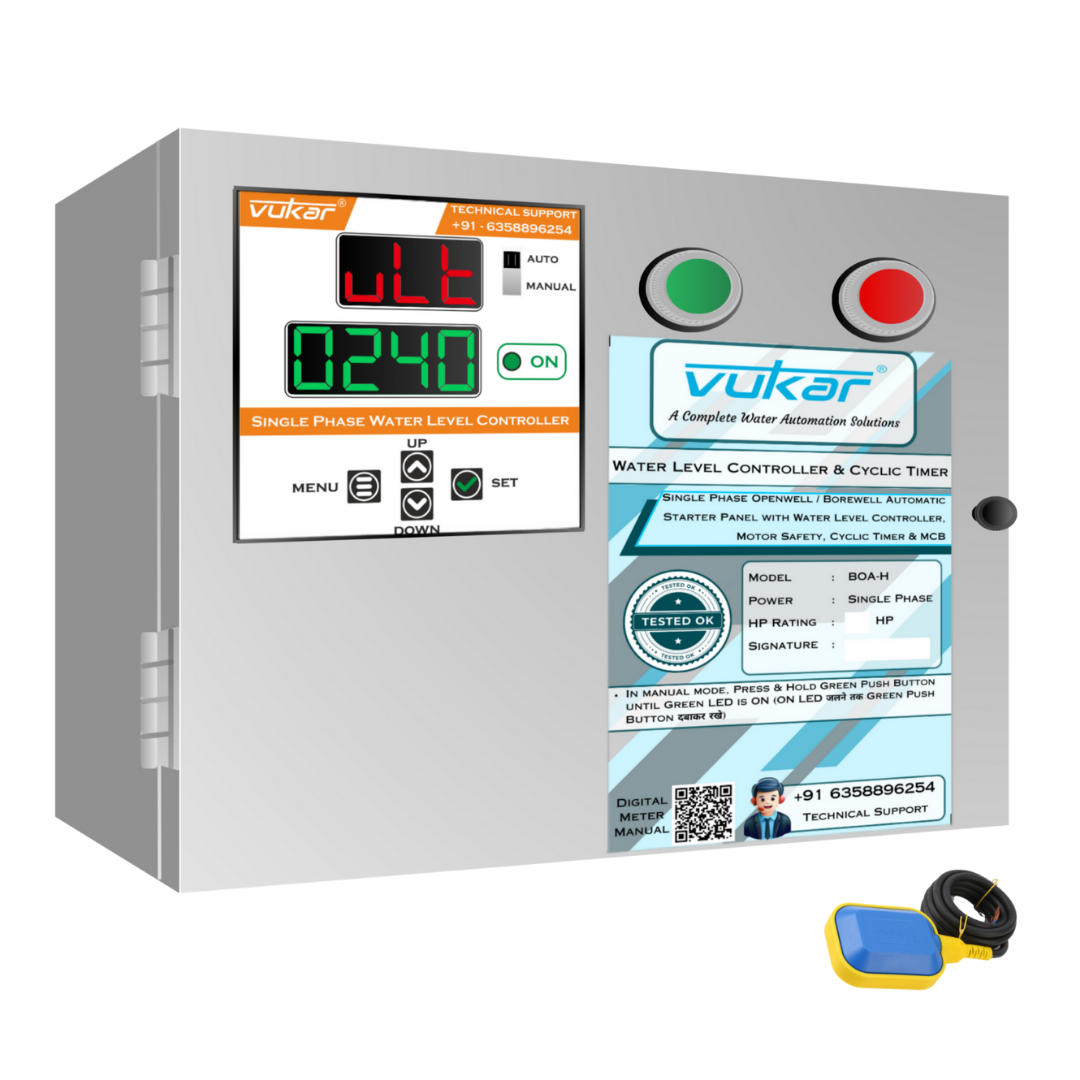

Single Phase Openwell / Borewell Automatic Starter Panel with Water Level Controller, Motor Safety, Cyclic Timer & MCB (BOA-H)

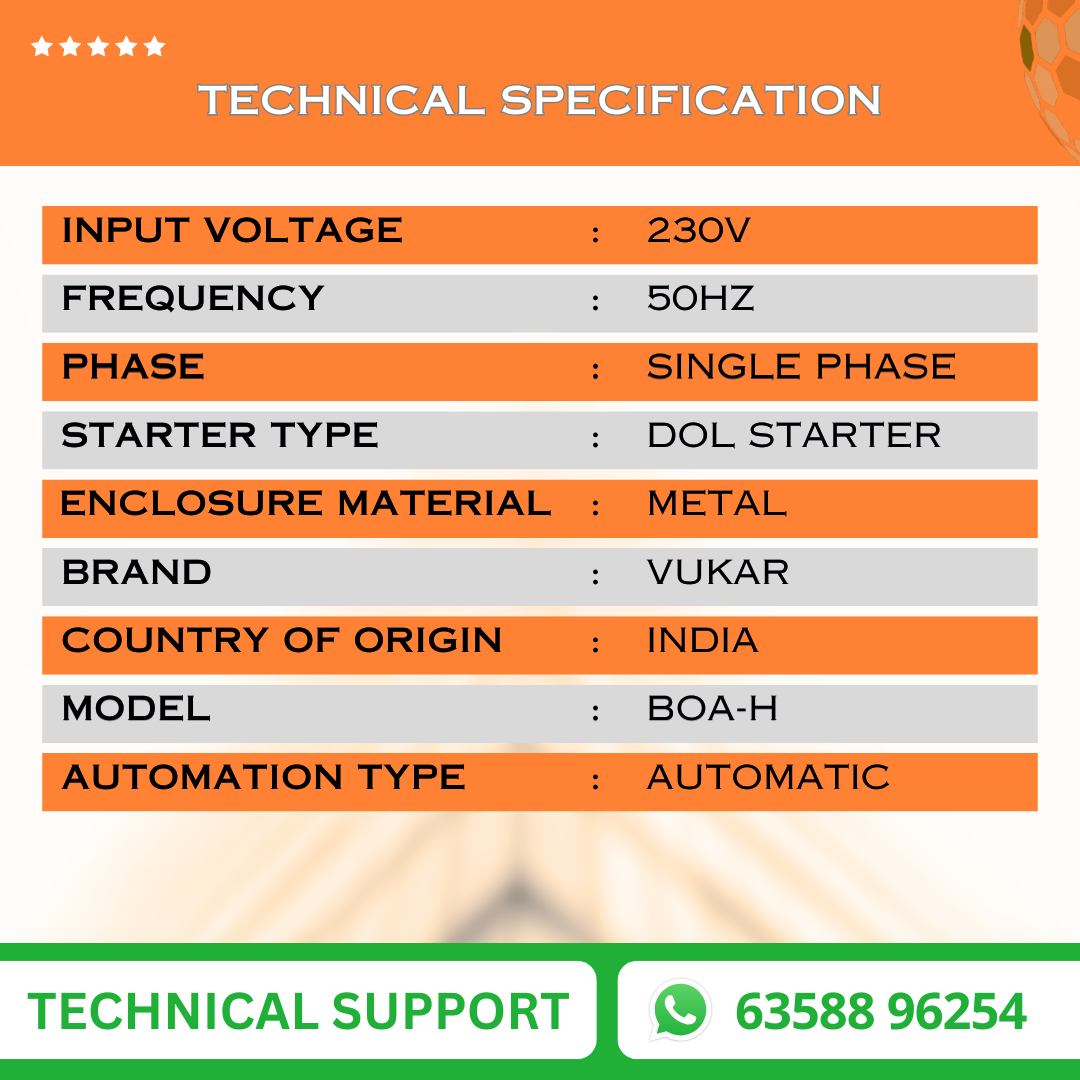

Single phase · Openwell / borewell · 0.5–2 HP
Regular price
Rs. 5,199.00
Regular price
Rs. 7,710.00
Sale price
Rs. 5,199.00
Included
Cyclic Timer + Water Level Controller
Quantity
Couldn't load pickup availability
Taxes included.
Free shipping across India. View shipping policy.
-
Free shipping across India
No shipping, handling or COD fee
-
Secure online checkout
Pay via Razorpay
-
7-day replacement window
Eligible claims only, from delivery
Selected Google reviews of Vukar Automation
BOA-H is a single phase borewell/openwell motor starter panel for 0.5–2 HP pumps. Its defining function is automatic water level control, cyclic timer and inbuilt MCB. Select the exact HP variant only after matching the pump rating and operating current.
VUKAR BOA-H comes from pump control manufacturer Vukar Automation in Rajkot. For BOA-H bulk orders, send the quantity you need.
Who should choose BOA-H?
Choose BOA-H when tank-level automation and repeat-cycle control are required together with an inbuilt MCB.
Model-specific functions
- Automatic Water Level Controller starts and stops the pump from tank-level demand.
- Cyclic Timer supports repeated ON/OFF operation.
- Inbuilt MCB provides short-circuit protection for the panel circuit; cable float switch is included.

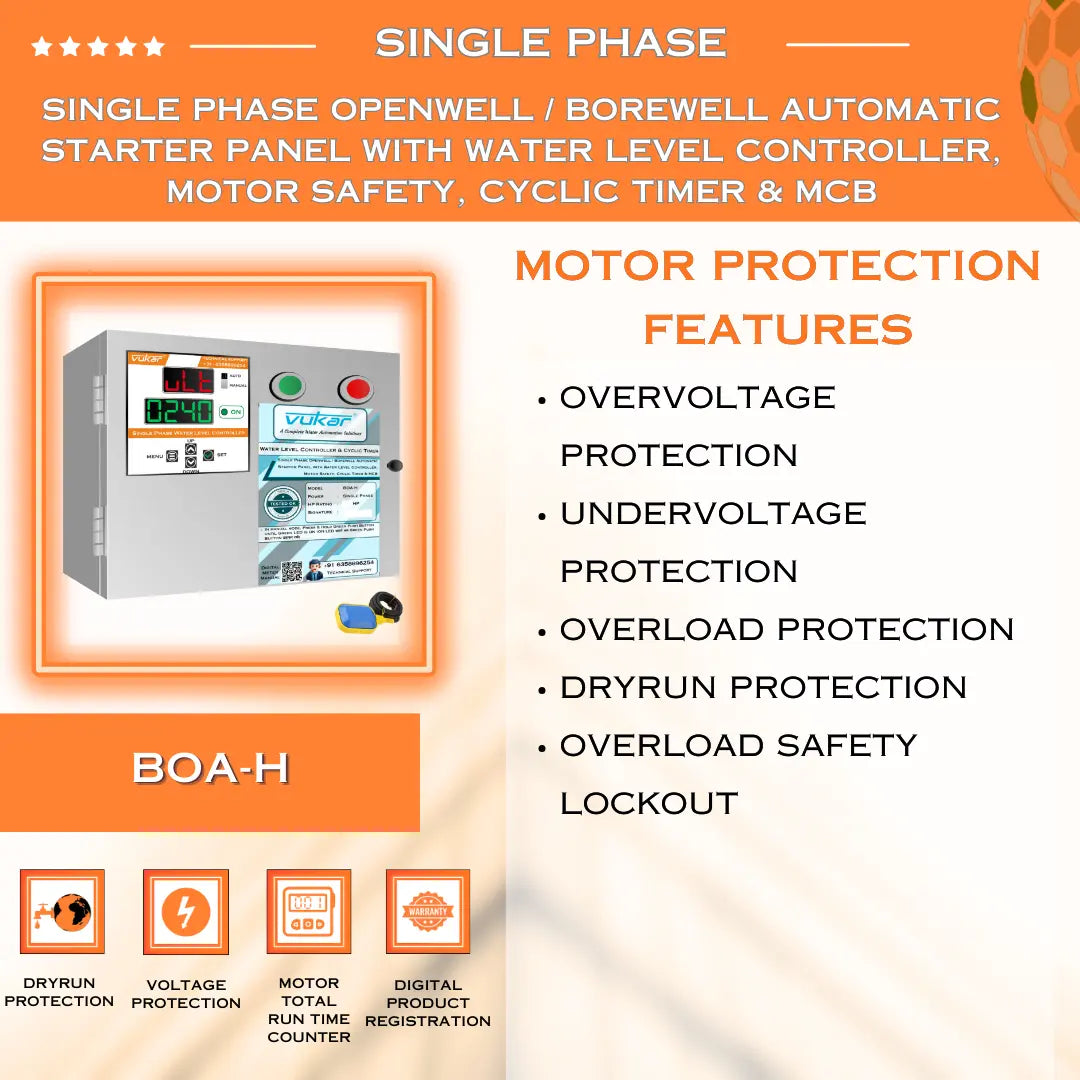

Motor protection and monitoring
- Overvoltage and undervoltage protection disconnects the motor when supply voltage moves outside the configured limits.
- Overload and dry-run protection stops the pump when the configured current conditions indicate excess load or loss of water.
- Overload Safety Lockout, Power-On Auto-Start Timer and Programmable Dry-Run Auto-Restart Timer support controlled recovery after a fault or power interruption.
- Motor ON indication, fault display, fault counter and run-time counter provide operating information on the panel.
Product feature reference
Protection and control features

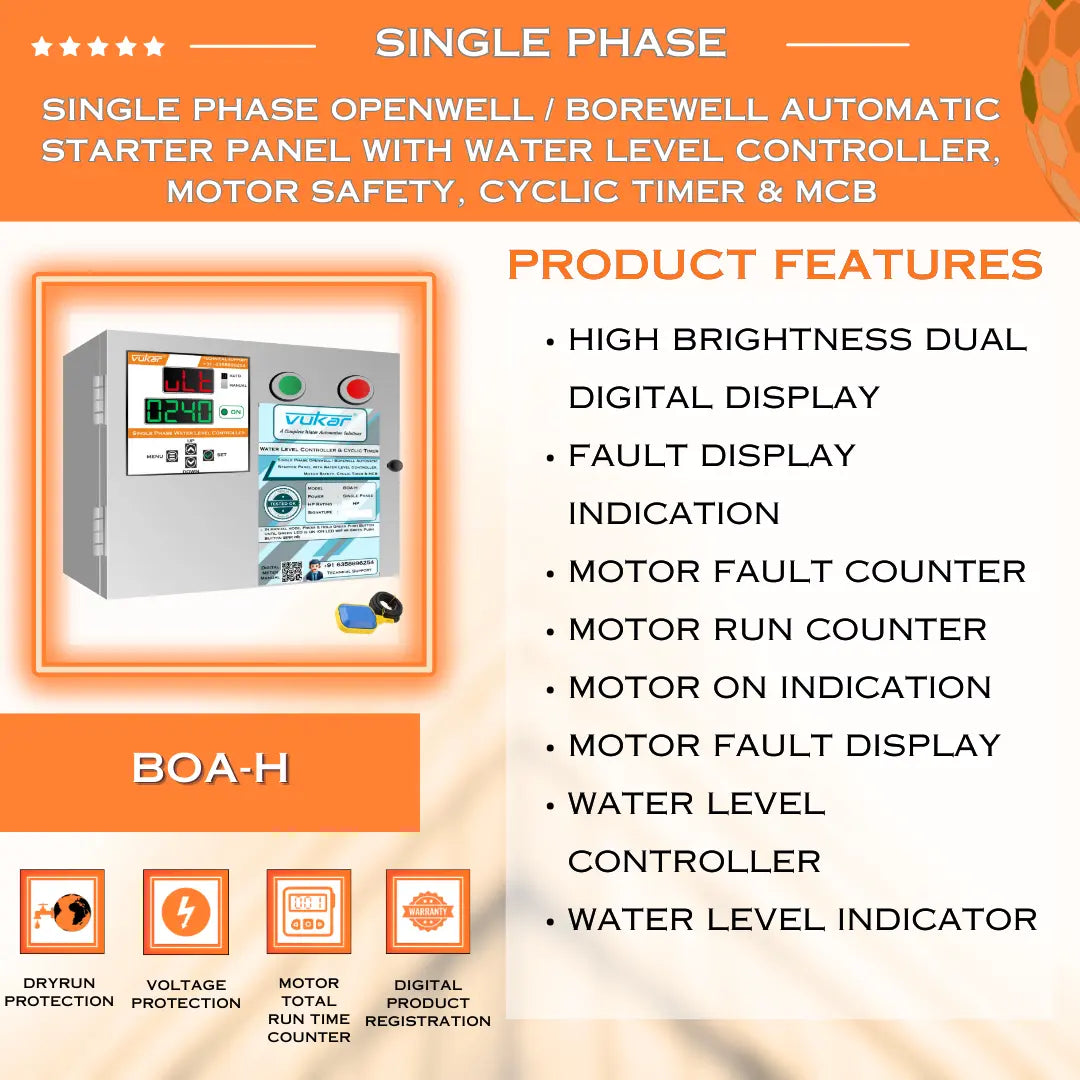

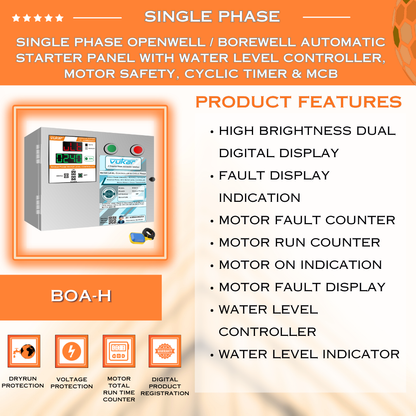

BOA-H: High brightness dual digital display on a single phase panel
BOA-H: High brightness dual digital display on a single phase panel
BOA-H: Fault display indication showing motor error codes on the panel
BOA-H: Fault display indication showing motor error codes on the panel
BOA-H: Motor fault counter logging and displaying the number of trips
BOA-H: Motor fault counter logging and displaying the number of tripsTiming and automatic control
BOA-H: Motor run time counter logging cumulative pump operating hours
BOA-H: Motor run time counter logging cumulative pump operating hours
BOA-H: Motor on indication confirming the pump is currently running
BOA-H: Motor on indication confirming the pump is currently running
BOA-H: Water level controller starting and stopping the motor by tank level
BOA-H: Water level controller starting and stopping the motor by tank level
BOA-H: Water level indicator giving visual confirmation of tank status
BOA-H: Water level indicator giving visual confirmation of tank status
BOA-H: Overvoltage and undervoltage protection keeping the motor in safe limits
BOA-H: Overvoltage and undervoltage protection keeping the motor in safe limits
BOA-H: Dry run protection cutting power when the water source runs dry
BOA-H: Dry run protection cutting power when the water source runs dry
BOA-H: Overload safety lockout halting operation after repeated overload trips
BOA-H: Overload safety lockout halting operation after repeated overload trips

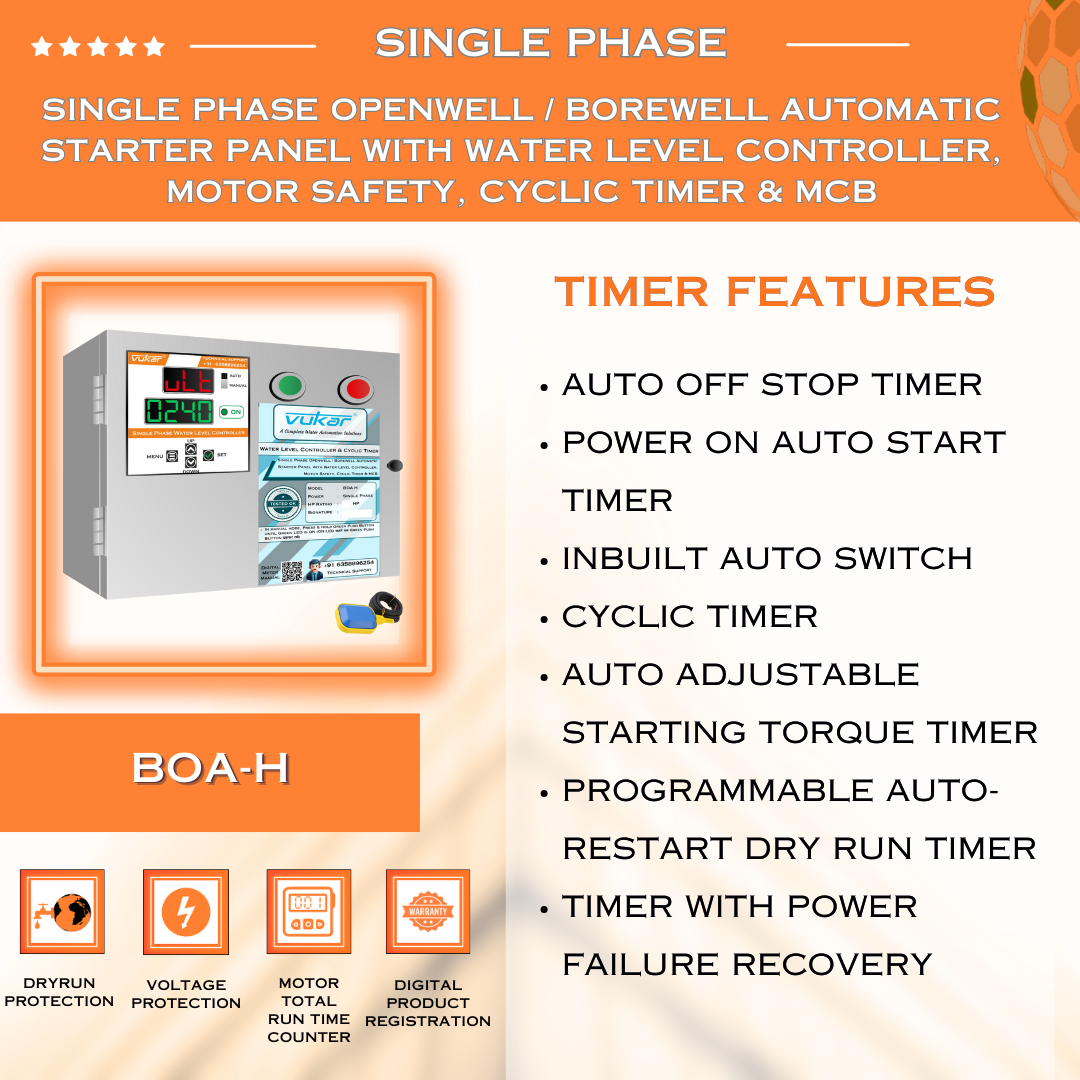

BOA-H: Auto off stop timer switching the motor off after a set duration
BOA-H: Auto off stop timer switching the motor off after a set duration
BOA-H: Power on auto start timer delaying restart after supply returns
BOA-H: Power on auto start timer delaying restart after supply returns
BOA-H: Inbuilt auto switch managing automatic pump start and stop
BOA-H: Inbuilt auto switch managing automatic pump start and stop
BOA-H: Cyclic timer scheduler running the pump in timed on off cycles
BOA-H: Cyclic timer scheduler running the pump in timed on off cycles
BOA-H: Auto adjustable starting torque timer easing motor starts
BOA-H: Auto adjustable starting torque timer easing motor starts
BOA-H: Timer with power failure recovery keeping schedules after outages
BOA-H: Timer with power failure recovery keeping schedules after outagesInstallation and ownership

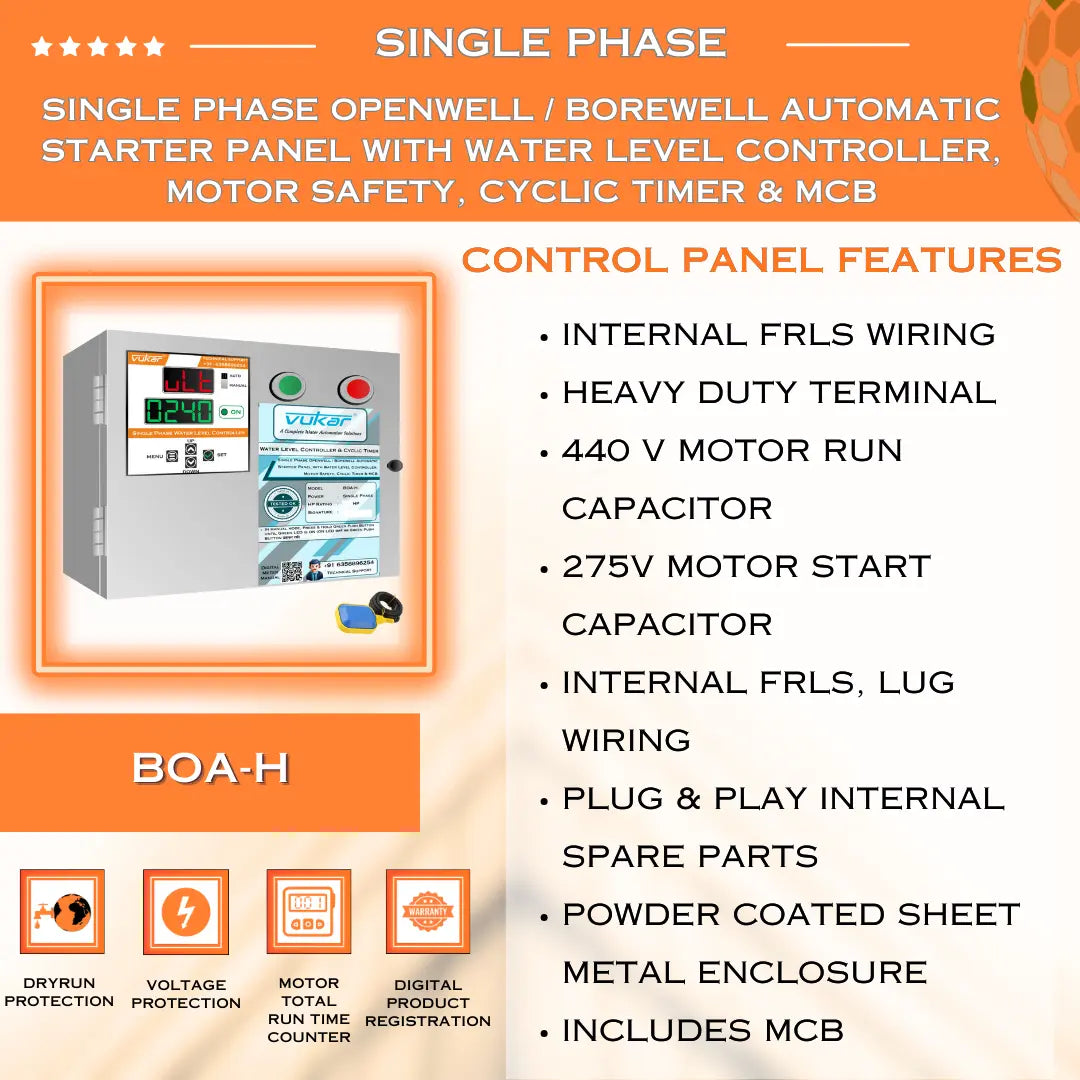

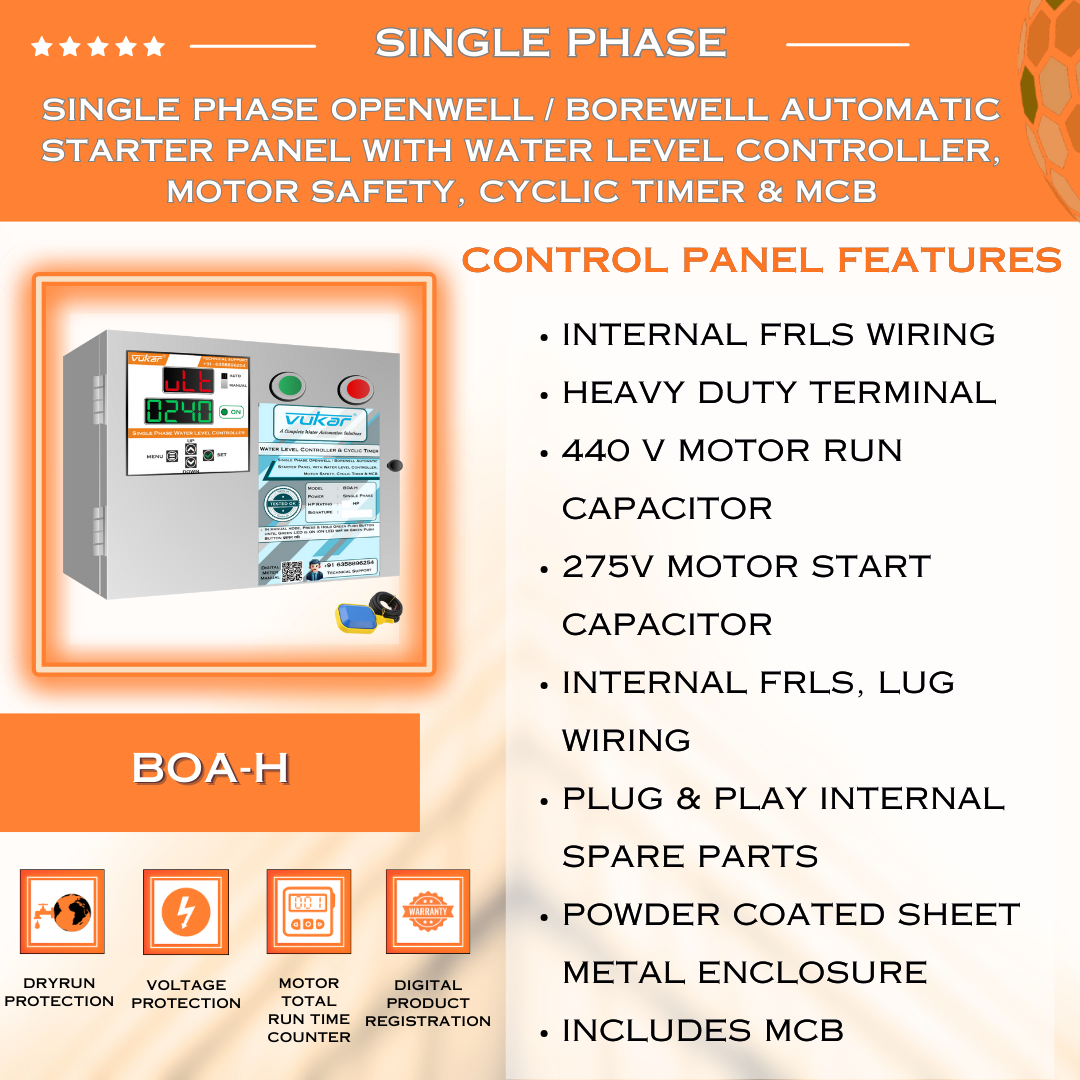

BOA-H: Panel internals with ISI marked copper wiring on heavy duty lugs
BOA-H: Panel internals with ISI marked copper wiring on heavy duty lugs
BOA-H: Built in 440 V motor run capacitor for stable starting
BOA-H: Built in 440 V motor run capacitor for stable starting
BOA-H: Inbuilt MCB giving short circuit protection in the panel
BOA-H: Inbuilt MCB giving short circuit protection in the panel
BOA-H: Powder coated metal enclosure protecting the panel internals
BOA-H: Powder coated metal enclosure protecting the panel internals

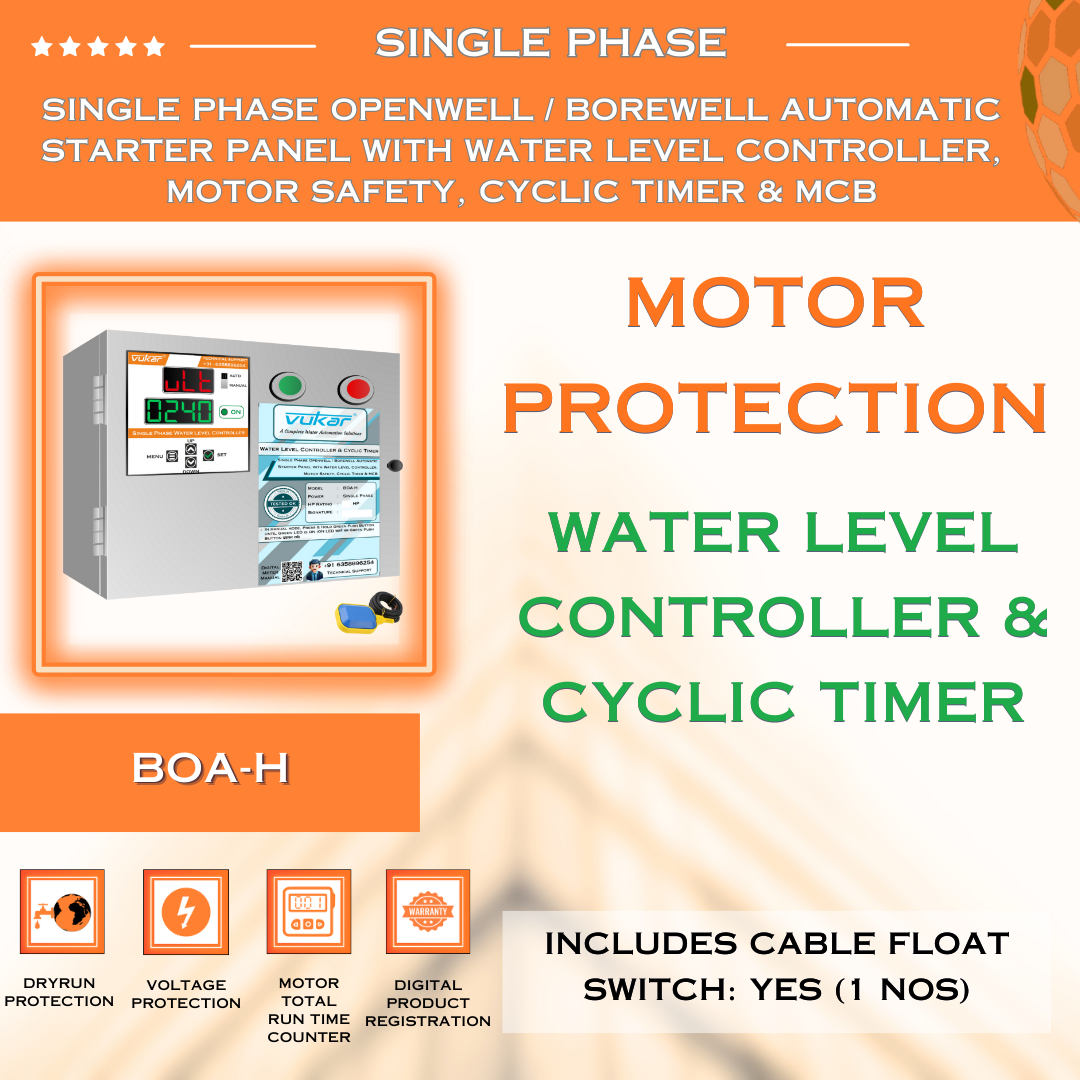

BOA-H: Cable float switch included for automatic tank level sensing
BOA-H: Cable float switch included for automatic tank level sensingInstallation and selection
- Use only with a compatible single phase borewell or openwell pump within the selected 0.5–2 HP variant range.
- Match the variant to the pump nameplate HP and current; protection settings must be configured for the actual motor.

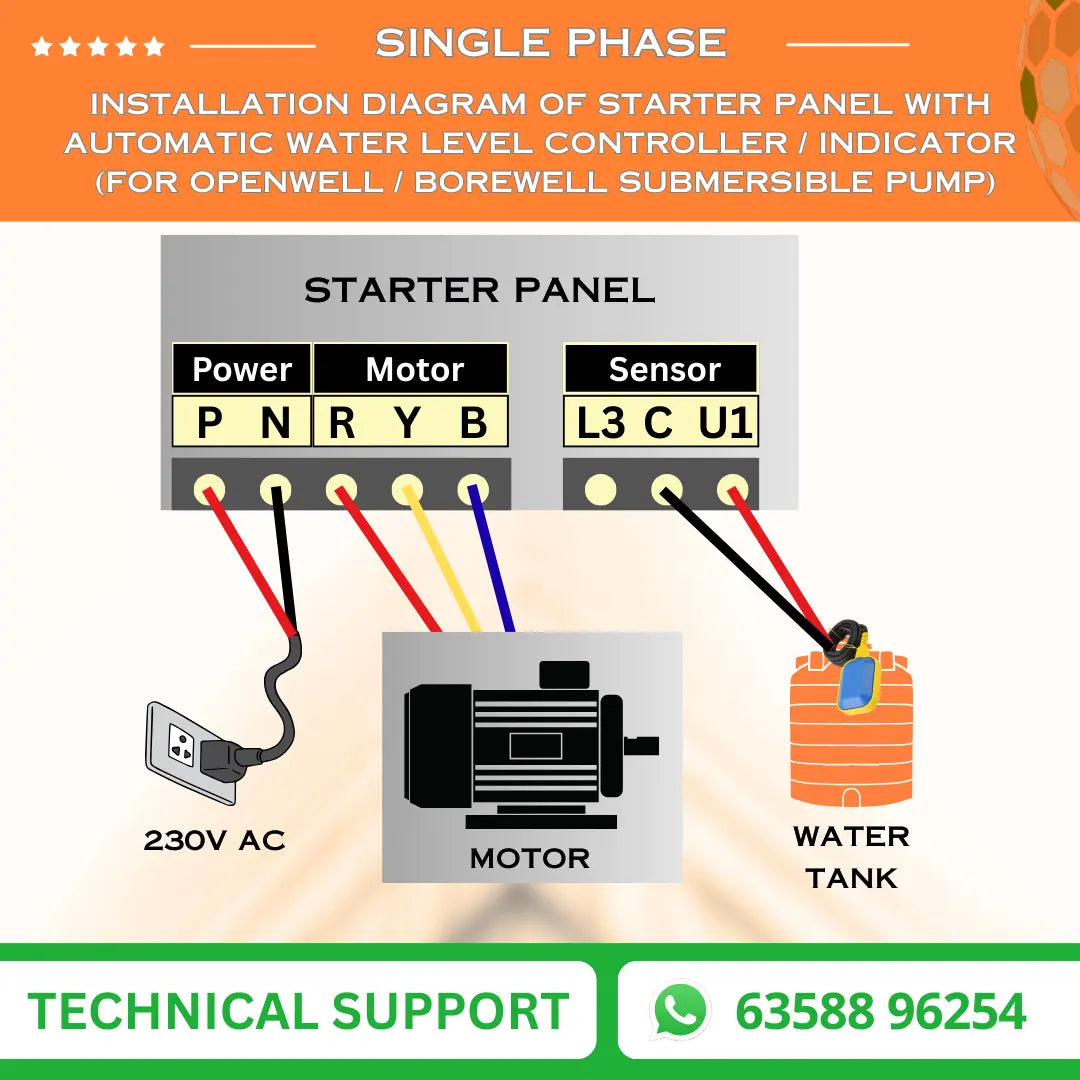

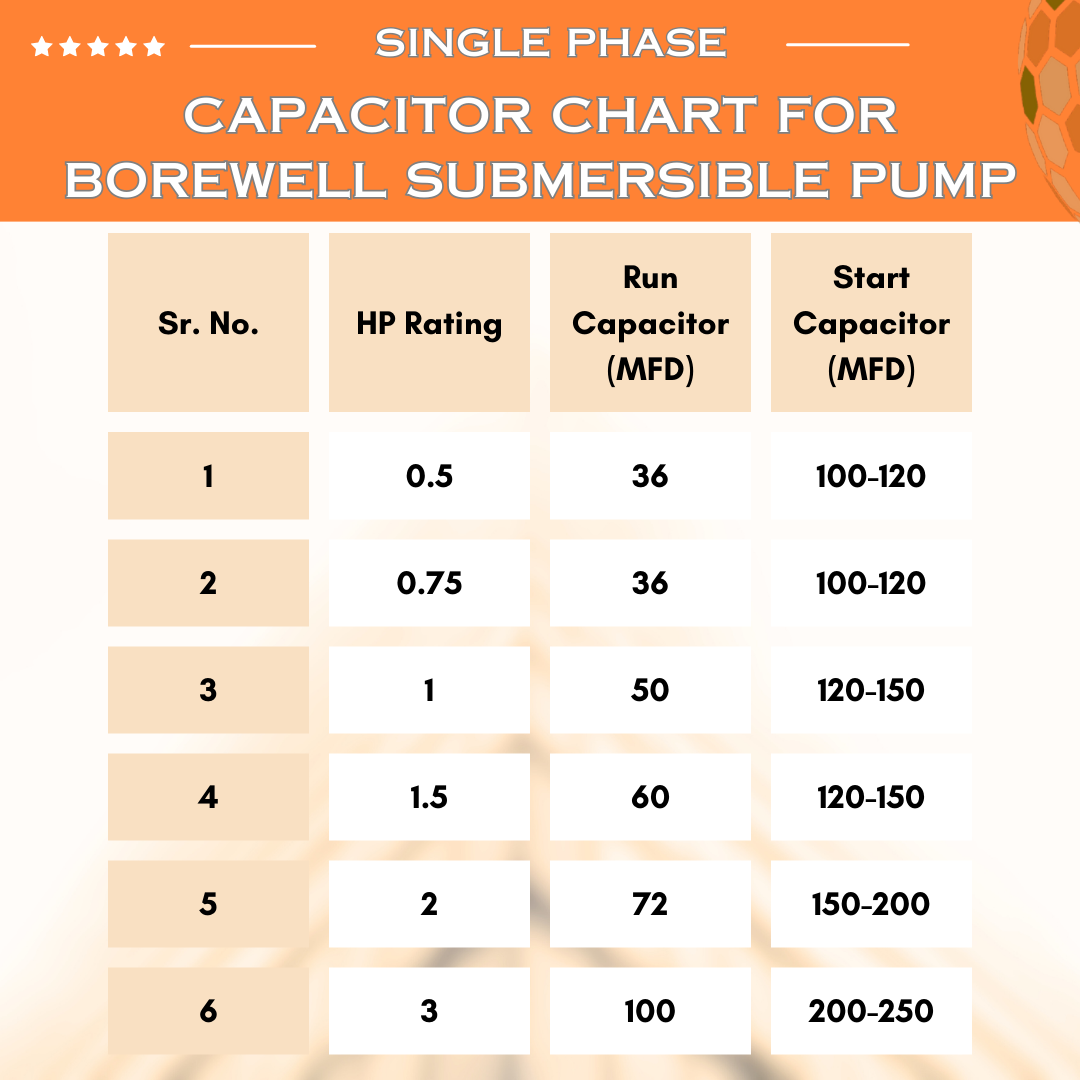

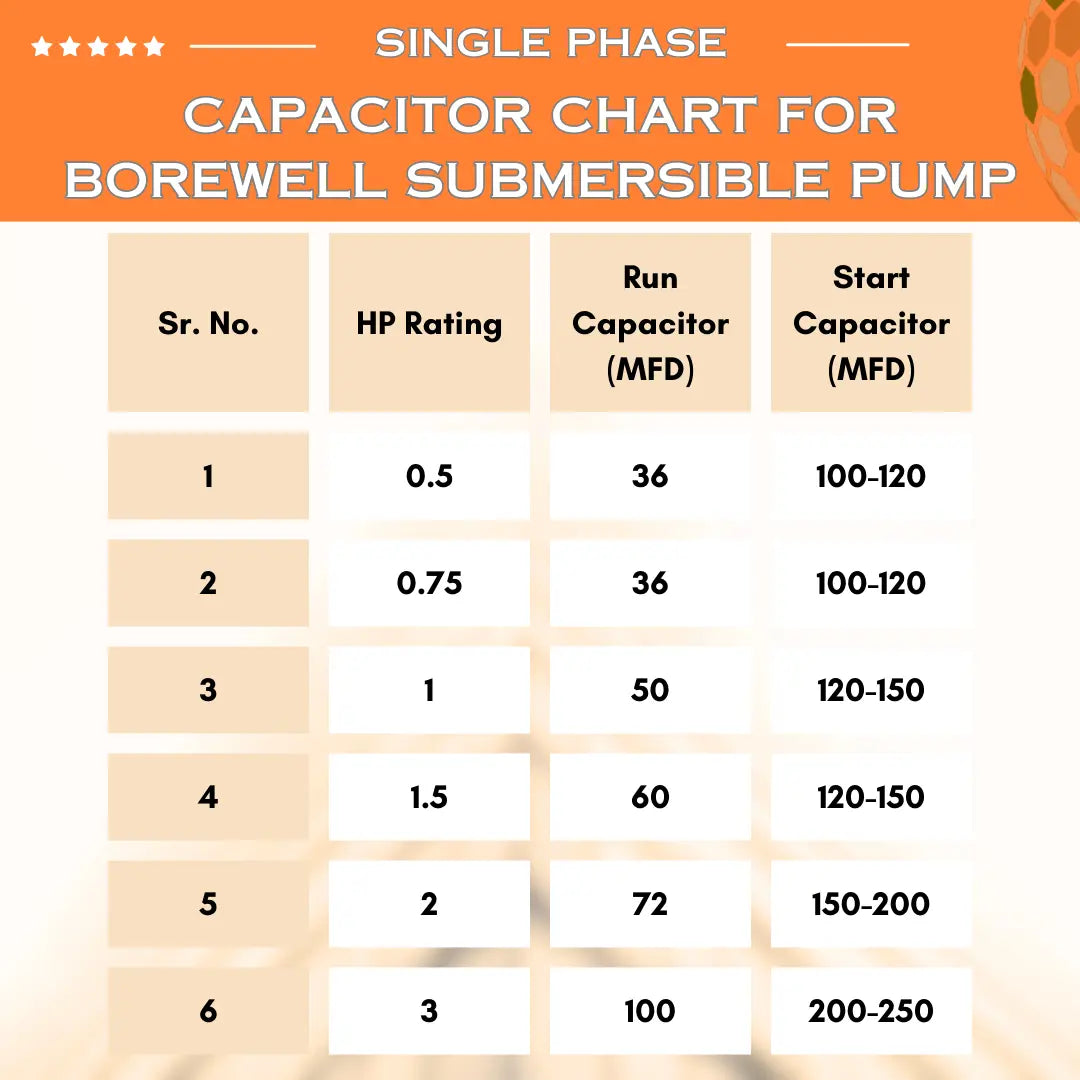

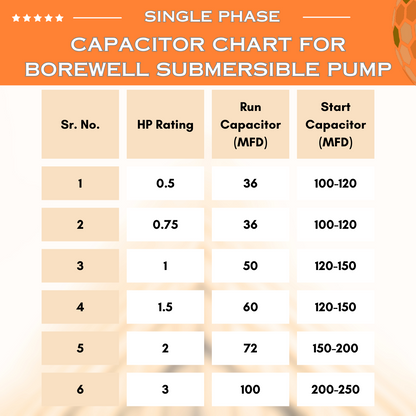

- Installation, earthing, capacitor connections and sensor wiring should be completed by a qualified electrician.
- Tank sensor or float-switch positioning must be tested before automatic operation.
Warranty, delivery and support
- Warranty: 1 year when purchased from this website.
- Dispatch: 0–1 working day. Expected delivery: 1–5 working days from the order date across India.
- Shipping: free across India; no hidden or extra charge stated for the order.
- Technical support: WhatsApp or call +91 63588 96254.
- To order by phone, send your name, address, contact number, PIN code and model to +91 95121 72271.
Frequently asked questions
Does the panel work with every single phase pump?
No. Choose the correct HP/current variant for the pump nameplate and verify wiring and capacitor requirements before installation.
Does BOA-H include automatic tank-level control?
Yes. This BOA model includes automatic water level control and a cable float switch.
Product videos and selection guidance: BOA-H product videos.
