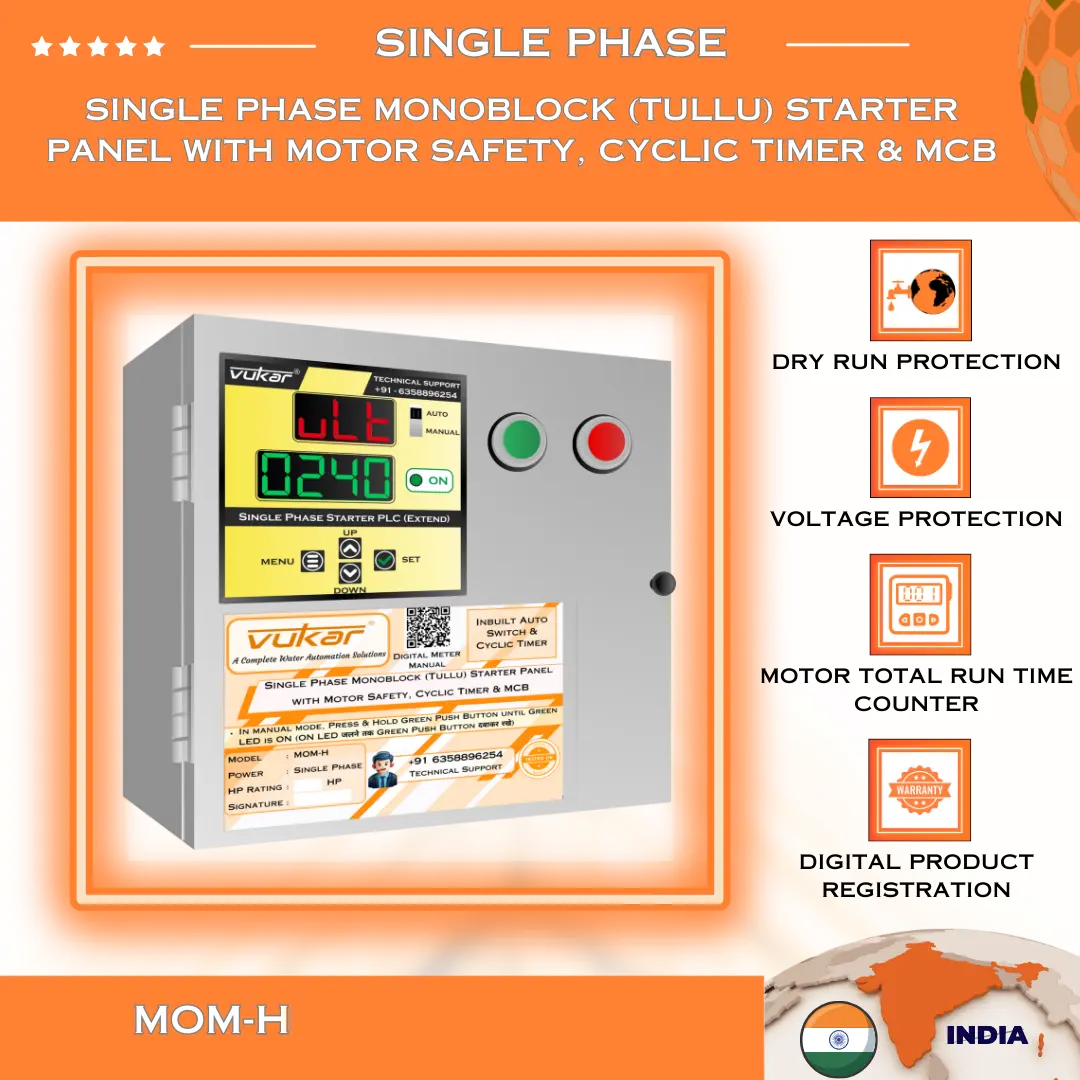

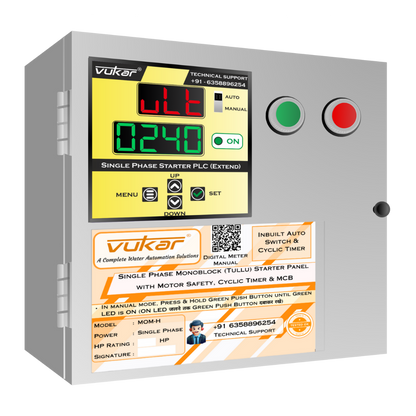

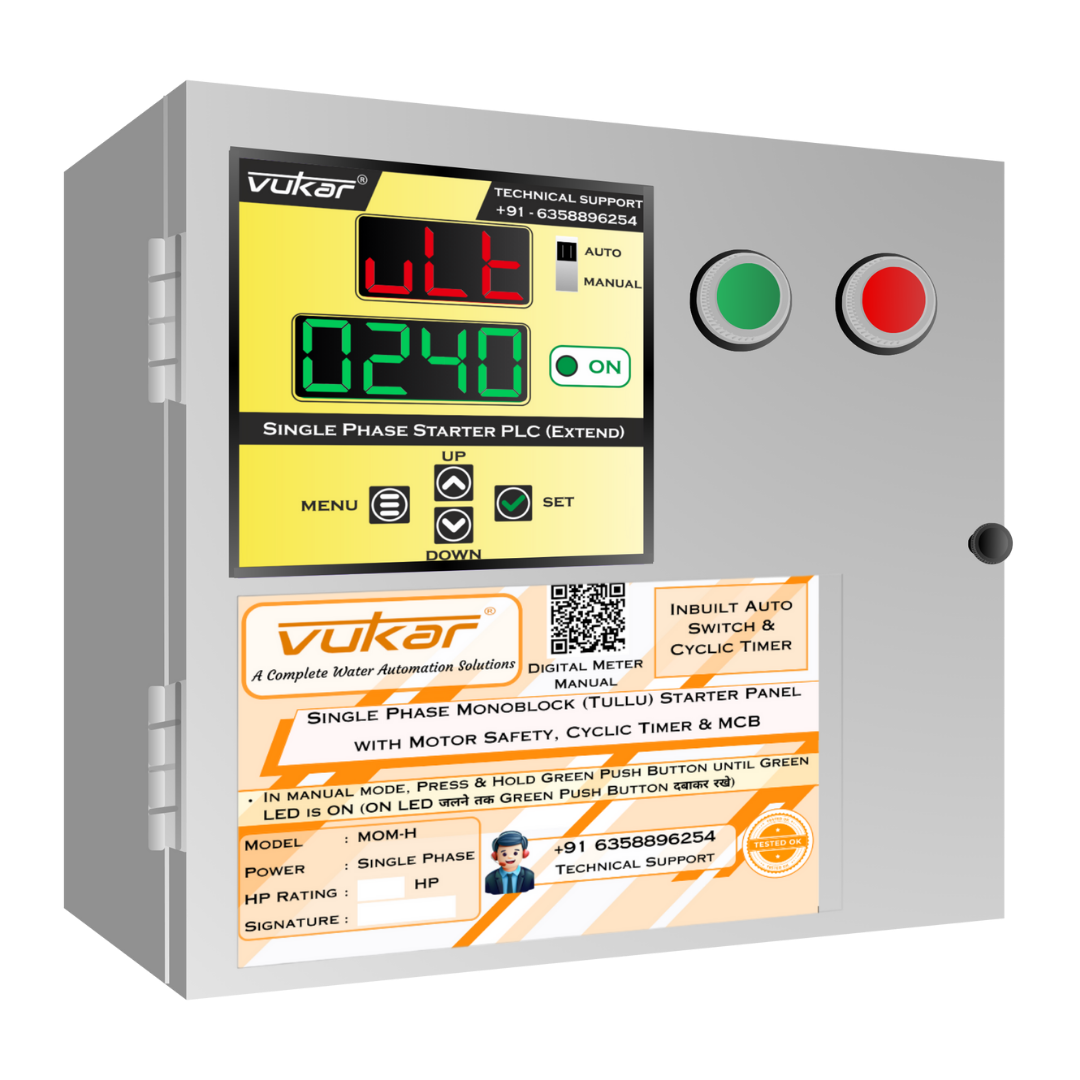

MOM-H Single Phase Monoblock (Tullu) Pump Starter Panel with MCB

MOM-H Single Phase Monoblock (Tullu) Pump Starter Panel with MCB is designed for 0.5–3 HP single phase monoblock (Tullu) pump variants. It combines pump operation controls with dry-run, overload and voltage protection.

VUKAR MOM-H comes from pump control manufacturer Vukar Automation in Rajkot. Share your motor details when asking about MOM-H.

Which application is this model for?

Choose this model for motor protection and timed operation where automatic tank-level control is not required. MOM-H adds an MCB to the Cyclic Timer and Auto Switch package.

What makes MOM-H different?

MOM-H keeps the Cyclic Timer and Auto Switch controls of the base MOM model and adds an inbuilt MCB for panel-circuit protection. It does not include Clock Timer scheduling, Water Level Indicator or automatic Water Level Controller. Choose it when short-circuit protection at the panel is required but tank-level automation is handled separately.

MOM-H HP variants and SKUs

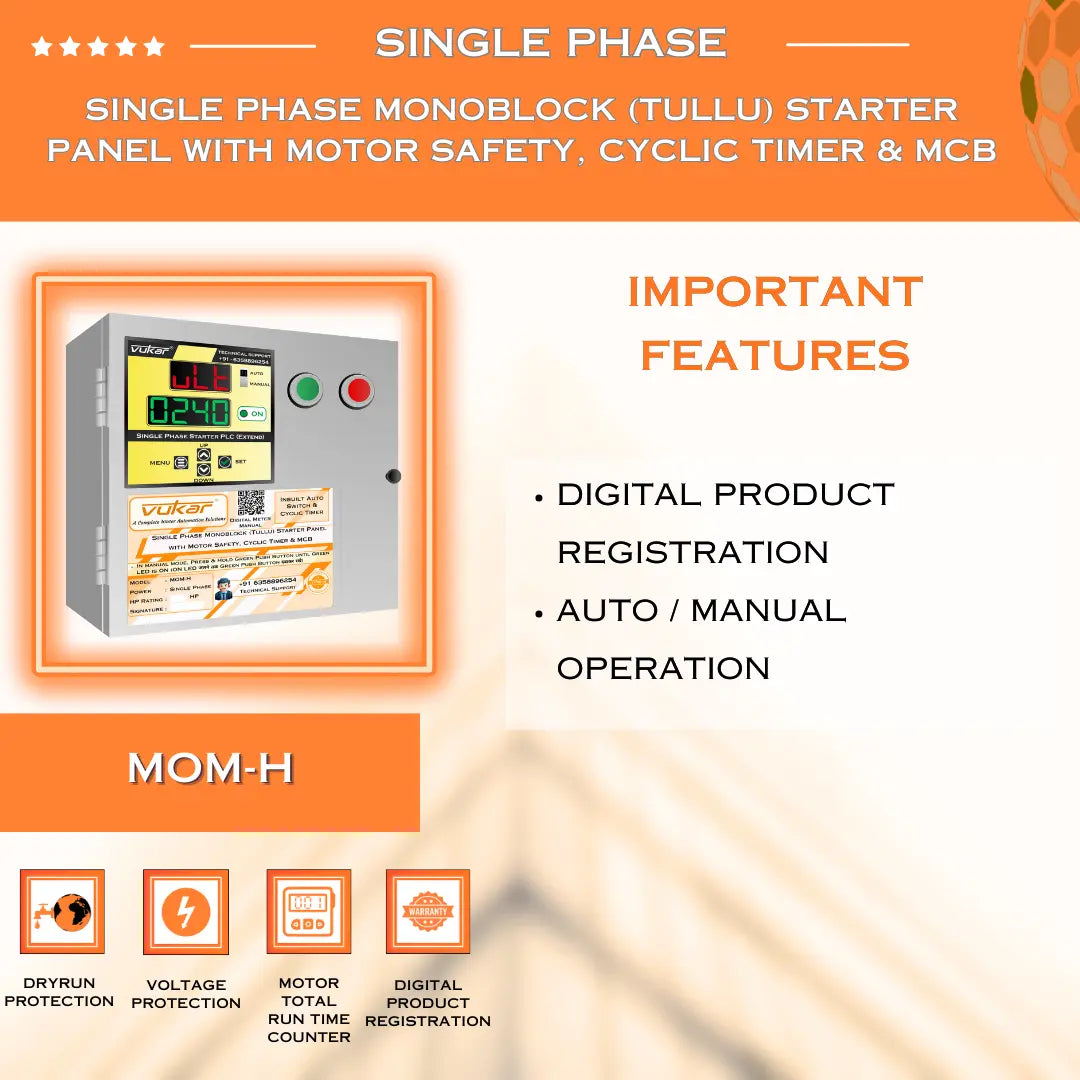

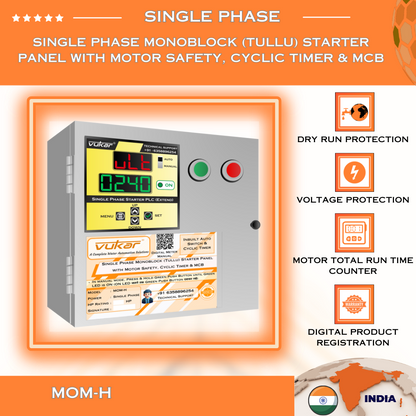

Key functions

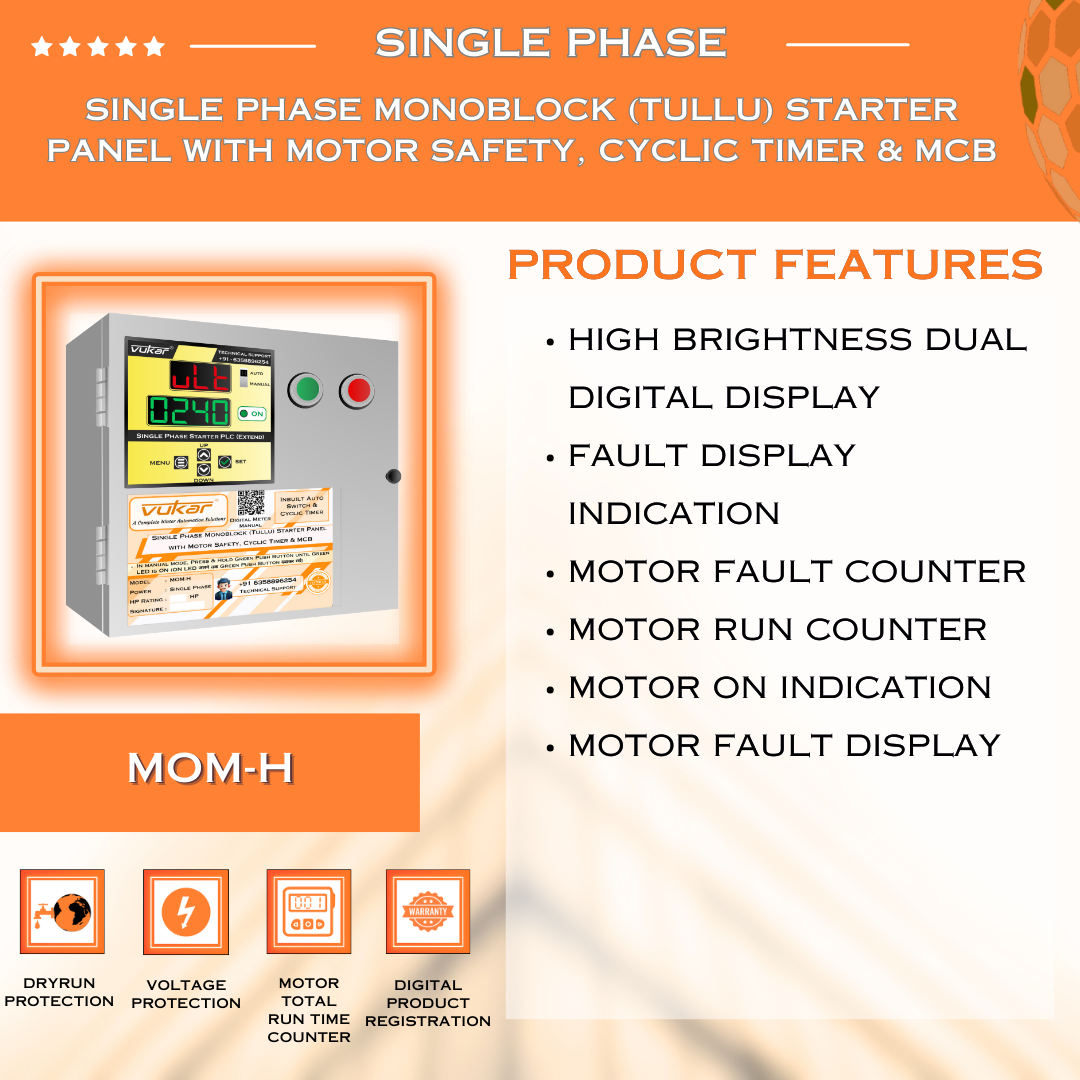

• Motor monitoring: dual digital display for voltage and current, plus motor-on and fault indications for troubleshooting.
• Motor records: fault counter and total run-time counter to support maintenance tracking.

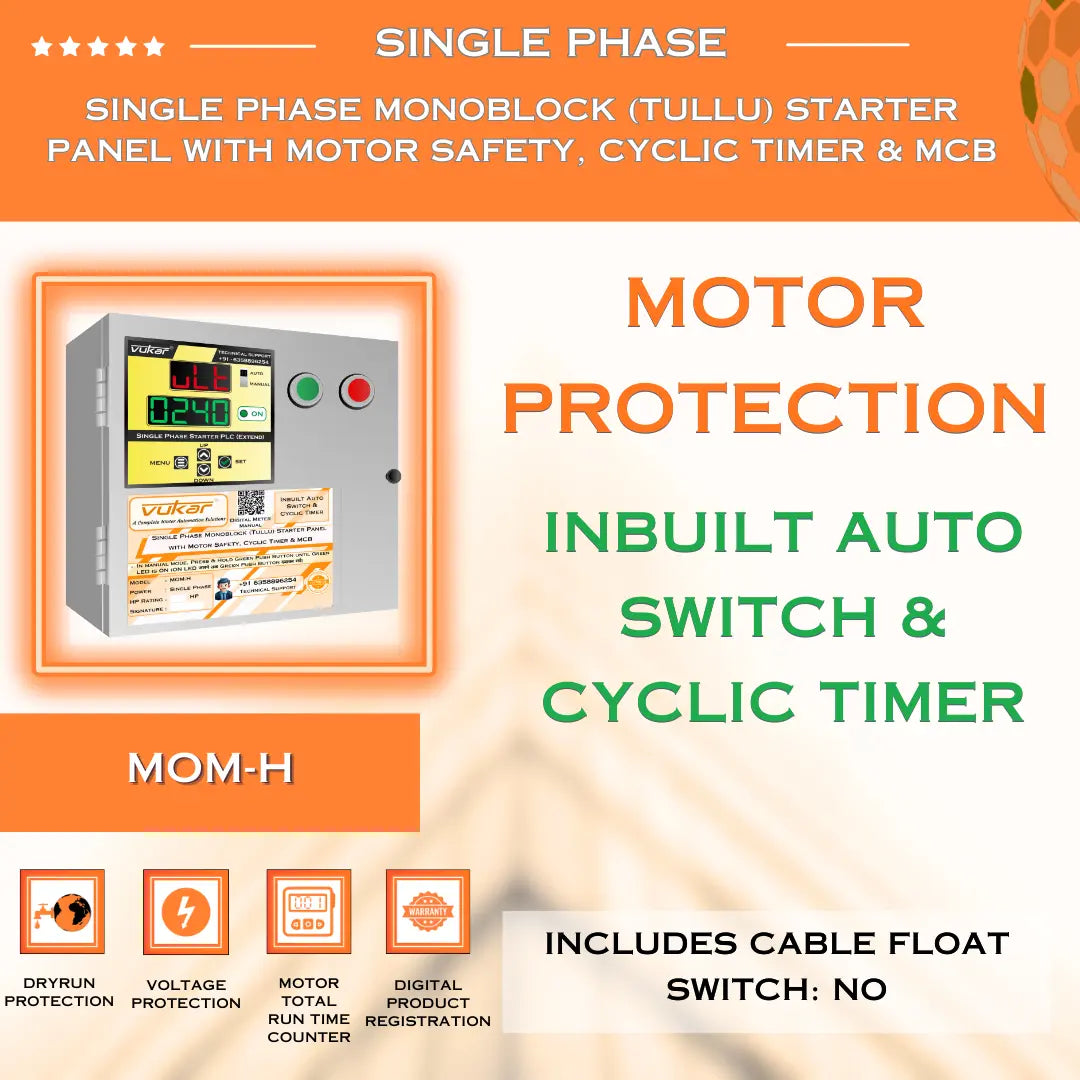

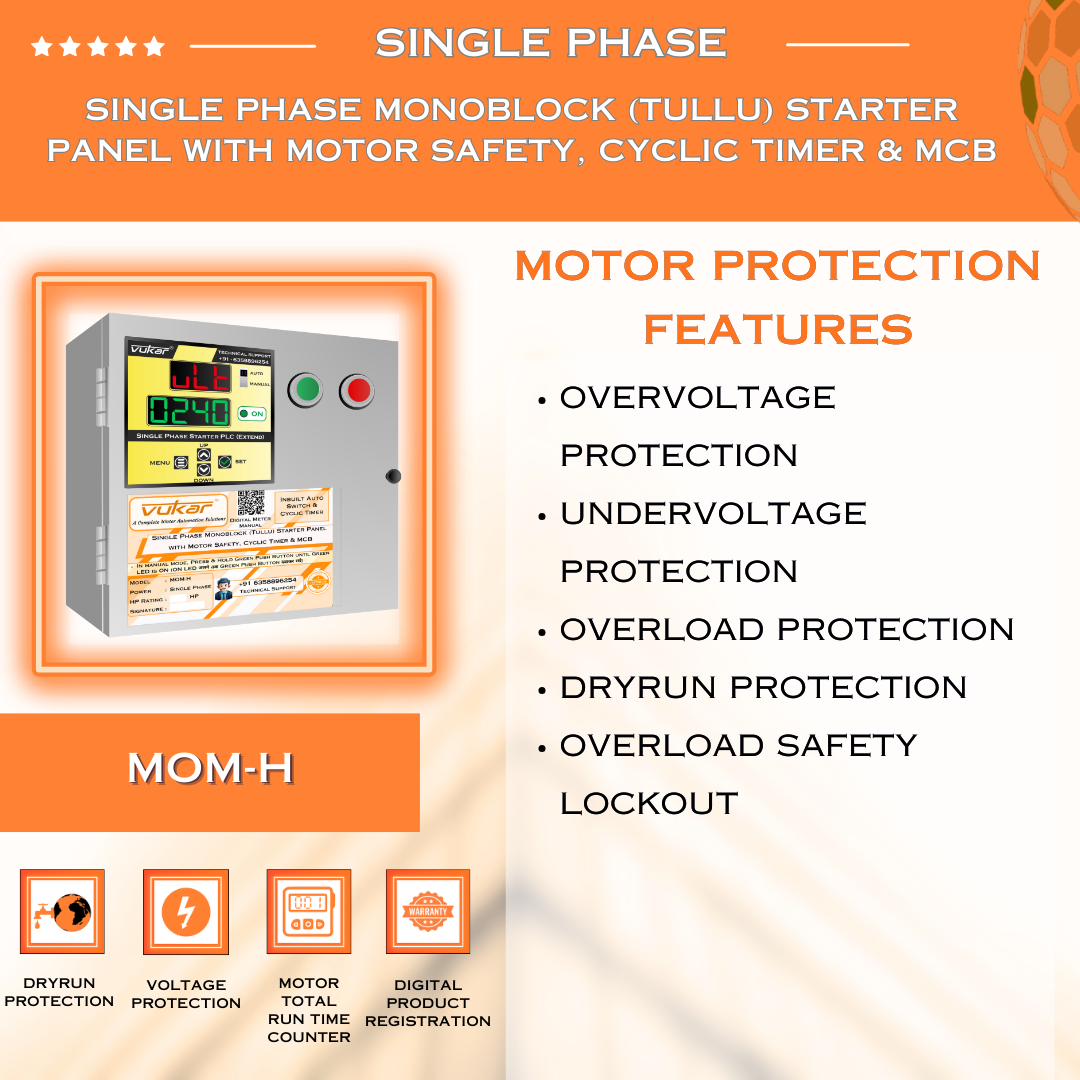

• Motor protection: overvoltage, undervoltage, overload and dry-run protection; check settings and the water source after a trip.

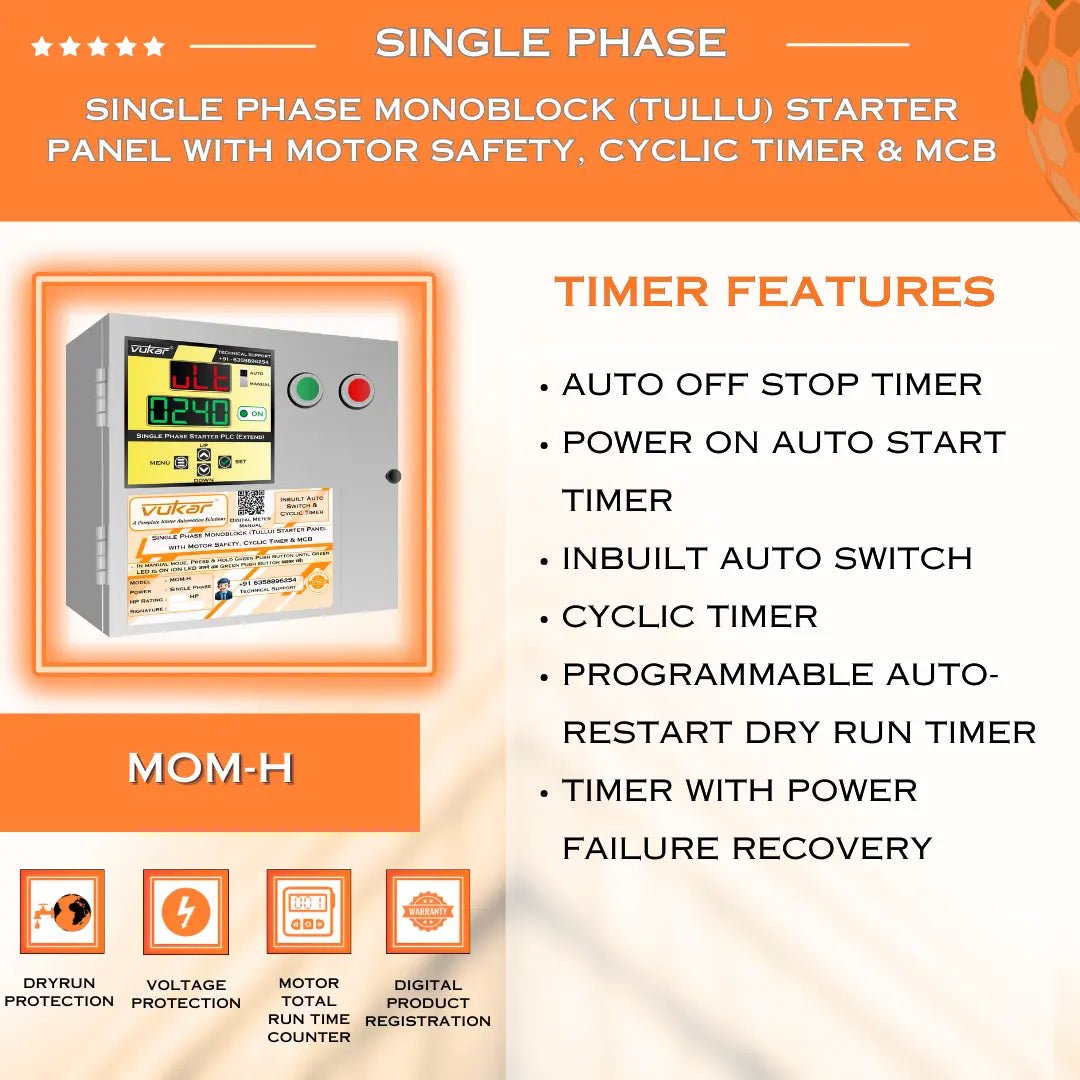

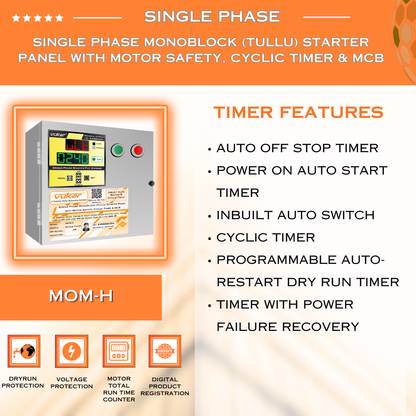

• Timer control: Cyclic Timer for repeating on/off cycles and Auto-Off Stop Timer for limiting a selected run duration.
• MCB: adds short-circuit protection for the panel circuit and wiring; have an electrician verify the correct rating.
• Auto Switch: manages pump operation according to the configured settings when healthy supply returns.
• Restart control: Power-On Auto-Start delay and programmable dry-run retry to manage restart timing after supply or water-source recovery.

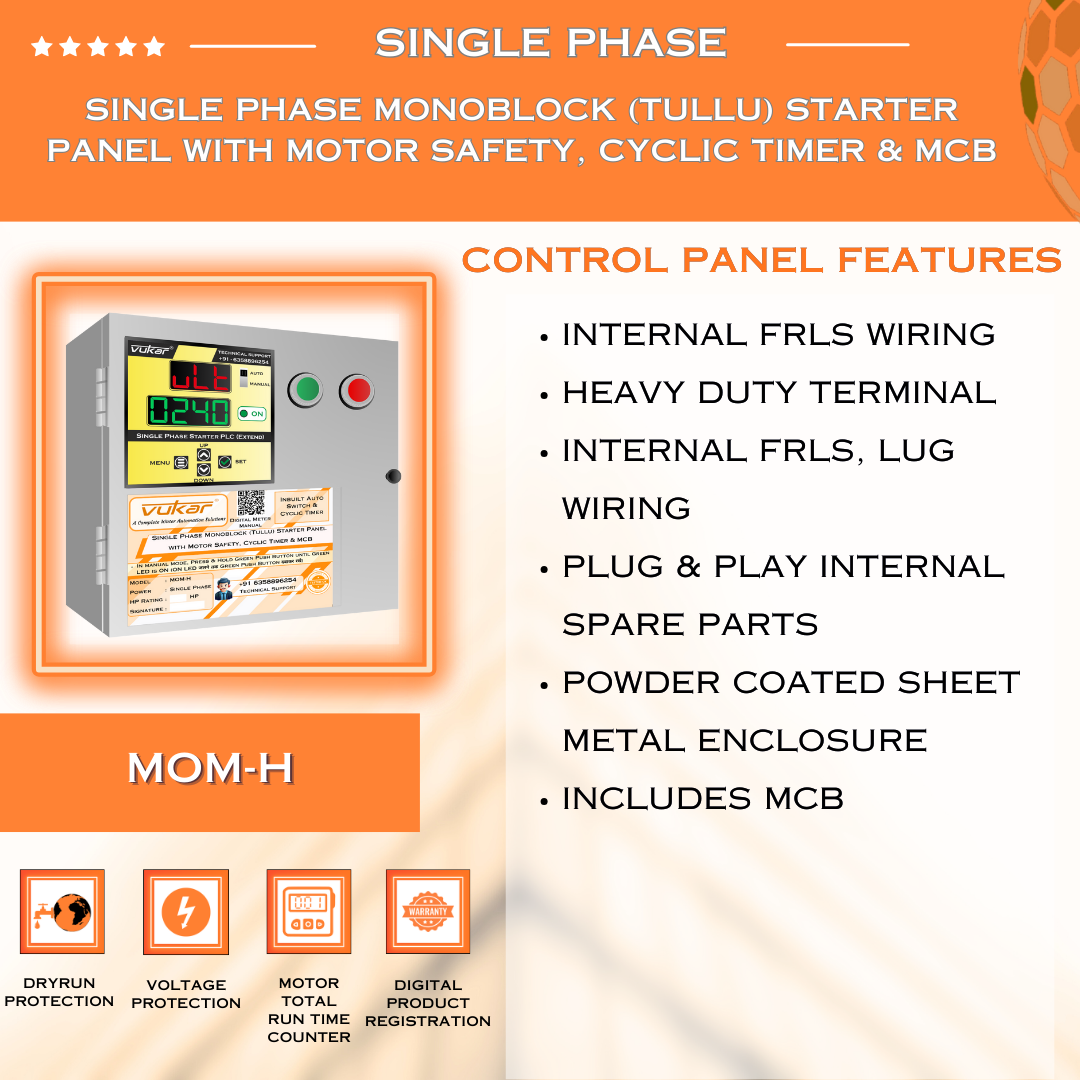

• Construction: powder-coated metal enclosure, FRLS internal wiring and a serviceable terminal layout.

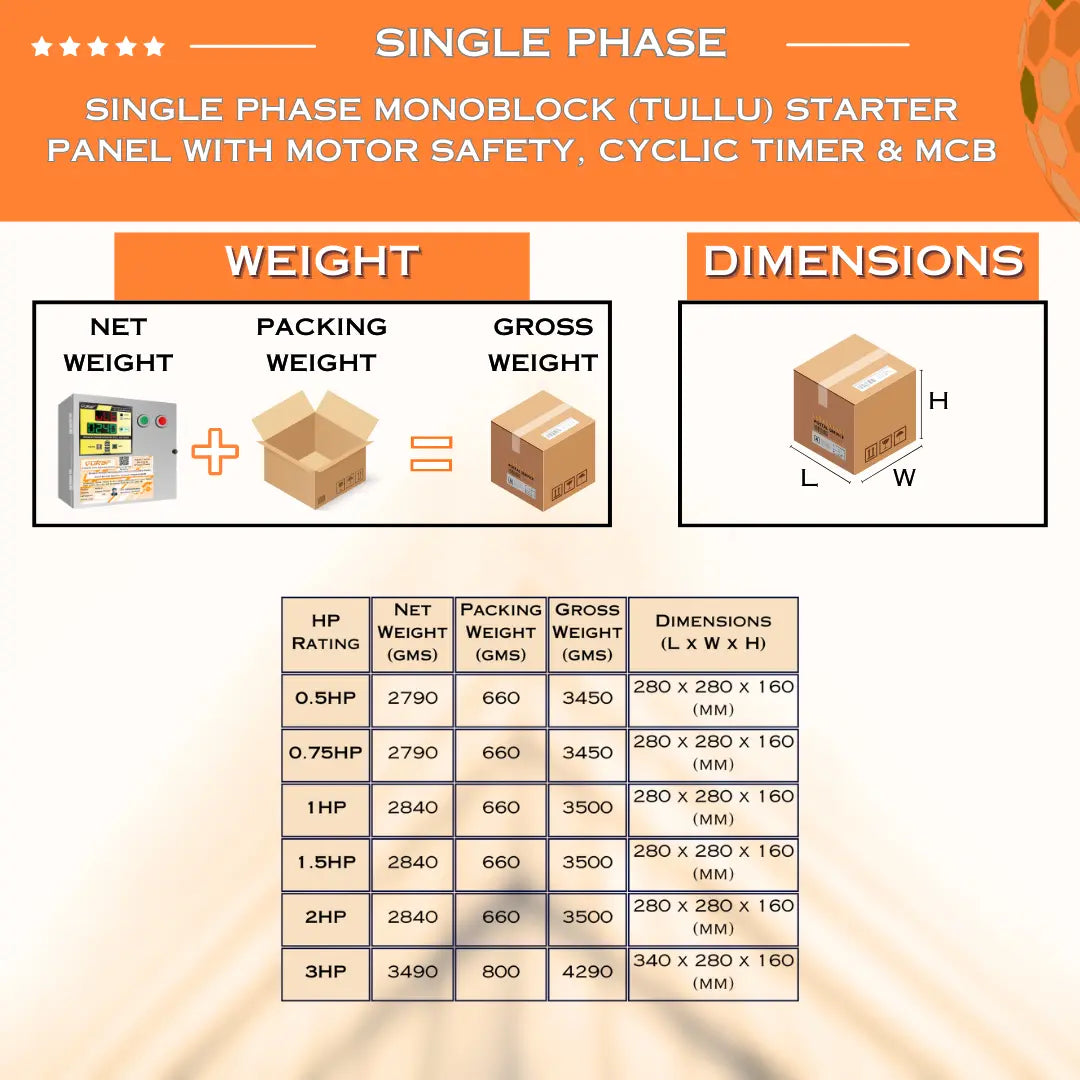

Choose the correct HP variant

Options are available for 0.5, 0.75, 1, 1.5, 2 and 3 HP pumps. Match the selected variant to the pump nameplate. Before ordering, confirm the power supply, full-load current, cable size and starter settings with a qualified electrician.

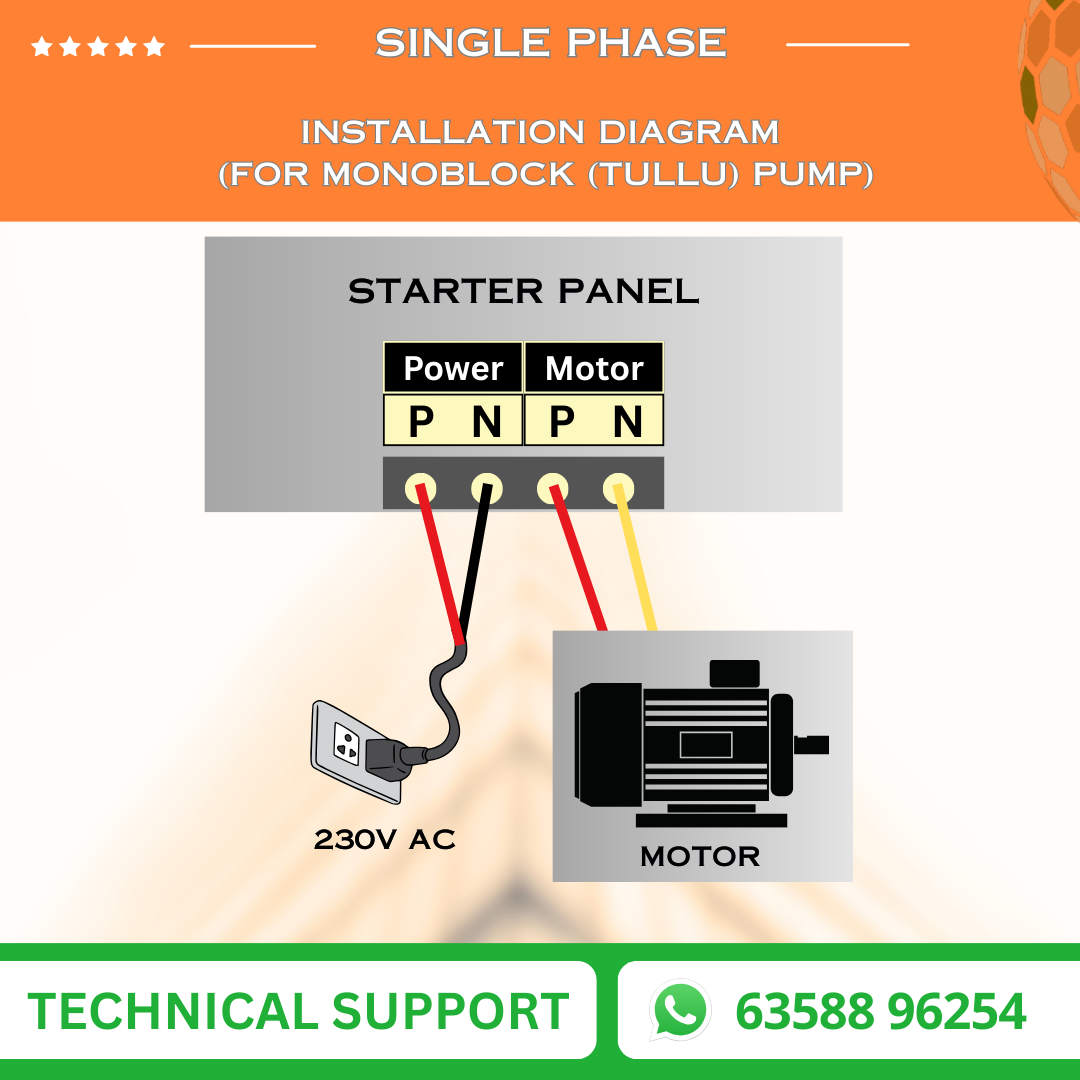

Installation and operating notes

• Install the panel in a dry, ventilated location and provide proper earthing.
• Set voltage, current, dry-run and timer parameters for the connected pump; factory/default values may not suit every installation.

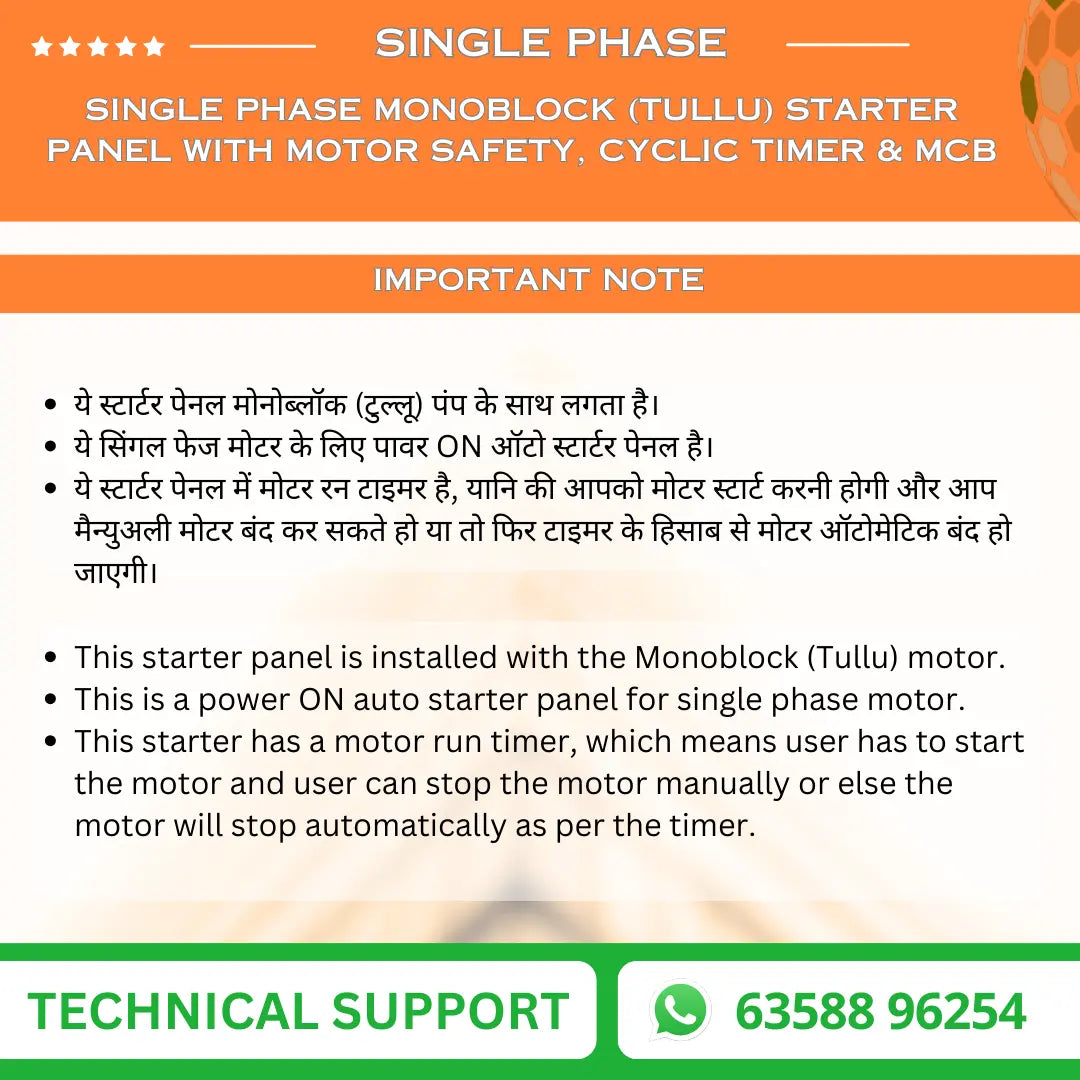

• Use the timer settings for the required pump run and pause periods. This model uses timer-based operation rather than tank-level sensing.
• After a protection trip, identify and correct the cause before restarting the pump.

Warranty, dispatch and support

• 1-year product warranty when purchased from this website.
• Orders are dispatched within 0–1 working day; expected delivery is 1–5 working days from the order date across India.
• Free shipping across India.
• Technical support by WhatsApp or call: +91 63588 96254.

Compare related starter panels

• Compare all single phase monoblock (Tullu) starter panel models
• Compare single phase openwell starter panel models
• View the VUKAR starter-panel comparison and price list

Product images and feature guides

Display and everyday operation

Protection and control features

Timing and automatic control

Installation and ownership

Frequently asked questions

Which pump should I select MOM-H for?

Choose the matching 0.5–3 HP variant for a single phase monoblock (Tullu) pump. Verify the pump nameplate, current, wiring and settings before installation.

Is professional installation required?

Yes. A qualified electrician should complete wiring, earthing, protection settings and commissioning.

Does this model automatically control tank filling?

No. This model does not include automatic Water Level Controller operation.

Product videos and selection guidance: MOM-H product videos.
