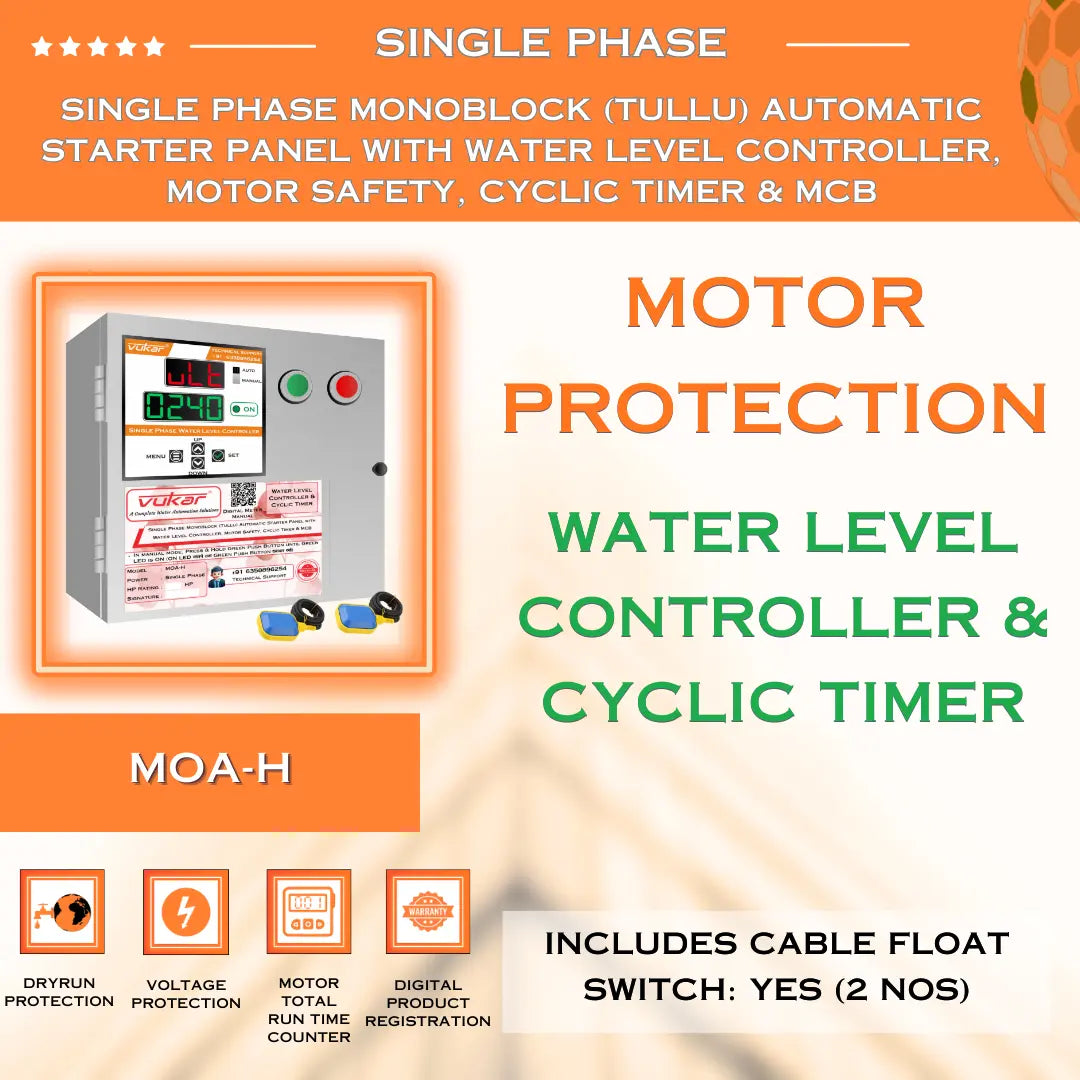

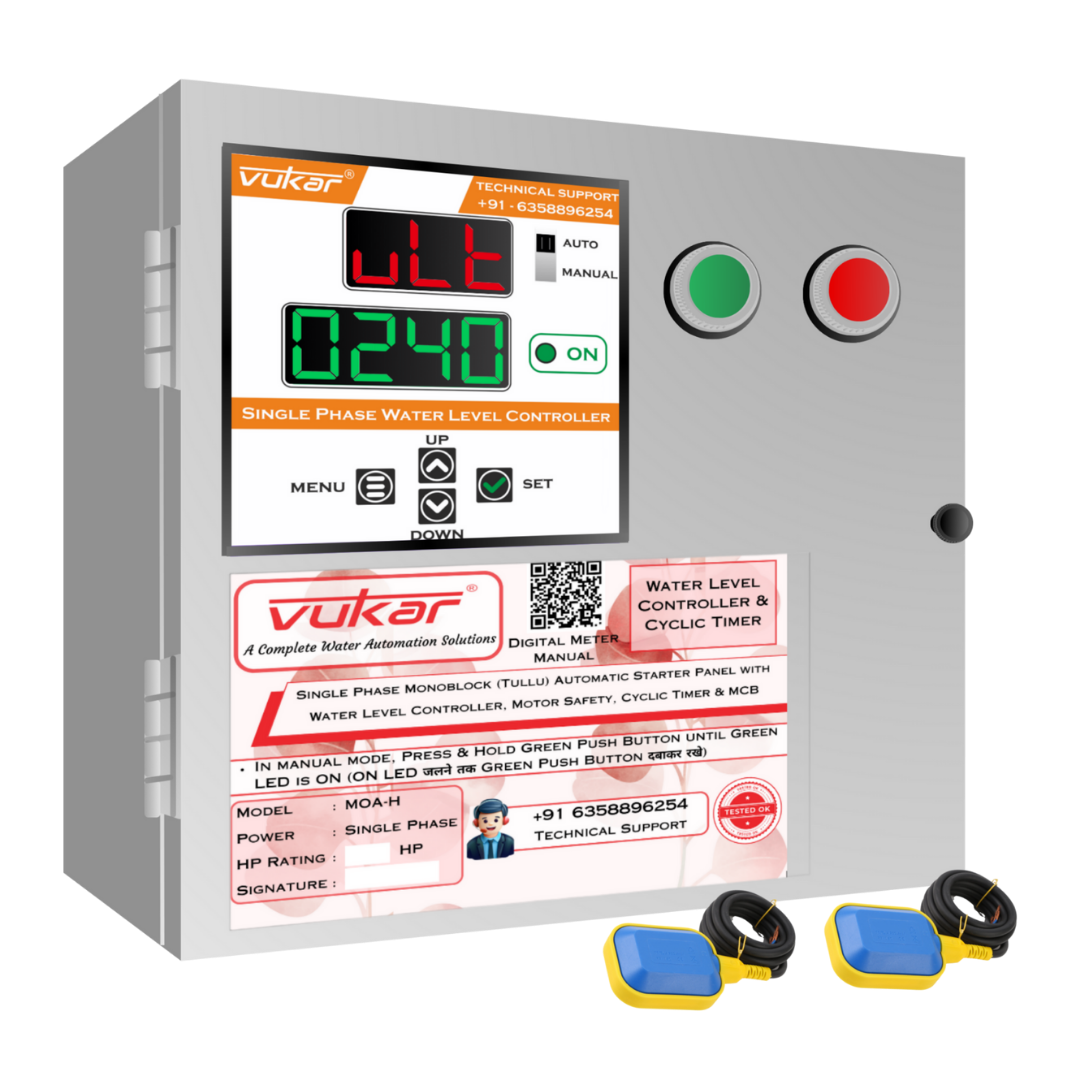

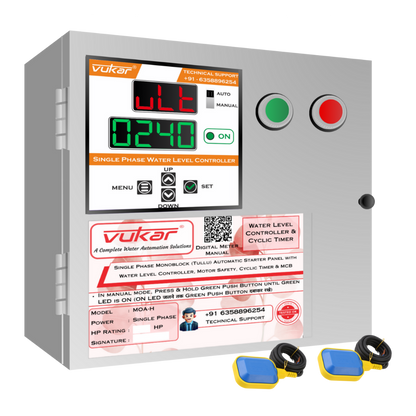

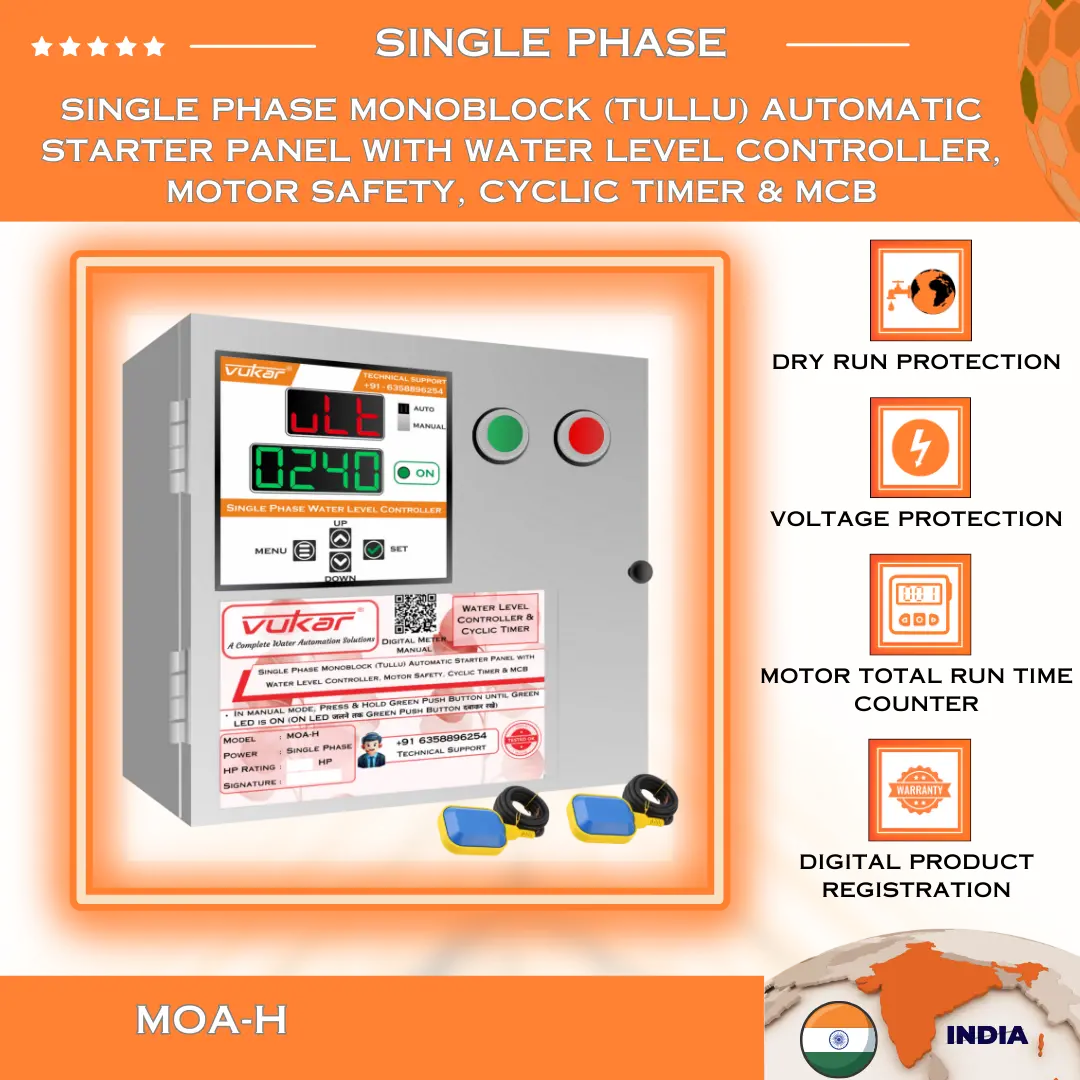

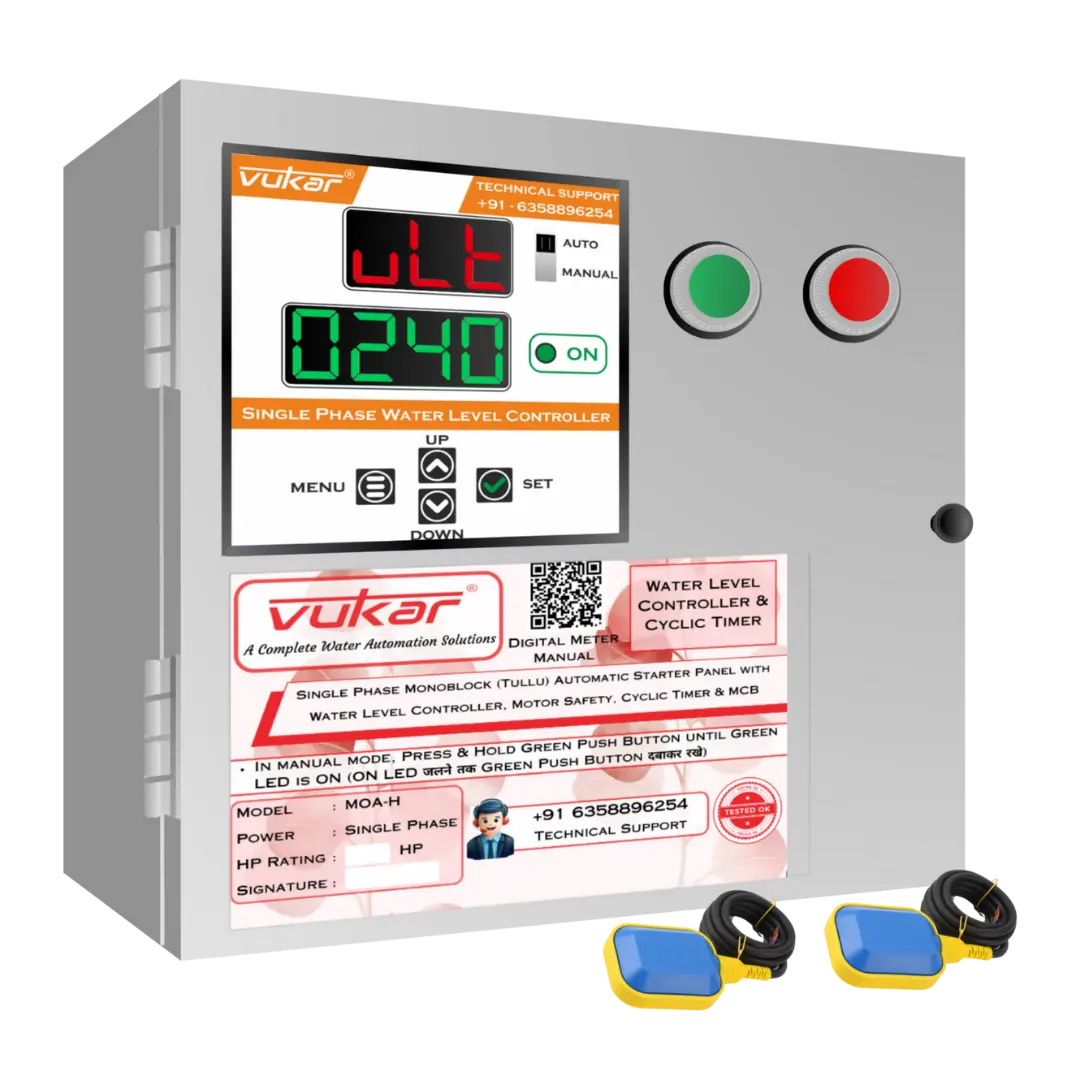

MOA-H Single Phase Monoblock Pump Starter with Controller & MCB

MOA-H Single Phase Monoblock Pump Starter with Controller & MCB is designed for 0.5–3 HP single phase monoblock (Tullu) pump variants. It combines pump operation controls with dry-run, overload and voltage protection.

VUKAR MOA-H comes from pump control manufacturer Vukar Automation in Rajkot. Use the MOA-H code when requesting product support.

Which application is this model for?

Choose this model when you need automatic overhead-tank filling from a single phase monoblock (Tullu) pump. MOA-H adds an MCB to the automatic Water Level Controller and Cyclic Timer package.

What makes MOA-H different?

MOA-H adds an inbuilt MCB to the automatic tank-filling package. It combines Water Level Controller, cable-float sensing, Cyclic Timer and motor protection. Clock Timer scheduling is not included. Choose it when the pump must follow tank levels and panel-circuit MCB protection is also required.

MOA-H HP variants and SKUs

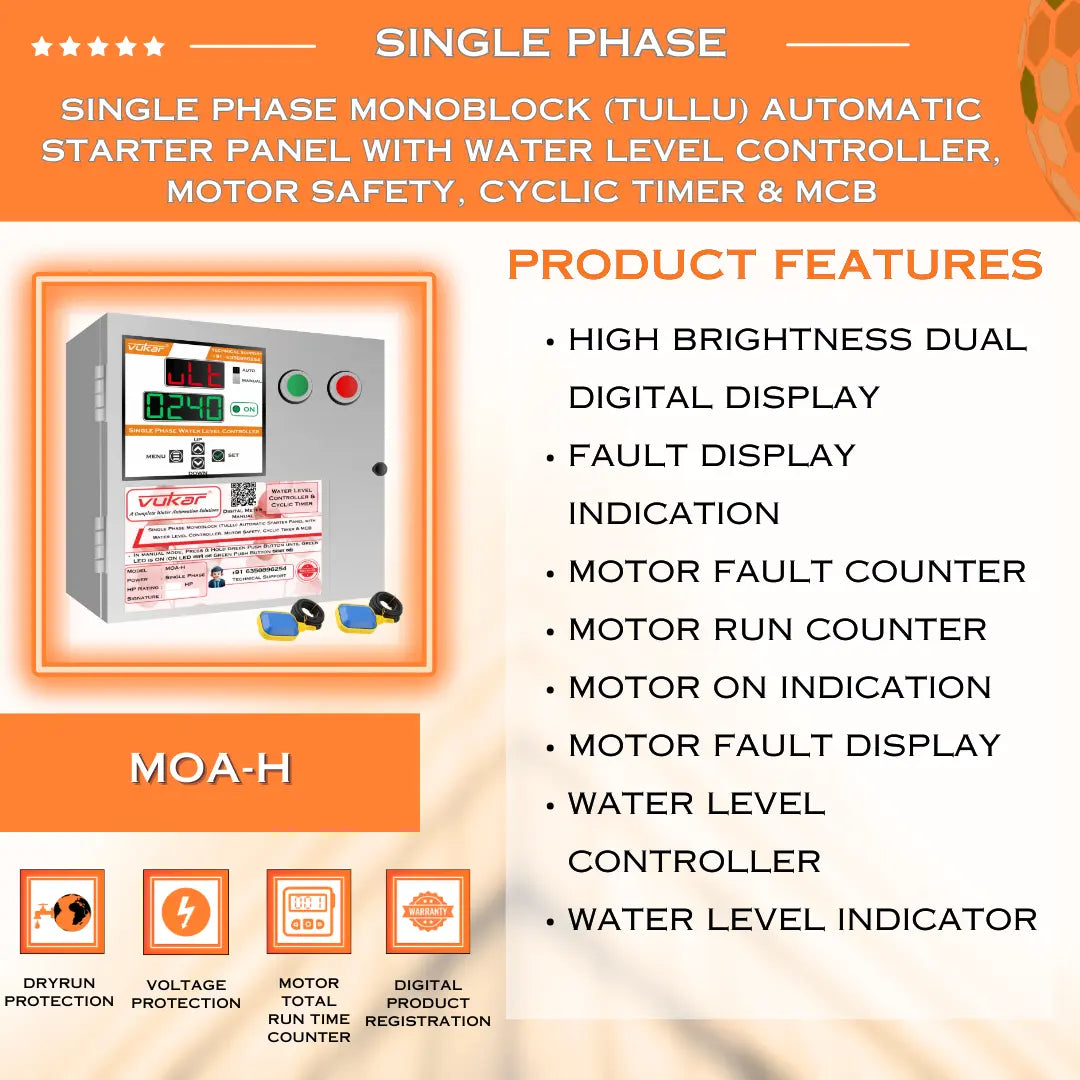

Key functions

• Motor monitoring: dual digital display for voltage and current, plus motor-on and fault indications for troubleshooting.
• Motor records: fault counter and total run-time counter to support maintenance tracking.
• Water Level Controller: uses the supplied cable float switch to start at the configured low level and stop at the full level.
• Water Level Indicator: shows tank status from the supplied cable float switch. This model also includes a Water Level Controller for automatic tank filling.
• MCB: adds short-circuit protection for the panel circuit and wiring; have an electrician verify the correct rating.

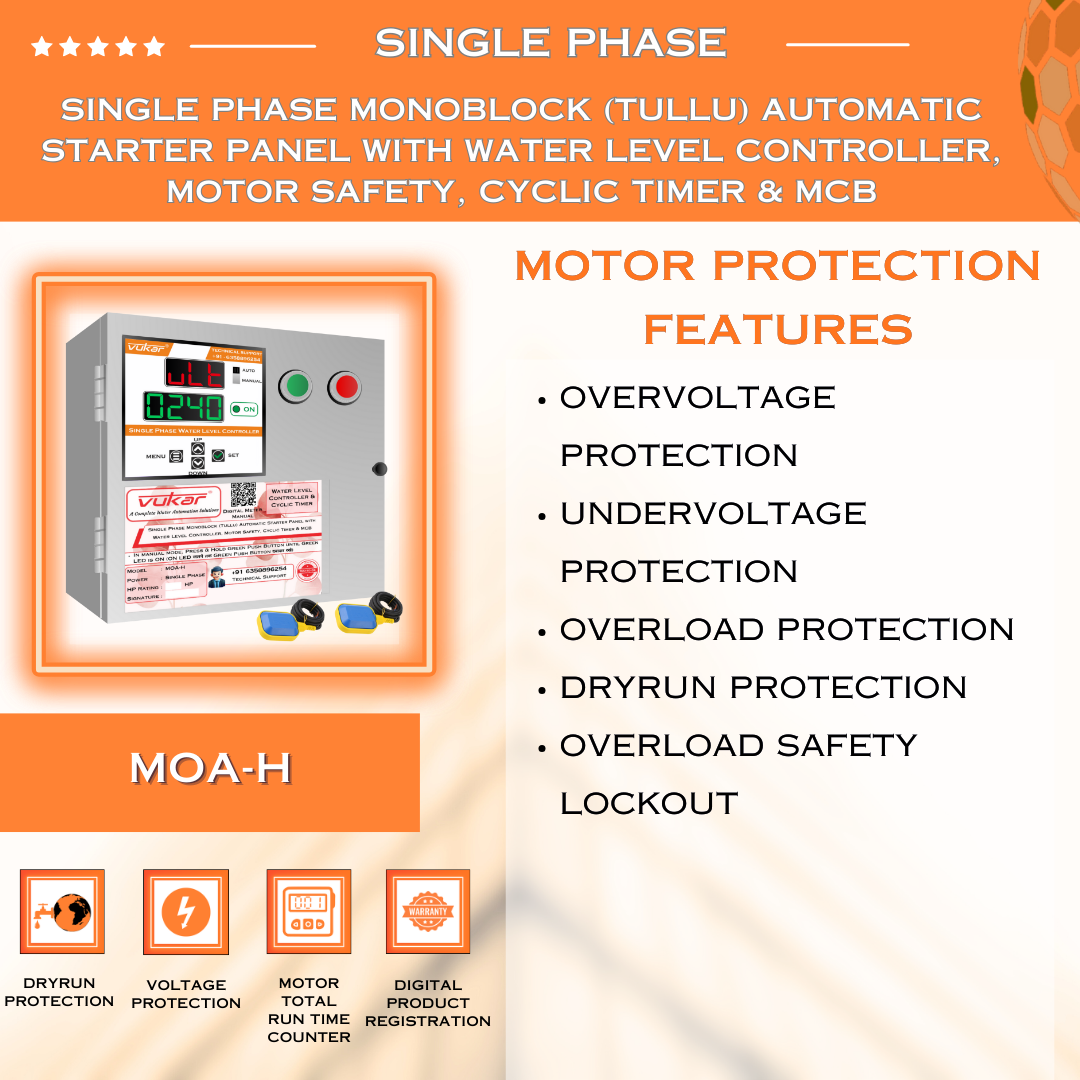

• Motor protection: overvoltage, undervoltage, overload and dry-run protection; check settings and the water source after a trip.
• Timer control: Cyclic Timer for repeating on/off cycles and Auto-Off Stop Timer for limiting a selected run duration.
• Restart control: Power-On Auto-Start delay and programmable dry-run retry to manage restart timing after supply or water-source recovery.

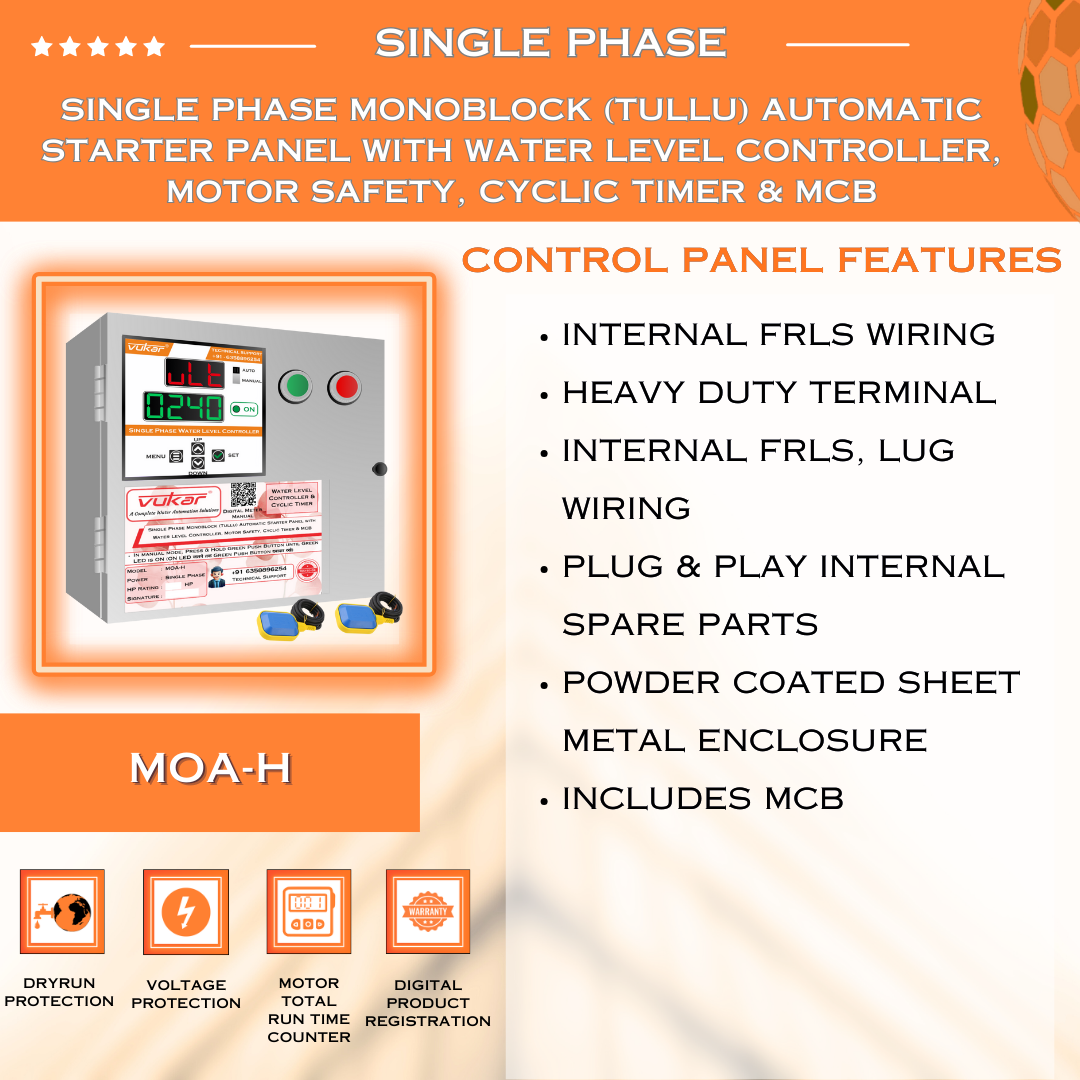

• Construction: powder-coated metal enclosure, FRLS internal wiring and a serviceable terminal layout.

Choose the correct HP variant

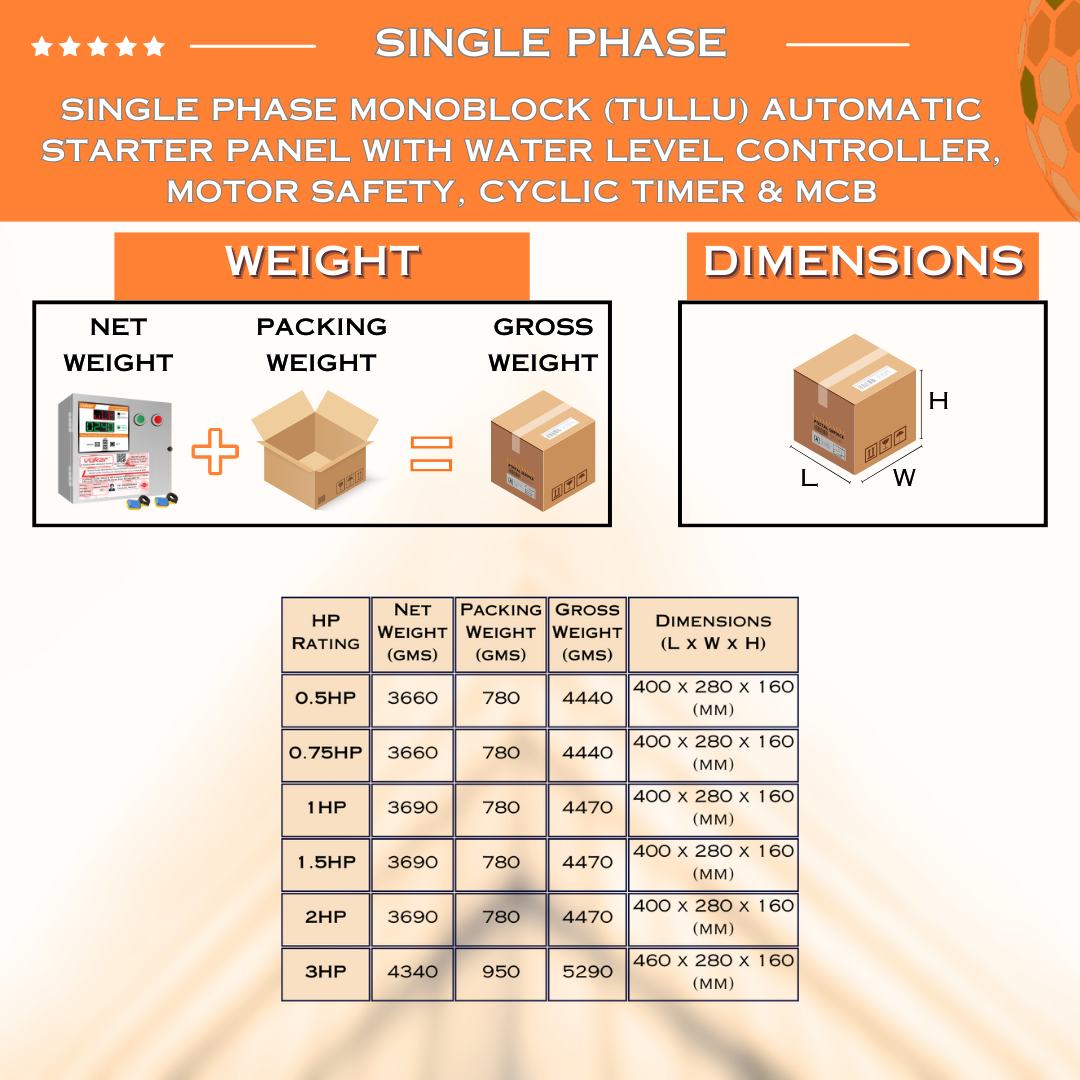

Options are available for 0.5, 0.75, 1, 1.5, 2 and 3 HP pumps. Match the selected variant to the pump nameplate. Before ordering, confirm the power supply, full-load current, cable size and starter settings with a qualified electrician.

Installation and operating notes

• Install the panel in a dry, ventilated location and provide proper earthing.
• Set voltage, current, dry-run and timer parameters for the connected pump; factory/default values may not suit every installation.

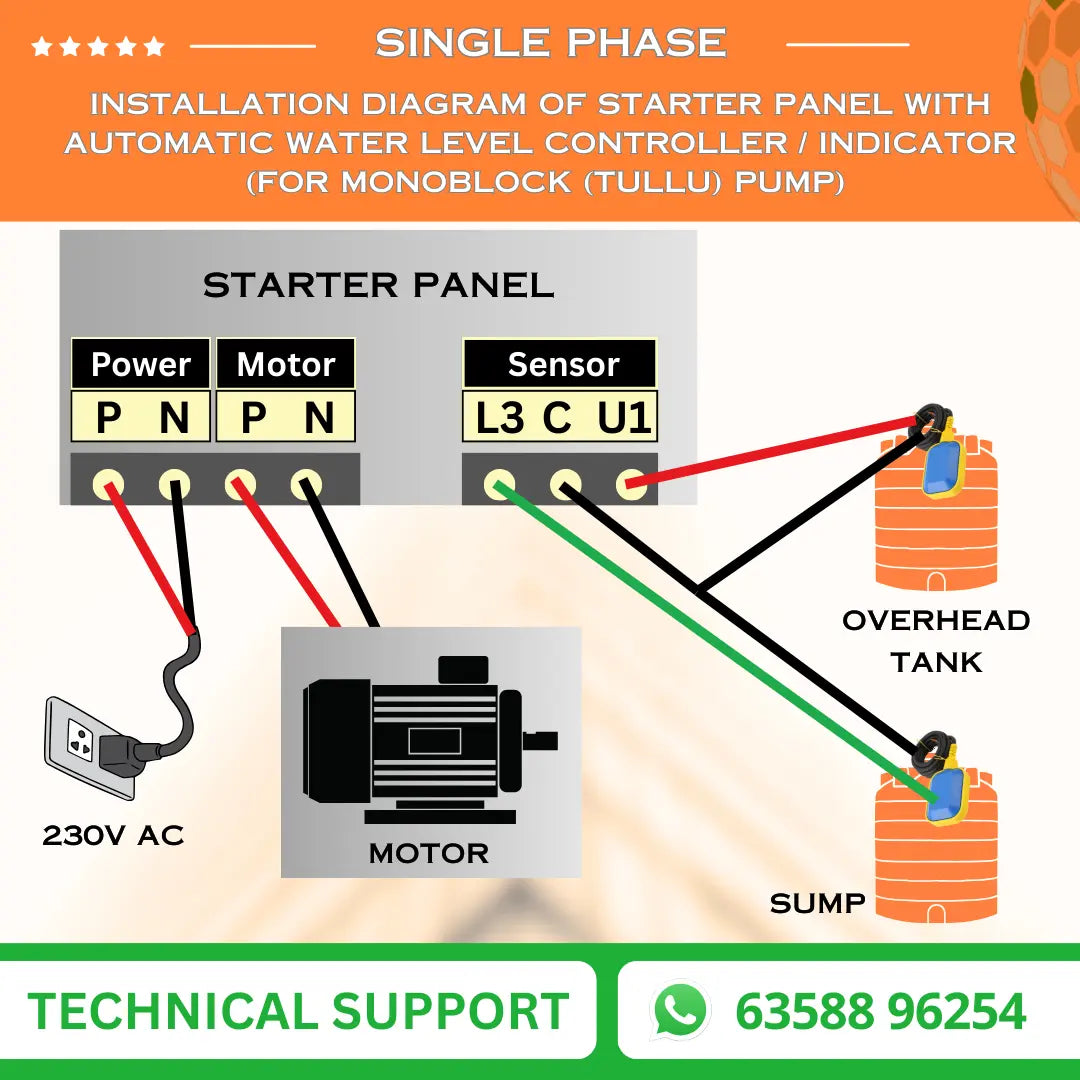

• Water-level functions depend on correct float-switch placement and wiring.
• After a protection trip, identify and correct the cause before restarting the pump.

Warranty, dispatch and support

• 1-year product warranty when purchased from this website.
• Orders are dispatched within 0–1 working day; expected delivery is 1–5 working days from the order date across India.
• Free shipping across India.
• Technical support by WhatsApp or call: +91 63588 96254.

Compare related starter panels

• Compare all single phase monoblock (Tullu) starter panel models
• Compare single phase openwell starter panel models
• View the VUKAR starter-panel comparison and price list

Product images and feature guides

Display and everyday operation

Protection and control features

Timing and automatic control

Installation and ownership

Frequently asked questions

Which pump should I select MOA-H for?

Choose the matching 0.5–3 HP variant for a single phase monoblock (Tullu) pump. Verify the pump nameplate, current, wiring and settings before installation.

Is professional installation required?

Yes. A qualified electrician should complete wiring, earthing, protection settings and commissioning.

Does this model automatically control tank filling?

Yes, when the supplied level sensor is installed and the Water Level Controller is wired and configured correctly.

Product videos and selection guidance: MOA-H product videos.
