DM-SP-LLC-96 Single Phase Motor Protection & Water Level Control

DM-SP-LLC-96 Single Phase Motor Protection & Water Level Control

Rs. 1,549.00
Rs. 2,250.00 Rs. 1,549.00
Sale Sold out
Taxes included. Free shipping across India. View shipping policy.
Customers rate us 4.7/5 based on 72 reviews.
Included Motor Protection + Water Level Control

Selected Google reviews of Vukar Automation

Read reviews on Google (opens in a new tab)Product reviews

DM-SP-LLC-96 single phase motor protection device is designed for pump control circuits that need motor protection with automatic water-level control. It monitors voltage/current and stops the motor-control output when configured electrical faults are detected.

VUKAR DM-SP-LLC-96 comes from pump control manufacturer Vukar Automation in Rajkot. Include DM-SP-LLC-96 in your enquiry for a dealer quote.

When should you choose this model?

Choose DM-SP-LLC-96 when you need automatic pump control by tank level plus repeated ON/OFF cyclic scheduling. Confirm the phase, wiring, control circuit and motor rating before installation.

Core functions

  • Voltage/current monitoring and fault indication

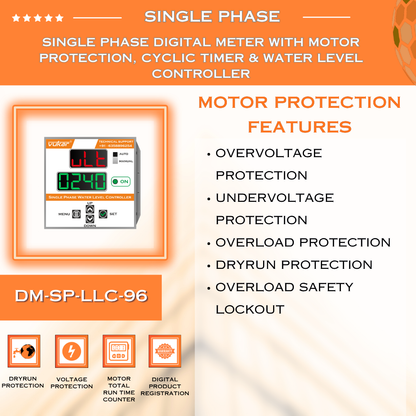

  • Overvoltage, undervoltage, overload and dry-run protection
  • Cyclic Timer, Auto-Off Stop Timer and power-on start delay
  • Fault counter, total run-time counter and automatic/manual modes
  • Automatic water-level control and indication through connected level inputs

Installation and setup

  • Install with a compatible pump starter or contactor control circuit.
  • Use a qualified electrician to verify wiring, earthing and the motor rating.
  • Set voltage, current, dry-run and timer parameters for the connected pump.
  • Water-level operation depends on correct level-input wiring and sensor placement.
  • After a trip, identify and correct the fault before restart.

Warranty, dispatch and support

  • 1-year product warranty when purchased from this website.
  • Orders are dispatched within 0–1 working day; expected delivery is 1–5 working days from the order date across India.
  • Free shipping across India.
  • Technical support by WhatsApp or call: +91 63588 96254.

Compare before buying

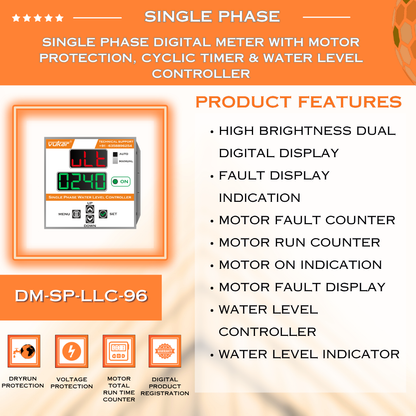

Product feature guide

Display and everyday operation

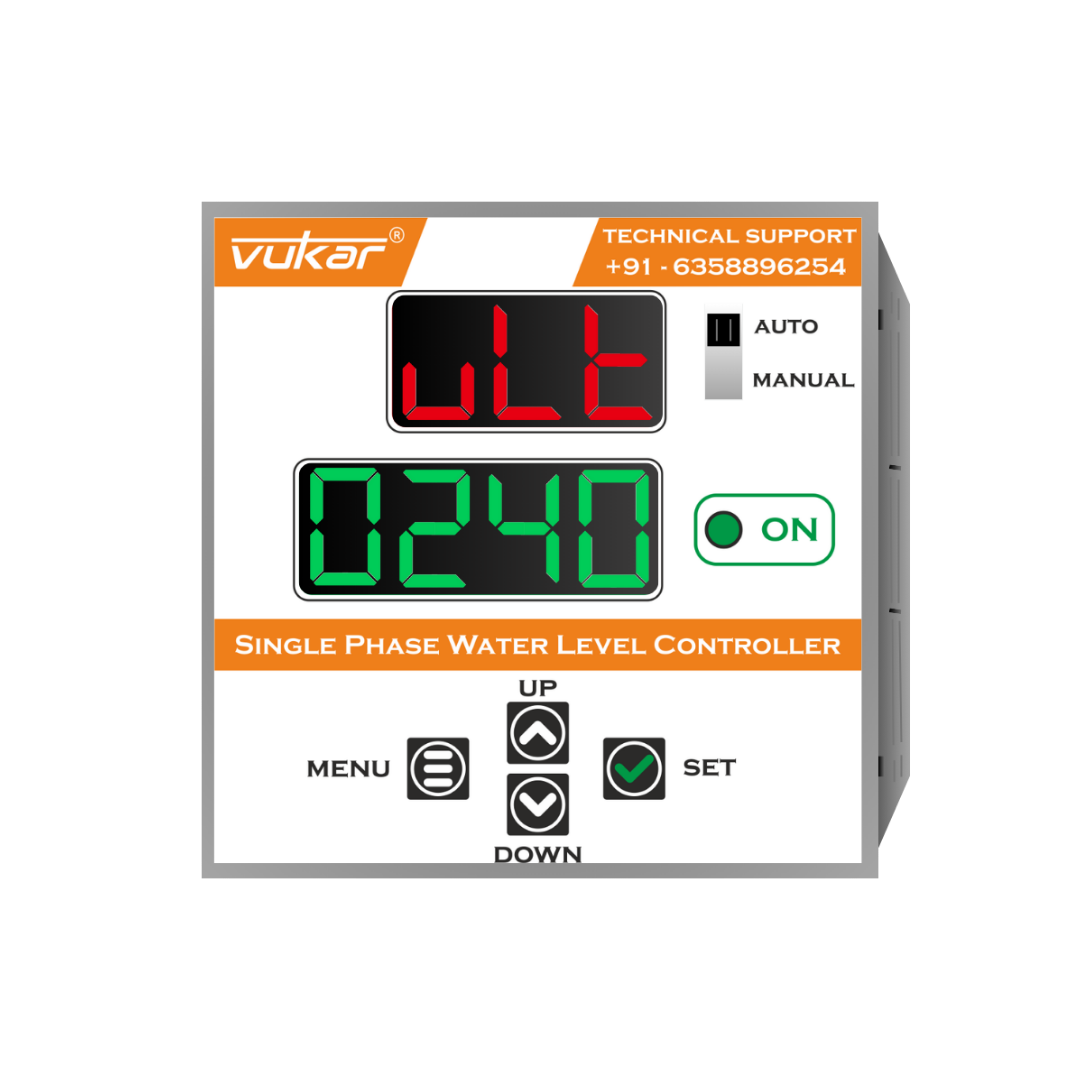

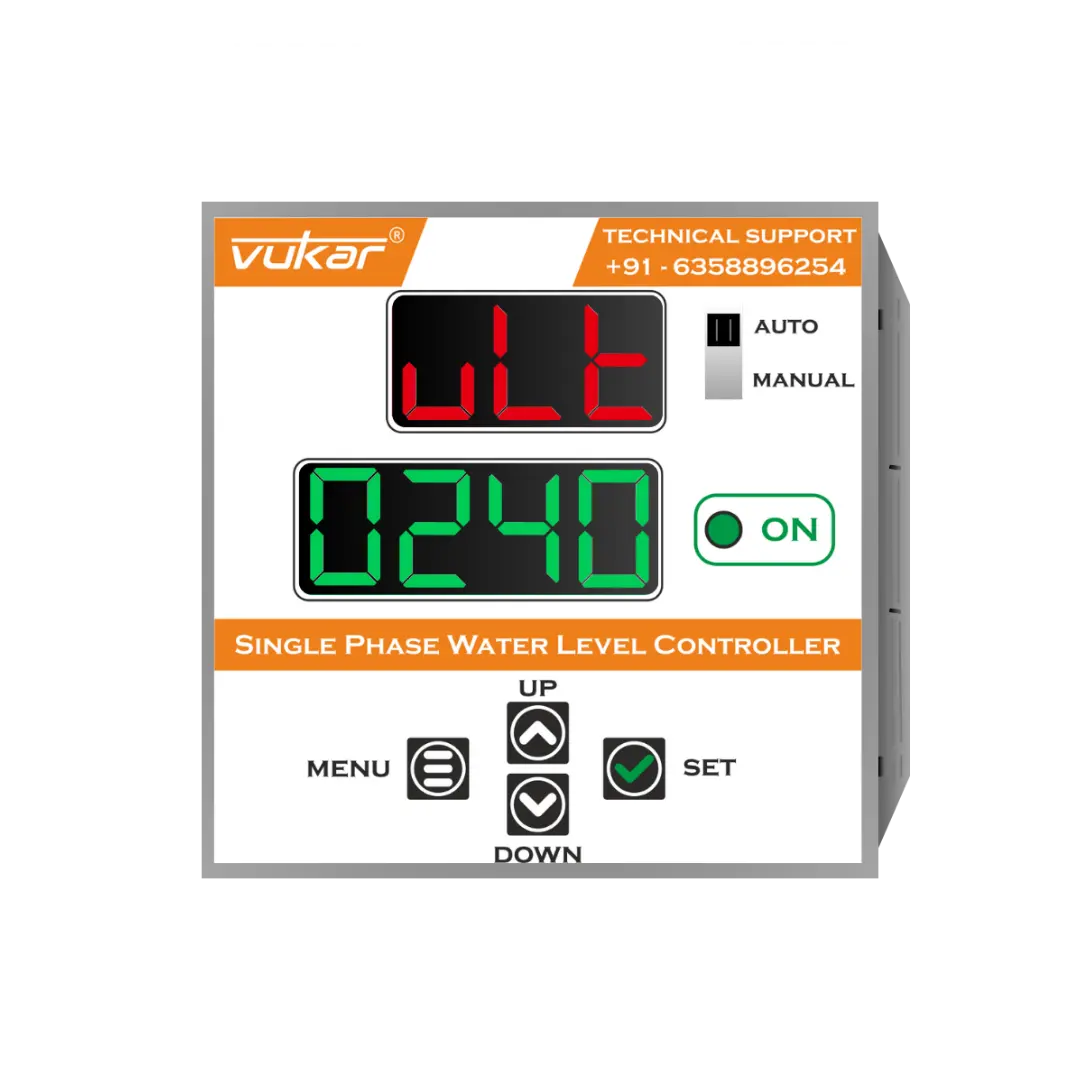

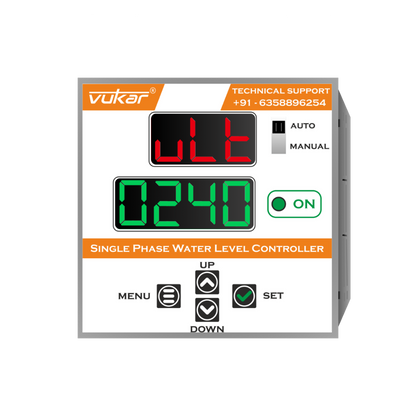

Dual digital display – DM-SP-LLC-96

Dual digital display

Shows single phase voltage and current during operation.

Fault indication – DM-SP-LLC-96

Fault indication

Displays detected motor faults to support troubleshooting.

Motor fault counter – DM-SP-LLC-96

Motor fault counter

Records the number of motor-fault events.

Motor run-time counter – DM-SP-LLC-96

Motor run-time counter

Records cumulative motor running time for maintenance reference.

Motor status indication – DM-SP-LLC-96

Motor status indication

Shows motor ON and fault status.

Protection and control features

Automatic water-level control – DM-SP-LLC-96

Automatic water-level control

Uses connected level inputs to start and stop the pump according to tank level.

Water-level indication – DM-SP-LLC-96

Water-level indication

Shows the detected tank-level status.

Voltage protection – DM-SP-LLC-96

Voltage protection

Stops the control output when voltage moves outside configured limits.

Overload and dry-run protection – DM-SP-LLC-96

Overload and dry-run protection

Stops the motor-control output during configured overload or dry-run conditions.

Overload safety lockout – DM-SP-LLC-96

Overload safety lockout

Keeps the control output stopped after an overload until reset.

Timing and automatic control

Auto-off stop timer – DM-SP-LLC-96

Auto-off stop timer

Stops the pump after the configured running duration.

Power-on start delay – DM-SP-LLC-96

Power-on start delay

Adds a configured delay before restart after power returns.

Built-in auto switch – DM-SP-LLC-96

Built-in auto switch

Provides automatic control when the configured supply conditions are healthy.

Cyclic timer – DM-SP-LLC-96

Cyclic timer

Runs repeated ON/OFF cycles according to configured timings.

Starting-torque timing – DM-SP-LLC-96

Starting-torque timing

Controls the configured starting sequence on supported single phase installations.

Dry-run restart timer – DM-SP-LLC-96

Dry-run restart timer

Retries after the configured recovery delay following a dry-run stop.

Timer power-failure recovery – DM-SP-LLC-96

Timer power-failure recovery

Restores the configured timer cycle after a power interruption.

Installation and ownership

Digital registration and operating modes – DM-SP-LLC-96

Digital registration and operating modes

Supports digital product registration and automatic/manual operation modes.

Technical support – DM-SP-LLC-96

Technical support

WhatsApp and call support is available at +91 63588 96254.

Frequently asked questions

Where does this protection device fit?

Use it with a compatible motor starter or contactor control circuit. The starter power circuit remains required for the installation.

How should the device be set up for my pump?

A qualified electrician should set the parameters to match the motor nameplate, supply and installation.

Is level-sensor wiring required?

Yes. Automatic water-level control requires compatible level inputs and correct sensor placement.

Product videos and selection guidance: Digital meter selection: display examples.
