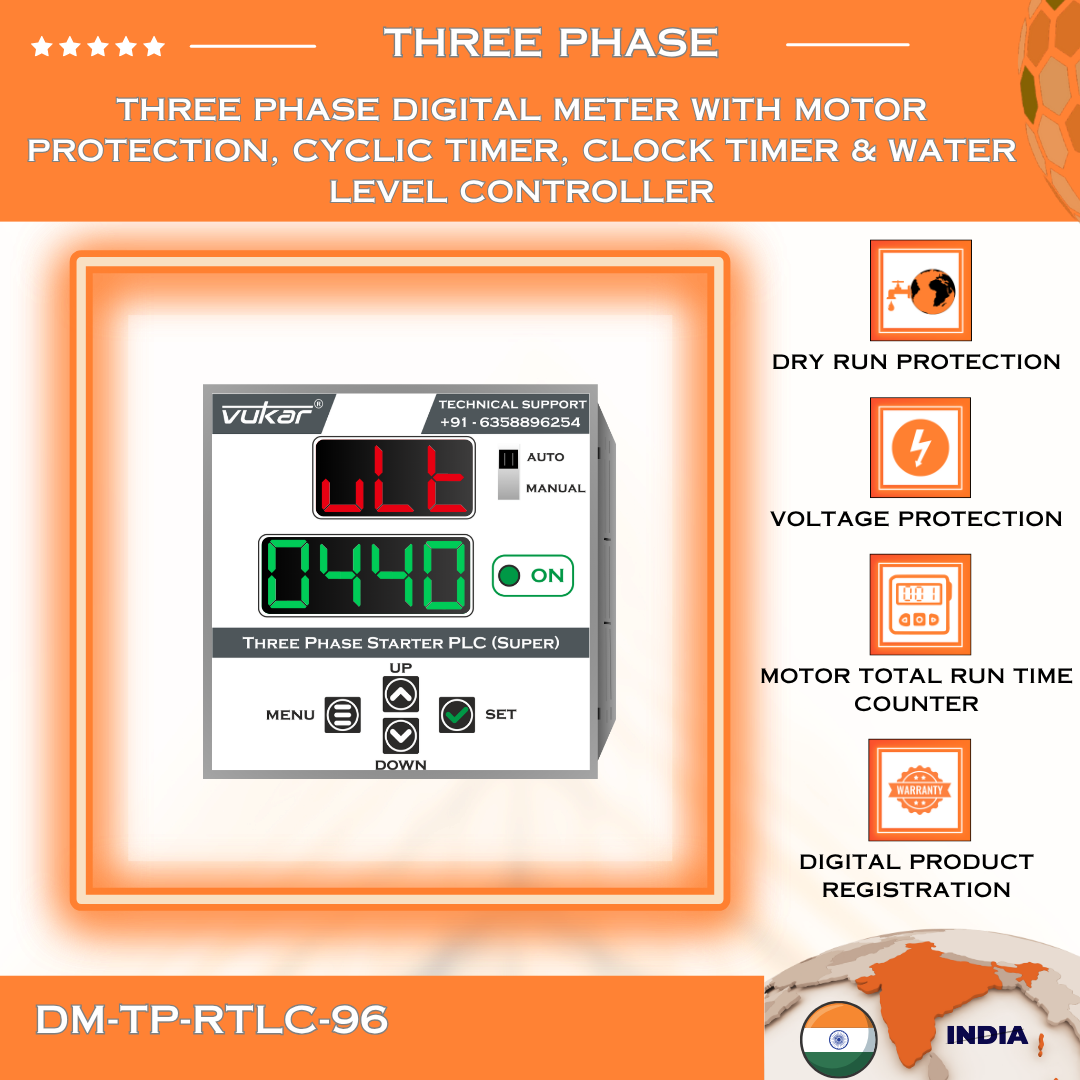

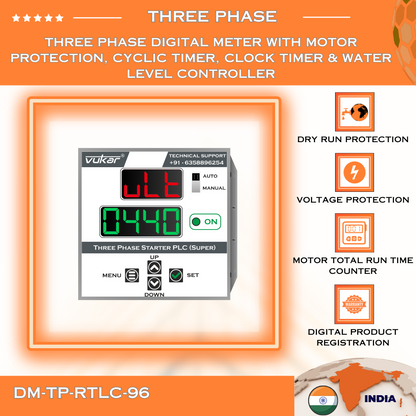

DM-TP-RTLC-96 Motor Protection, Water Level & Clock Timer

DM-TP-RTLC-96 Motor Protection, Water Level & Clock Timer

Rs. 2,549.00
Rs. 3,750.00 Rs. 2,549.00
Sale Sold out
Taxes included. Free shipping across India. View shipping policy.
Customers rate us 4.7/5 based on 72 reviews.
Included Motor Protection + Water Level Control + Clock Timer

Selected Google reviews of Vukar Automation

Read reviews on Google (opens in a new tab)Product reviews

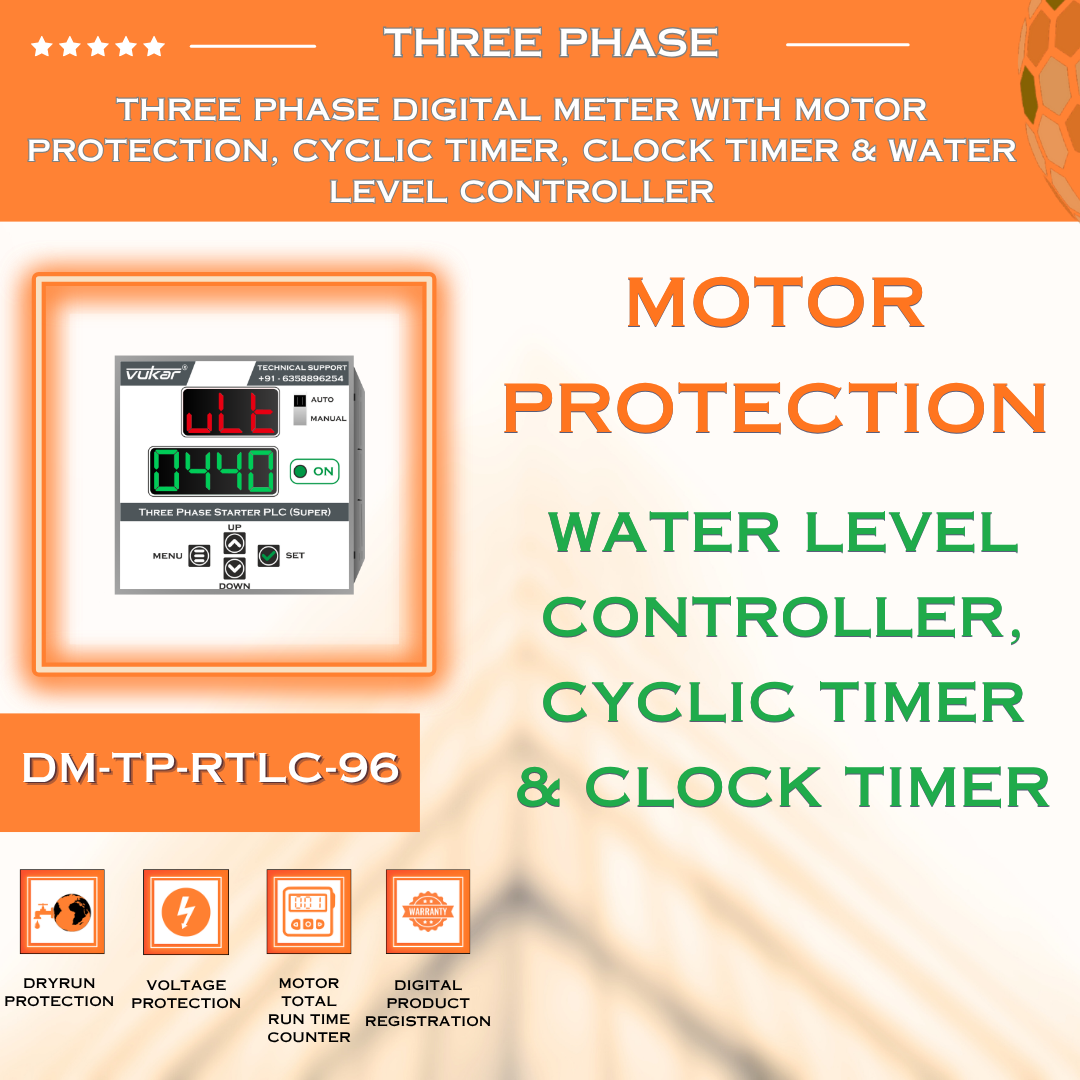

DM-TP-RTLC-96 three phase motor protection device is designed for pump control circuits that need motor protection with water-level, clock and cyclic control. It monitors voltage/current and stops the motor-control output when configured electrical faults are detected.

VUKAR DM-TP-RTLC-96 comes from pump control manufacturer Vukar Automation in Rajkot. Include DM-TP-RTLC-96 in your enquiry for a dealer quote.

When should you choose this model?

Choose DM-TP-RTLC-96 when you need automatic pump control by tank level plus time-of-day scheduling. Confirm the phase, wiring, control circuit and motor rating before installation.

Core functions

  • Voltage/current monitoring and fault indication
  • Overvoltage, undervoltage, overload and dry-run protection
  • Phase-loss and phase-sequence detection
  • Cyclic Timer, Auto-Off Stop Timer and power-on start delay
  • Fault counter, total run-time counter and automatic/manual modes
  • Clock Timer and multi-event scheduling
  • Automatic water-level control and indication through connected level inputs

Installation and setup

  • Install with a compatible pump starter or contactor control circuit.
  • Use a qualified electrician to verify wiring, earthing and the motor rating.
  • Set voltage, current, dry-run and timer parameters for the connected pump.
  • Water-level operation depends on correct level-input wiring and sensor placement.
  • After a trip, identify and correct the fault before restart.

Warranty, dispatch and support

  • 1-year product warranty when purchased from this website.
  • Orders are dispatched within 0–1 working day; expected delivery is 1–5 working days from the order date across India.
  • Free shipping across India.
  • Technical support by WhatsApp or call: +91 63588 96254.

Compare before buying

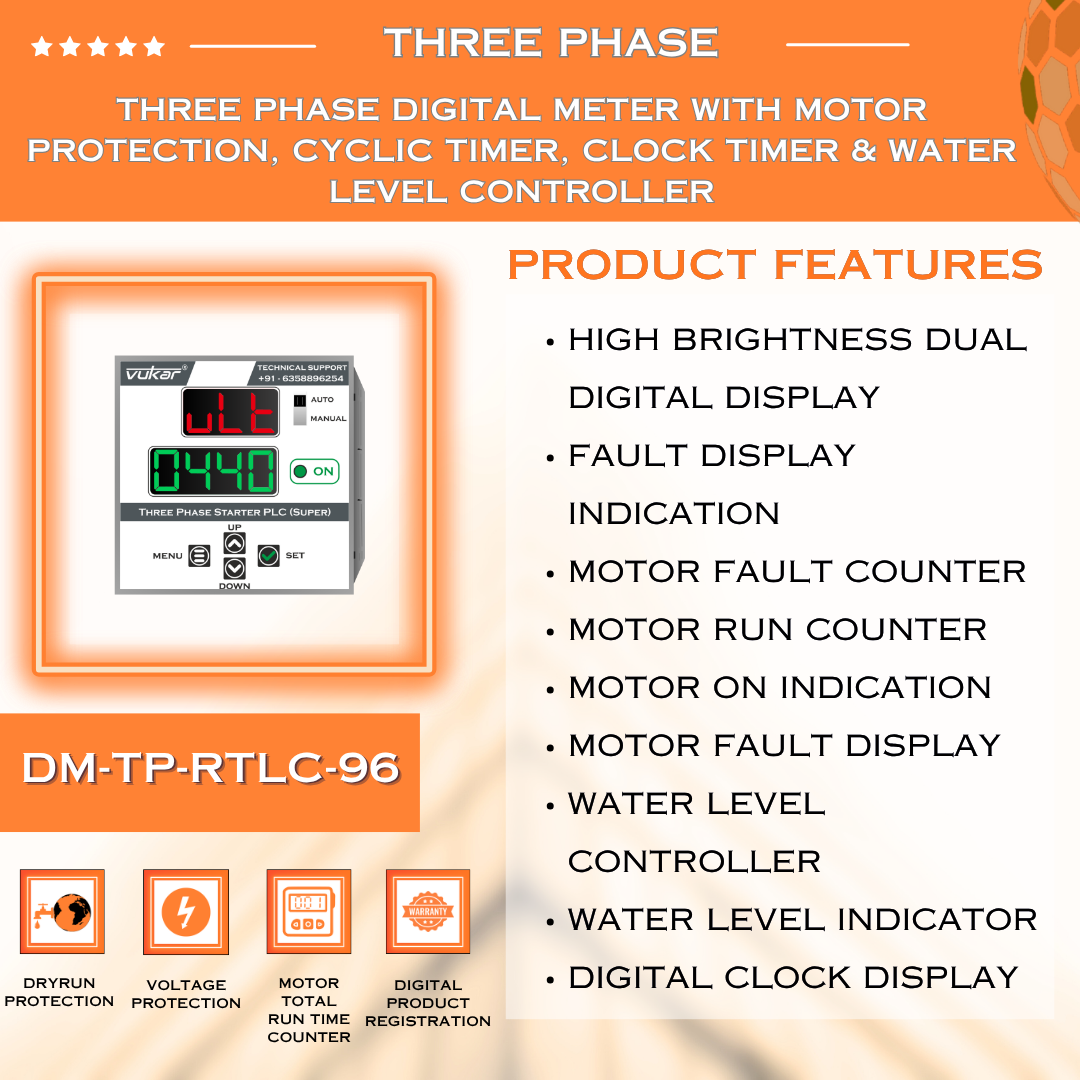

Product feature guide

Display and everyday operation

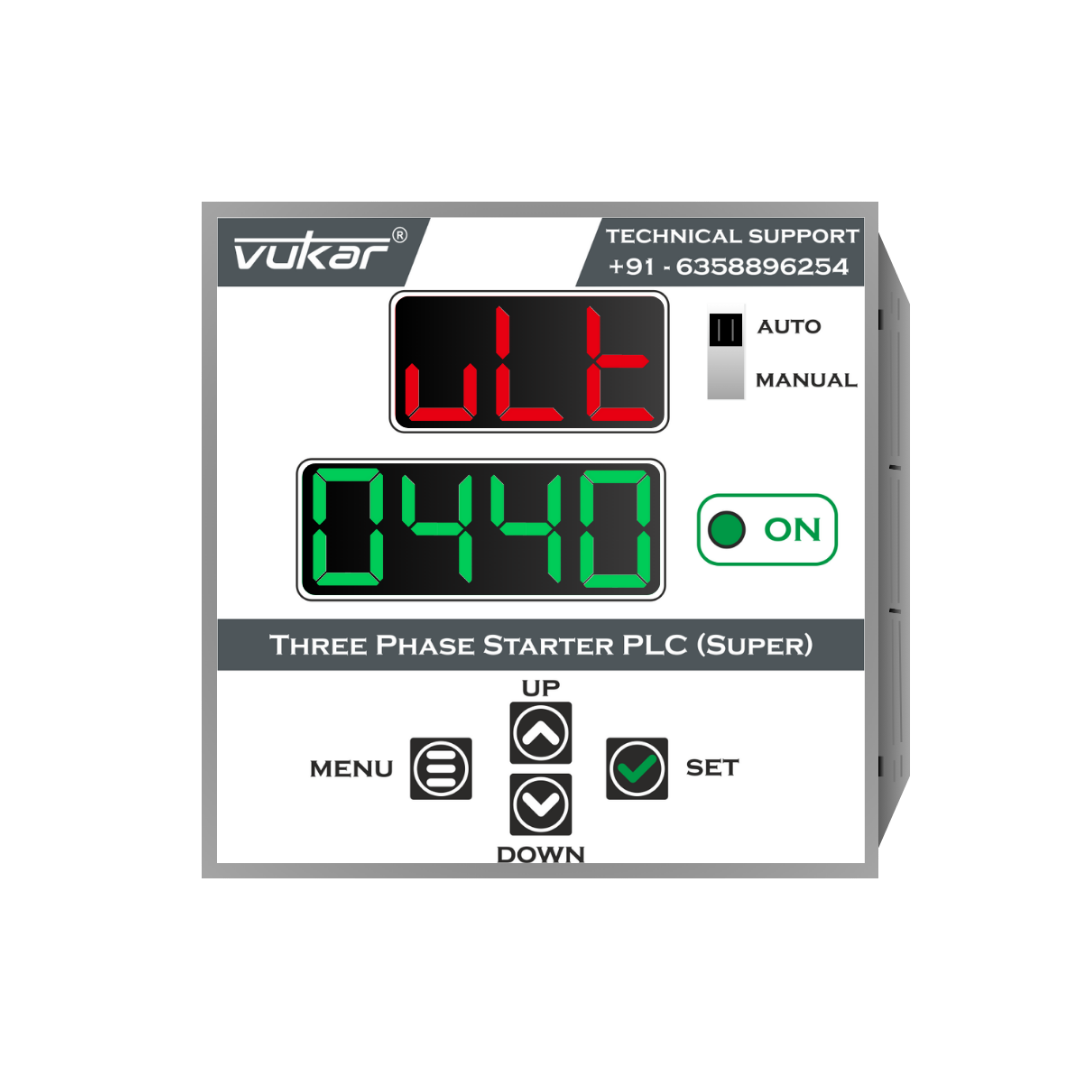

Dual digital display – DM-TP-RTLC-96

Dual digital display

Shows three phase electrical readings for operating checks.

Fault indication – DM-TP-RTLC-96

Fault indication

Displays detected motor faults to support troubleshooting.

Motor fault counter – DM-TP-RTLC-96

Motor fault counter

Records the number of motor-fault events.

Motor run-time counter – DM-TP-RTLC-96

Motor run-time counter

Records cumulative motor running time for maintenance reference.

Motor status indication – DM-TP-RTLC-96

Motor status indication

Shows motor ON and fault status.

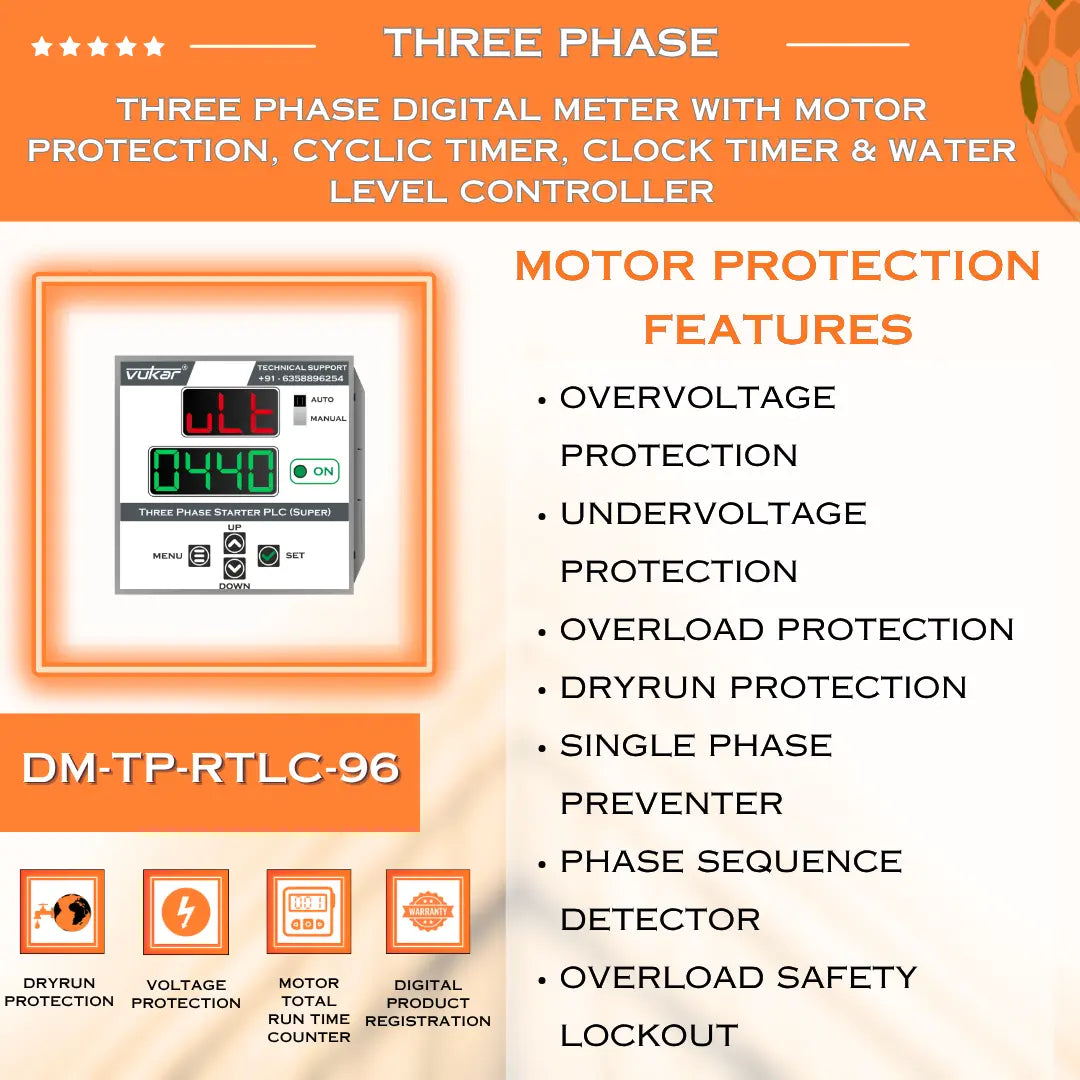

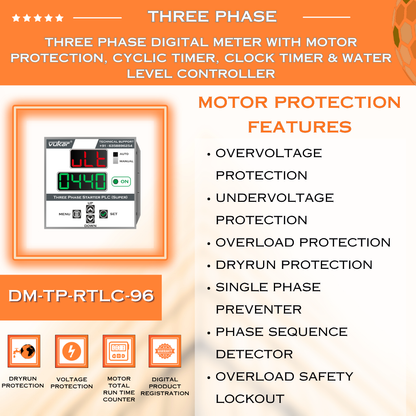

Protection and control features

Automatic water-level control – DM-TP-RTLC-96

Automatic water-level control

Uses connected level inputs to start and stop the pump according to tank level.

Water-level indication – DM-TP-RTLC-96

Water-level indication

Shows the detected tank-level status.

Digital clock display – DM-TP-RTLC-96

Digital clock display

Shows clock and schedule information for this model’s time-of-day pump operation.

Voltage protection – DM-TP-RTLC-96

Voltage protection

Stops the control output when voltage moves outside configured limits.

Overload and dry-run protection – DM-TP-RTLC-96

Overload and dry-run protection

Stops the motor-control output during configured overload or dry-run conditions.

Phase-fault protection – DM-TP-RTLC-96

Phase-fault protection

Detects phase loss and incorrect phase sequence in the connected three phase supply.

Overload safety lockout – DM-TP-RTLC-96

Overload safety lockout

Keeps the control output stopped after an overload until reset.

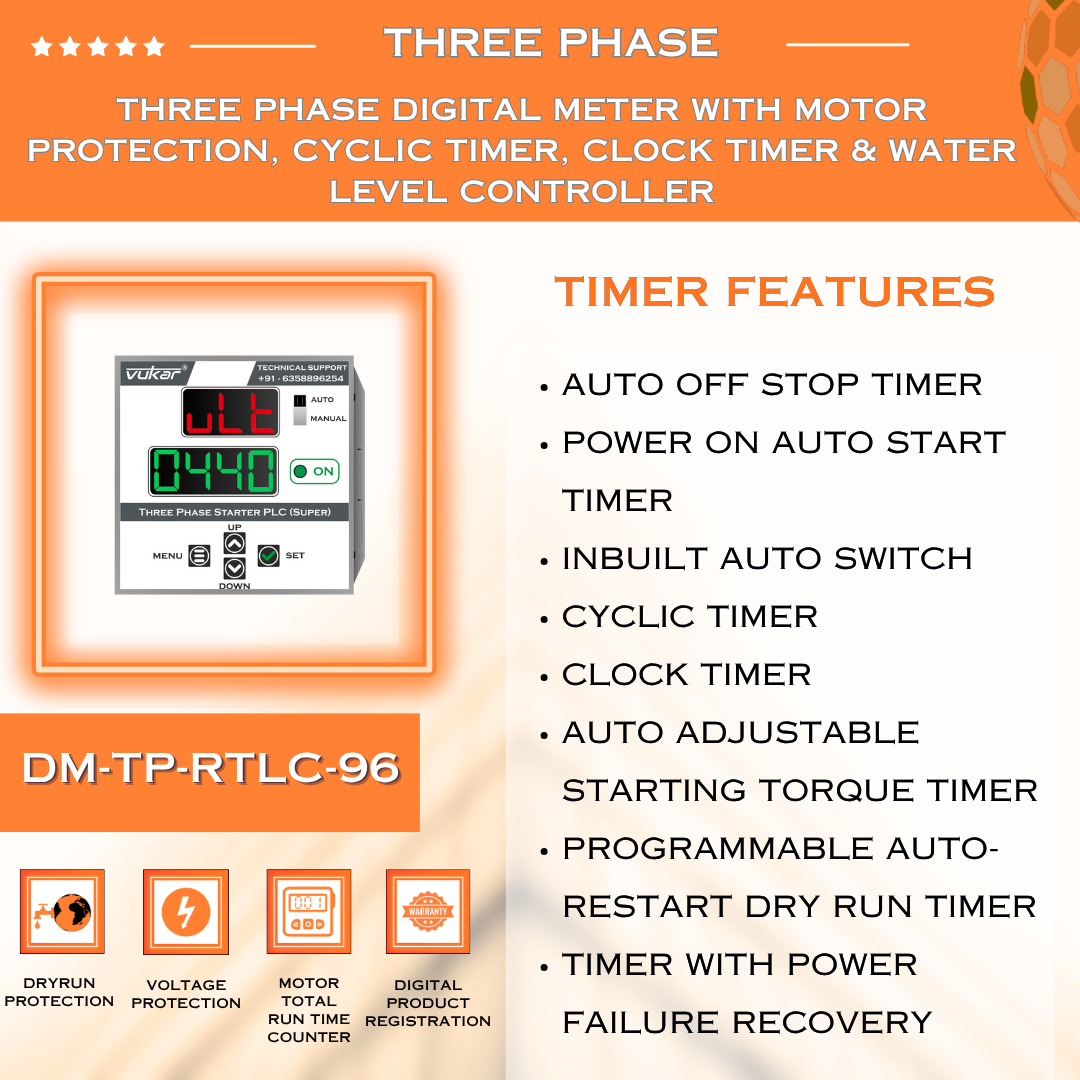

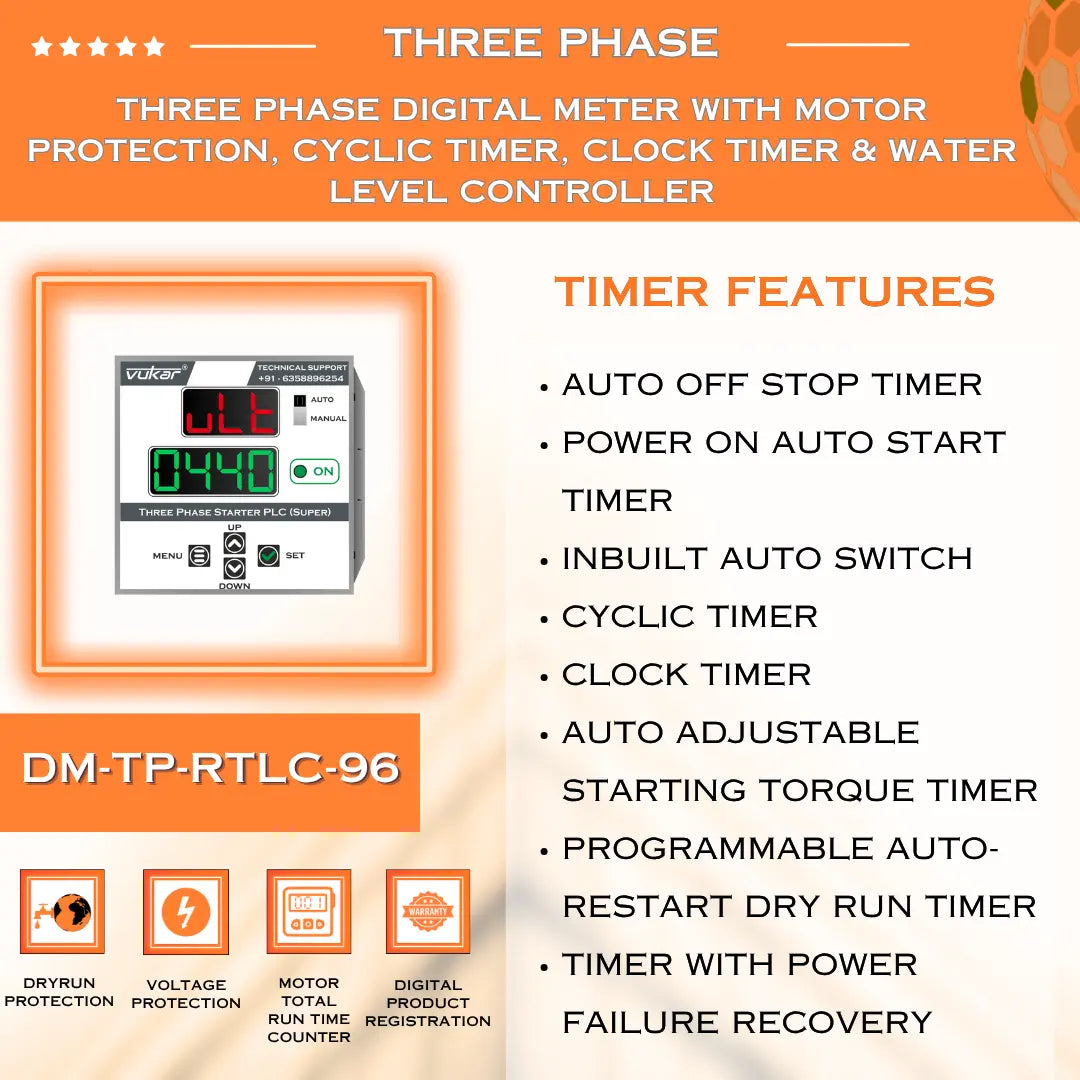

Timing and automatic control

Auto-off stop timer – DM-TP-RTLC-96

Auto-off stop timer

Stops the pump after the configured running duration.

Power-on start delay – DM-TP-RTLC-96

Power-on start delay

Adds a configured delay before restart after power returns.

Built-in auto switch – DM-TP-RTLC-96

Built-in auto switch

Provides automatic control when the configured supply conditions are healthy.

Cyclic timer – DM-TP-RTLC-96

Cyclic timer

Runs repeated ON/OFF cycles according to configured timings.

Clock timer – DM-TP-RTLC-96

Clock timer

Runs the pump at configured time-of-day schedules.

Dry-run restart timer – DM-TP-RTLC-96

Dry-run restart timer

Retries after the configured recovery delay following a dry-run stop.

Timer power-failure recovery – DM-TP-RTLC-96

Timer power-failure recovery

Restores the configured timer cycle after a power interruption.

Installation and ownership

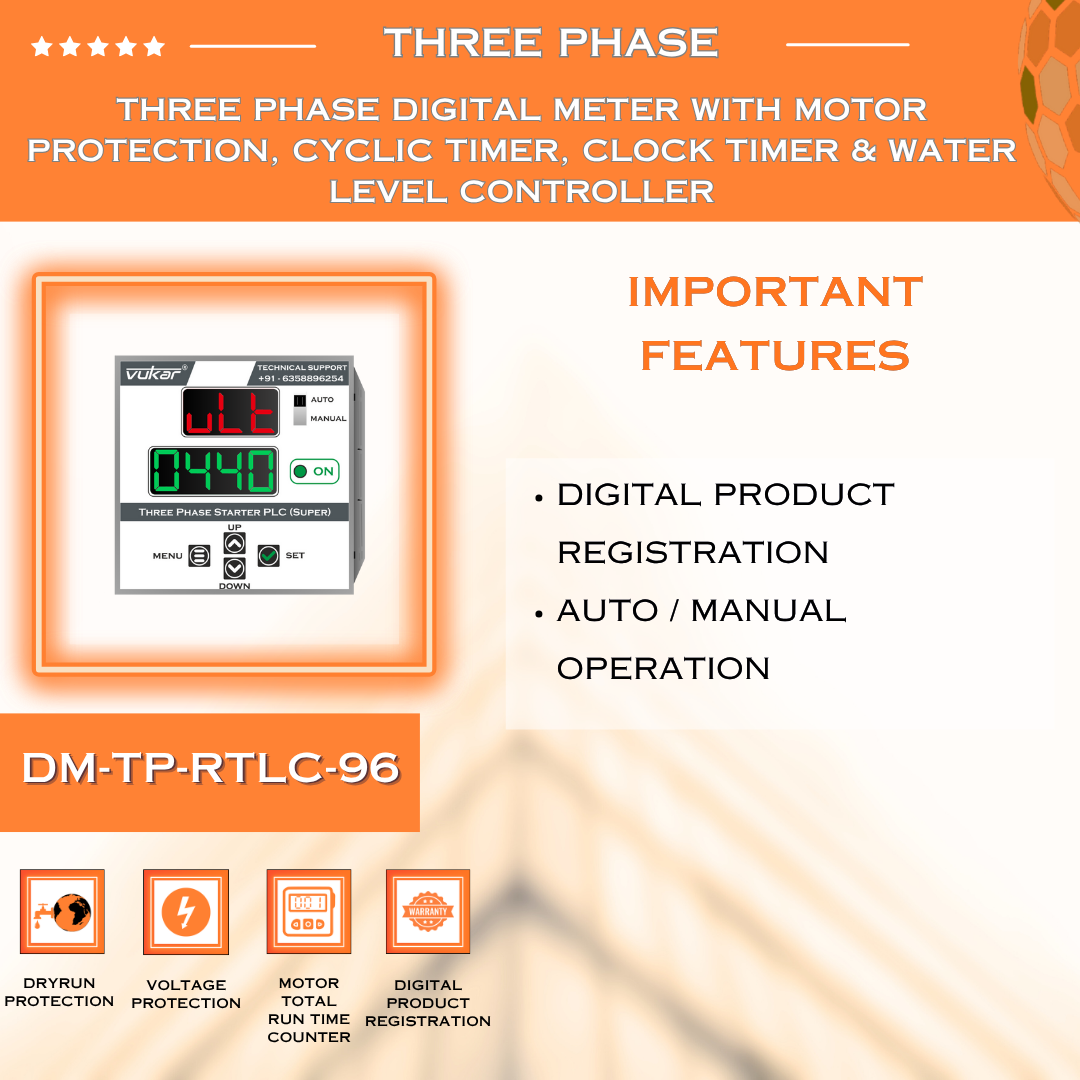

Digital registration and operating modes – DM-TP-RTLC-96

Digital registration and operating modes

Supports digital product registration and automatic/manual operation modes.

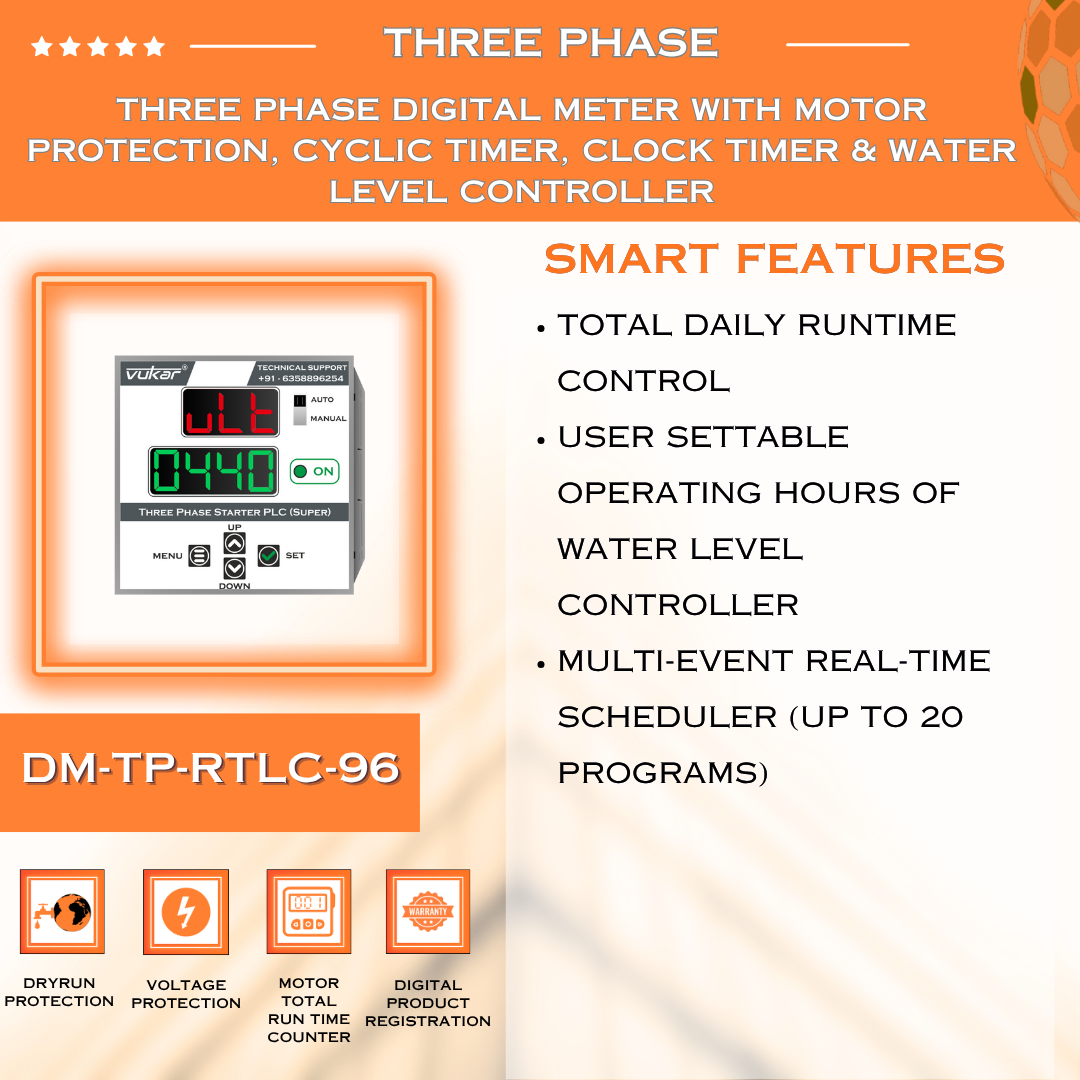

Water-level operating hours – DM-TP-RTLC-96

Water-level operating hours

Limits water-level automation to configured operating hours.

Cyclic-timer operating hours – DM-TP-RTLC-96

Cyclic-timer operating hours

Limits cyclic operation to the configured time window.

Multi-event scheduler – DM-TP-RTLC-96

Multi-event scheduler

Supports multiple configured pump events at selected times.

Frequently asked questions

Where does this protection device fit?

Use it with a compatible motor starter or contactor control circuit. The starter power circuit remains required for the installation.

How should the device be set up for my pump?

A qualified electrician should set the parameters to match the motor nameplate, supply and installation.

Is level-sensor wiring required?

Yes. Automatic water-level control requires compatible level inputs and correct sensor placement.

Product videos and selection guidance: Digital meter selection: display examples.
