What does the FLT dr fault code mean on the VUKAR DM-Universal-V1 controller?

FLT dr is the dry run fault. The controller trips when the motor current stays below the Dry Run Ampere setting (dr) for longer than the Dry Run Trip Delay (drt), which indicates the pump is running without water. To reset: it clears automatically after the Rest Timer (rst) duration if the Cyclic Timer is enabled, or press and hold the MENU switch for 2 seconds for a manual reset, or turn the power OFF and then ON.

What do the hiu and lou voltage settings do?

hiu is the high voltage cut-off limit (settable 140-500 V) and lou is the low voltage cut-off limit (settable 130-490 V). If the supply voltage stays above hiu or below lou, the controller stops the motor to protect it. Note that the factory defaults - 500 V for hiu and 130 V for lou - are the disabling values, so voltage protection is effectively OFF as shipped until the installer sets real limits. Typical settings are 460 V and 350 V for three phase systems, and 270 V and 200 V for single phase systems.

Does the motor restart automatically after a dry run trip?

Yes, if the Cyclic Timer is enabled: the FLT dr fault clears automatically after the Rest Timer (rst) duration, which also gives a low-yield borewell time to recharge before the next pumping attempt. Without the Cyclic Timer, the fault must be cleared manually by holding the MENU switch for 2 seconds, or by turning the power OFF and ON. After a fault trip, the Auto Reset Timer (atc) sets how long the controller waits before attempting an automatic restart.

How do I set overload protection with the ol and olt parameters?

ol (Overload Ampere) is the maximum current the motor is allowed to draw - the manufacturer recommends setting it to 110% to 120% of the motor's rated full-load current. olt (Overload Trip Delay) is how long the motor may run above that current before the controller trips, typically 5 to 15 seconds depending on the motor's starting characteristics; setting olt to 0000 disables the overload trip. If the controller shows FLT oL, reset it by pressing and holding the MENU switch for 2 seconds, or by turning the power OFF and ON (the power reset works only when the olm parameter is set to No).

What does the ast (Auto Start Time) setting do after a power cut?

ast is the delay after power is restored before the motor starts automatically. It is settable from 0 to 999 seconds; the factory default is 30 seconds, and 60 to 300 seconds is the typical recommended range depending on the installation. Setting ast to 0000 disables the auto start facility.

1 13

3 Phase DOL Starter with Water Level Indicator – TPM-V

Rs. 4,949.00

~~Rs. 7,340.00~~ Rs. 4,949.00

Sale Sold out

Taxes included. Free shipping across India. View shipping policy.

HP Rating Up to 2 HP Up to 3 HP Up to 5 HP Up to 7.5 HP Up to 10 HP

Included Cyclic Timer + Auto Switch

Free shipping across India
No shipping, handling or COD fee
Secure online checkout
Pay via Razorpay
7-day replacement window
Eligible claims only, from delivery
1-year parts warranty
Manufacturing defects covered
Optional paid 3-year extended warranty

Selected Google reviews of Vukar Automation

Chandan Sarkar

★★★★★

Support-Support is also good.Whenever I called for support the came forwarde and guided me.

Google review excerpt · View reviewer on Google (opens in a new tab)

Read reviews on Google (opens in a new tab)Product reviews

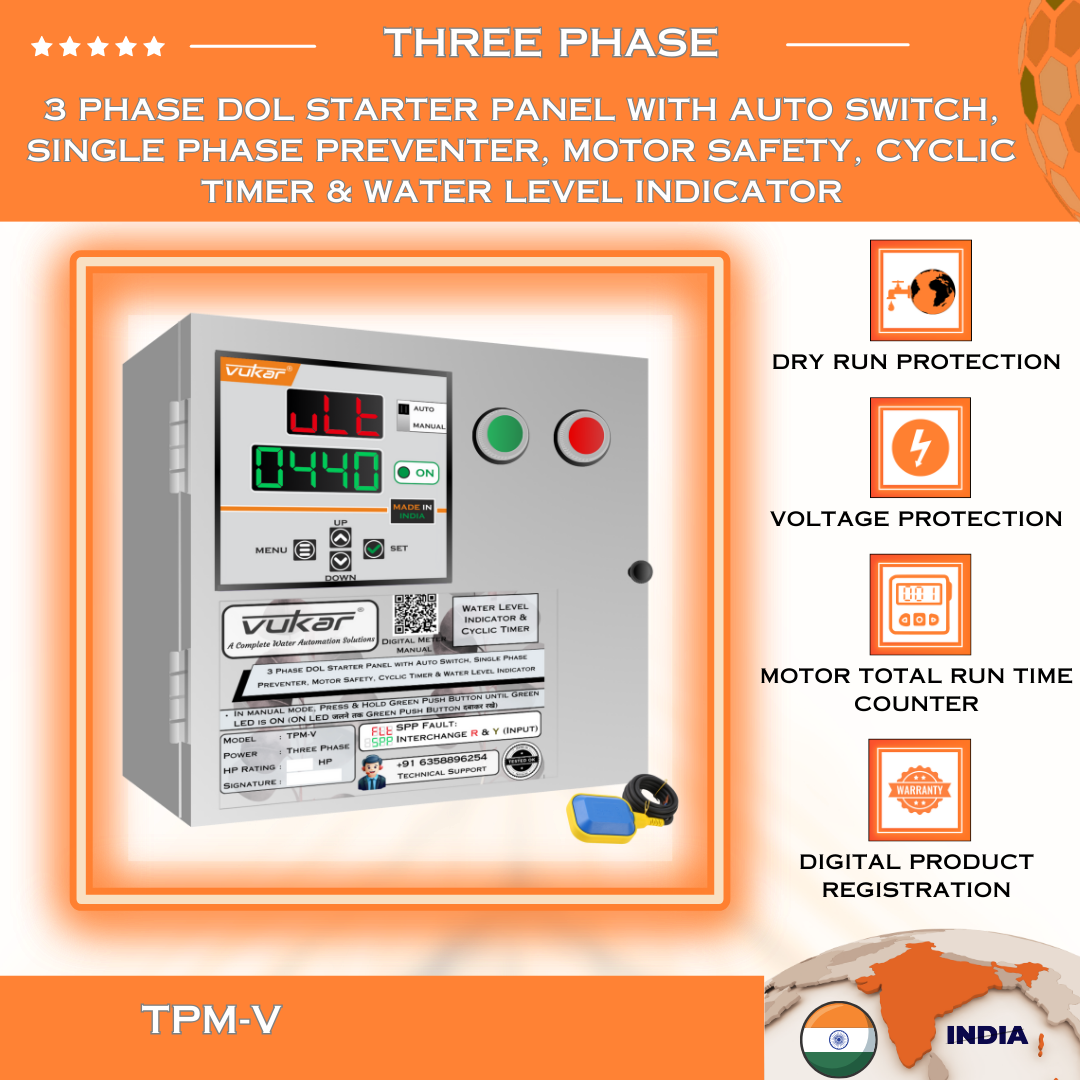

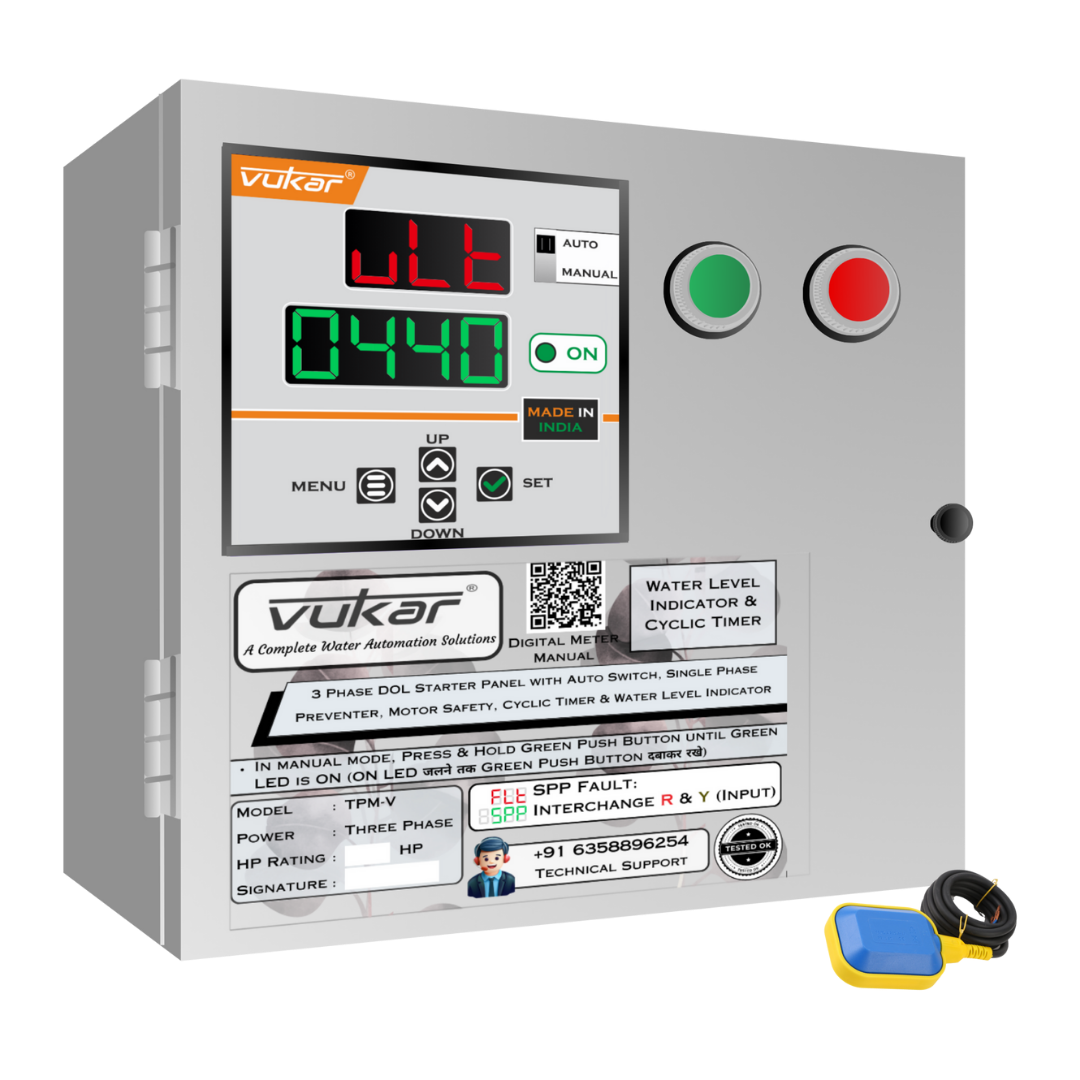

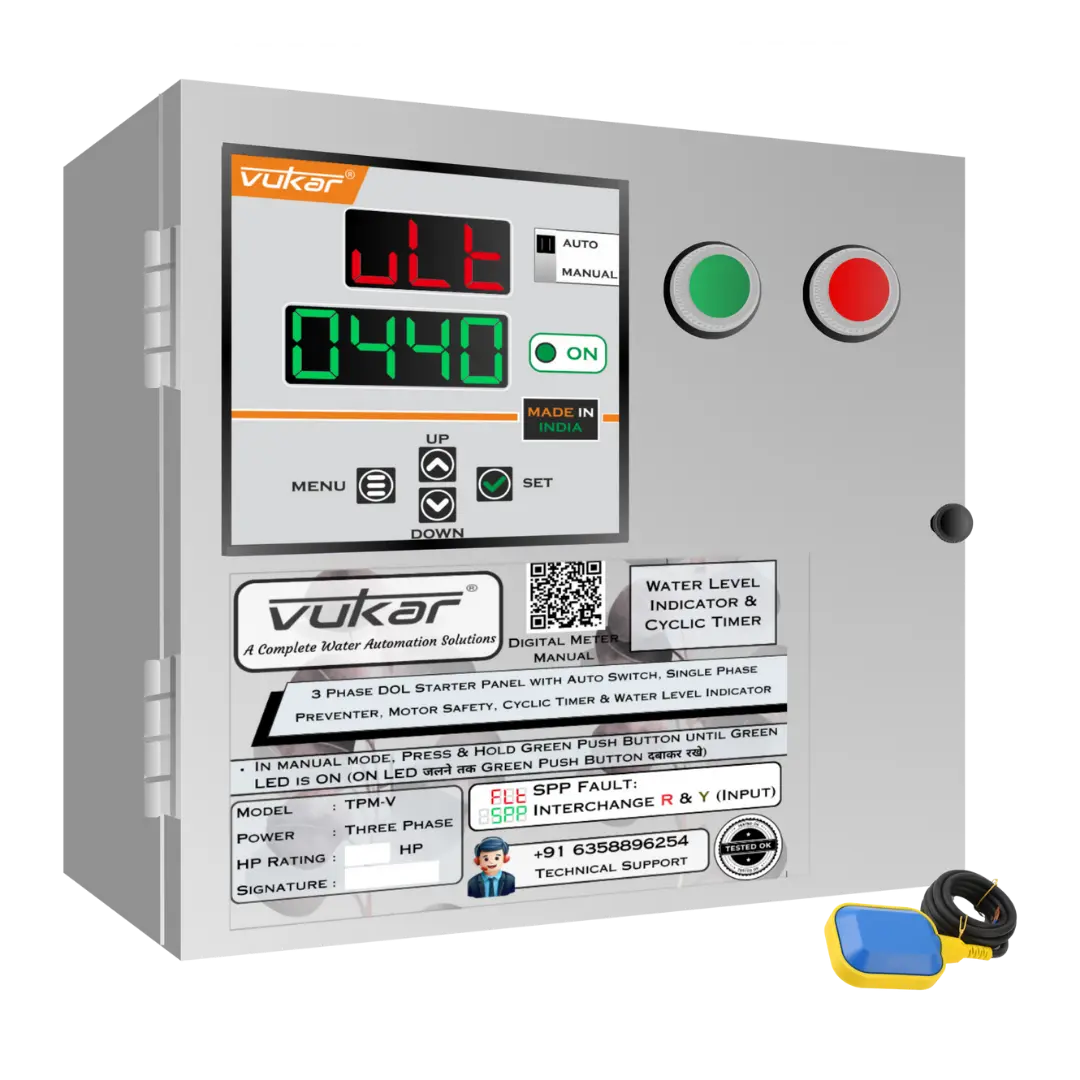

VUKAR TPM-V is a 3 phase DOL starter panel with an auto switch, cyclic timer and water level indicator for pumps up to 10 HP. Its digital display shows pump parameters while built-in protection covers dry-run, overload, voltage and phase faults.

VUKAR TPM-V comes from pump control manufacturer Vukar Automation in Rajkot. Share your motor details when asking about TPM-V.

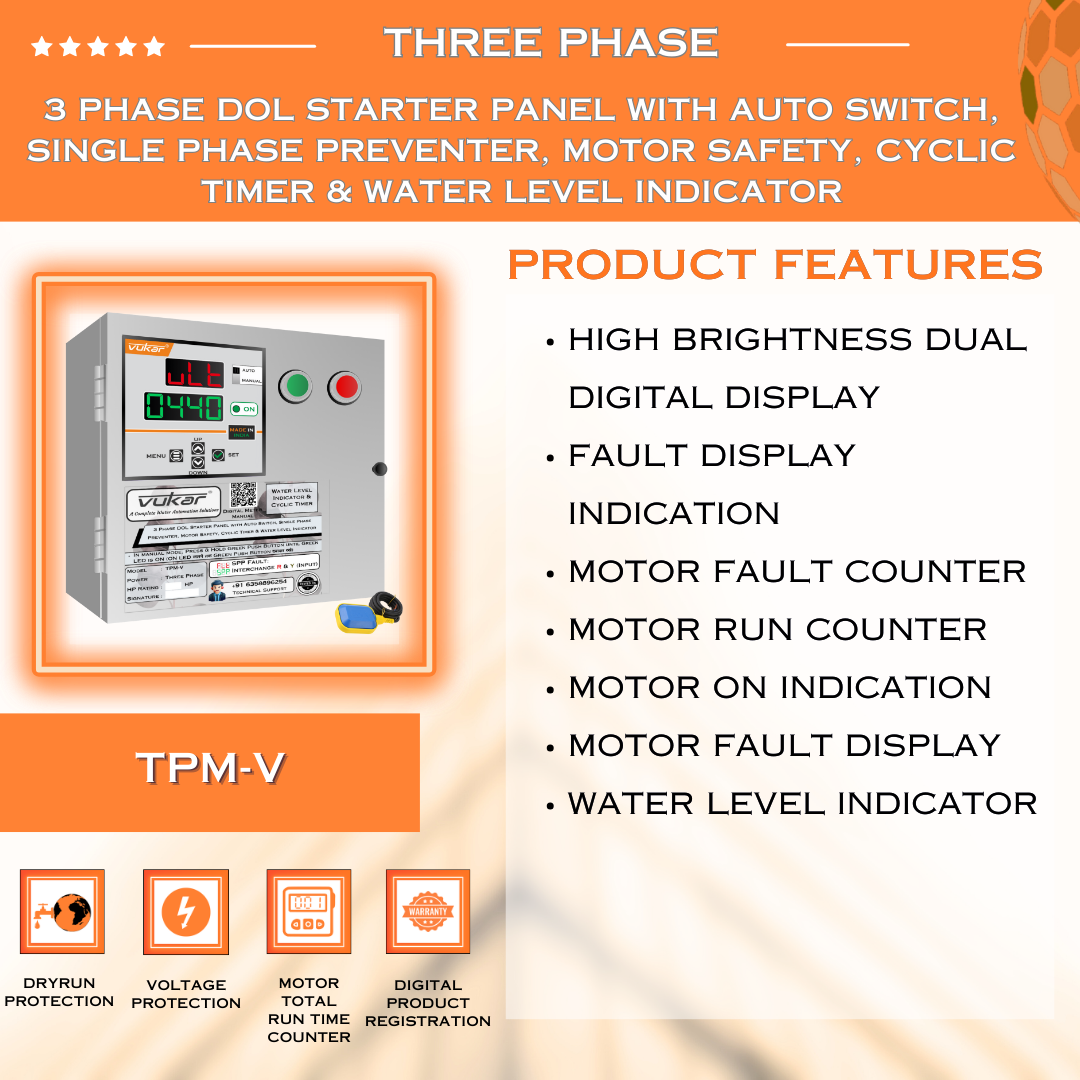

Key Features

Display and everyday operation

TPM-V Fault Display Indication — Fault Display Indication

Displays common motor fault indications to support faster troubleshooting.

TPM-V Motor Fault Counter — Motor Fault Counter

Logs the number of motor faults so recurring issues can be identified.

TPM-V Motor Total Run-Time Counter — Motor Total Run-Time Counter

Records cumulative motor running hours for maintenance planning.

TPM-V Motor-On and Fault Indication — Motor-On and Fault Indication

Provides clear visual confirmation of motor operation and fault status.

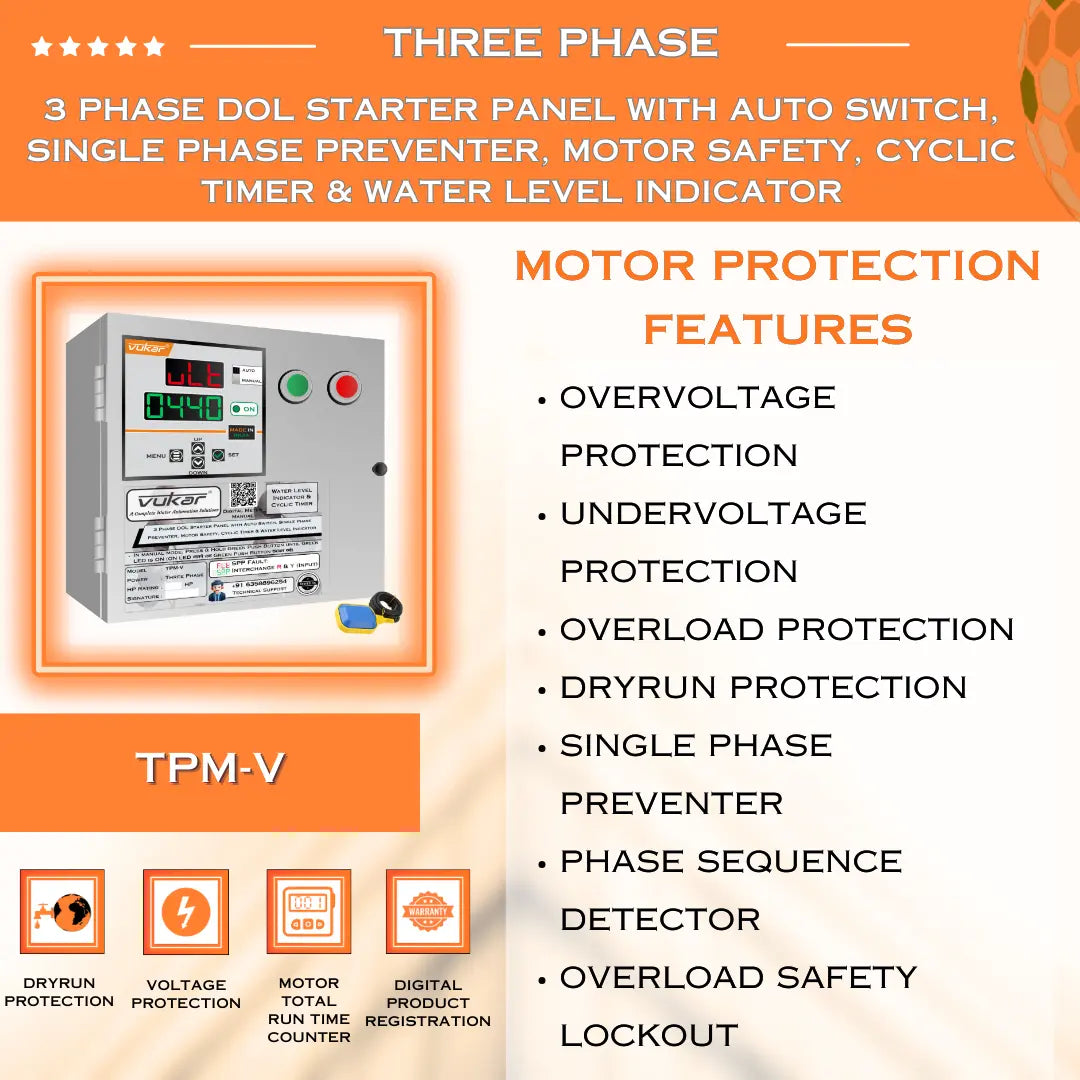

Protection and control features

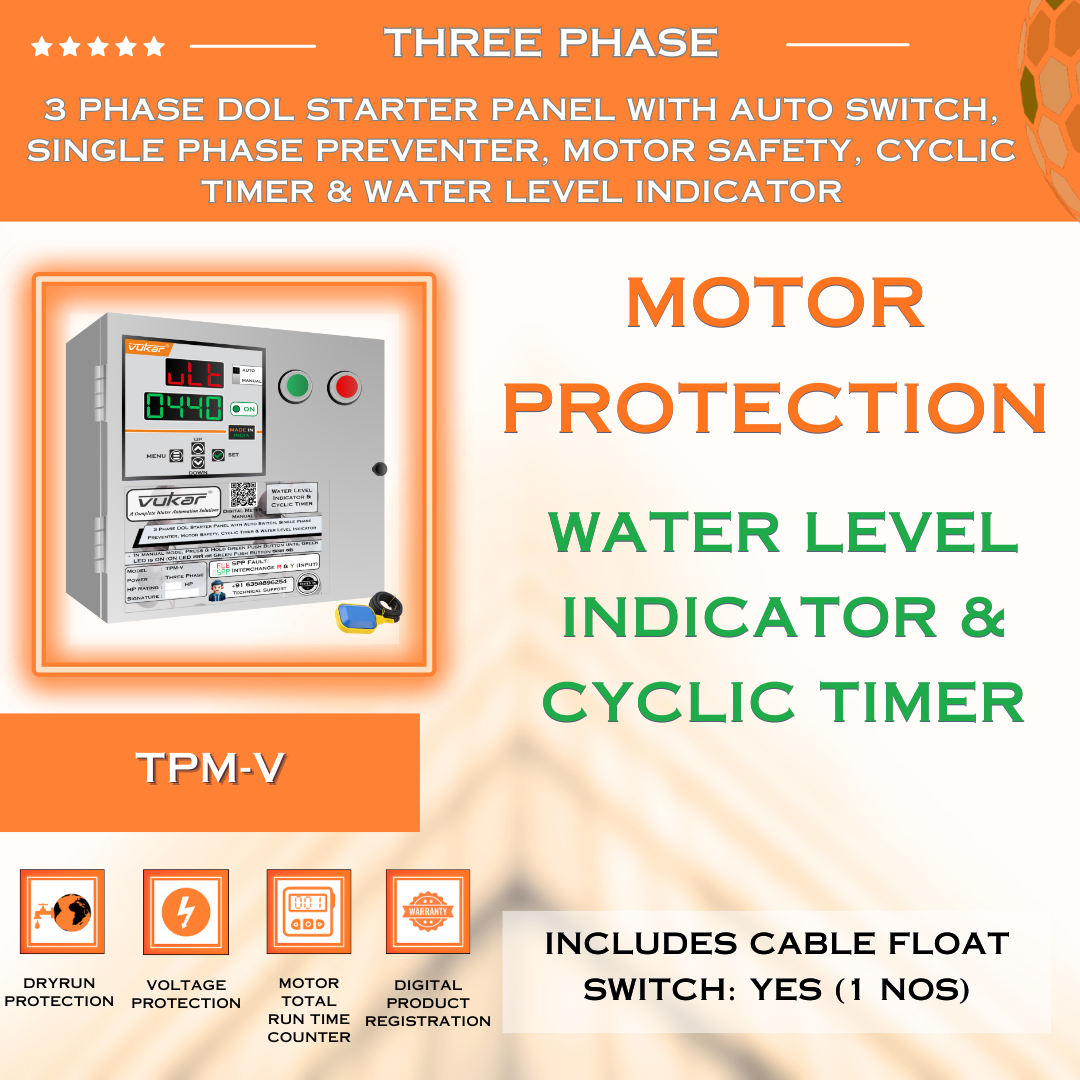

TPM-V Water Level Indicator — Water Level Indicator

Shows tank-water status for easier monitoring.

TPM-V Overvoltage and Undervoltage Protection — Overvoltage and Undervoltage Protection

Disconnects the pump when supply voltage moves outside the configured safe range.

TPM-V Overload and Dry-Run Protection — Overload and Dry-Run Protection

Stops the motor during overload or dry-run conditions to reduce the risk of motor damage.

TPM-V Single-Phase Preventer and Phase-Sequence Detection — Single-Phase Preventer and Phase-Sequence Detection

Protects against phase loss and an incorrect phase sequence.

TPM-V Overload Safety Lockout — Overload Safety Lockout

Keeps the system stopped after an overload until a manual reset is completed.

Timing and automatic control

TPM-V Auto-Off Stop Timer — Auto-Off Stop Timer

Stops the pump automatically after the configured running duration.

TPM-V Power-On Auto-Start Timer — Power-On Auto-Start Timer

Adds a configurable delay before pump start when power returns.

TPM-V Built-In Auto Switch — Built-In Auto Switch

Starts the pump automatically when healthy three-phase power is available.

TPM-V Cyclic Timer — Cyclic Timer

Runs repeated ON/OFF cycles according to the configured schedule.

TPM-V Programmable Auto-Restart Dry-Run Timer — Programmable Auto-Restart Dry-Run Timer

Stops the pump on dry run and retries after the configured recovery delay.

TPM-V Timer Power-Failure Recovery — Timer Power-Failure Recovery

Restores the programmed timer cycle after a power interruption.

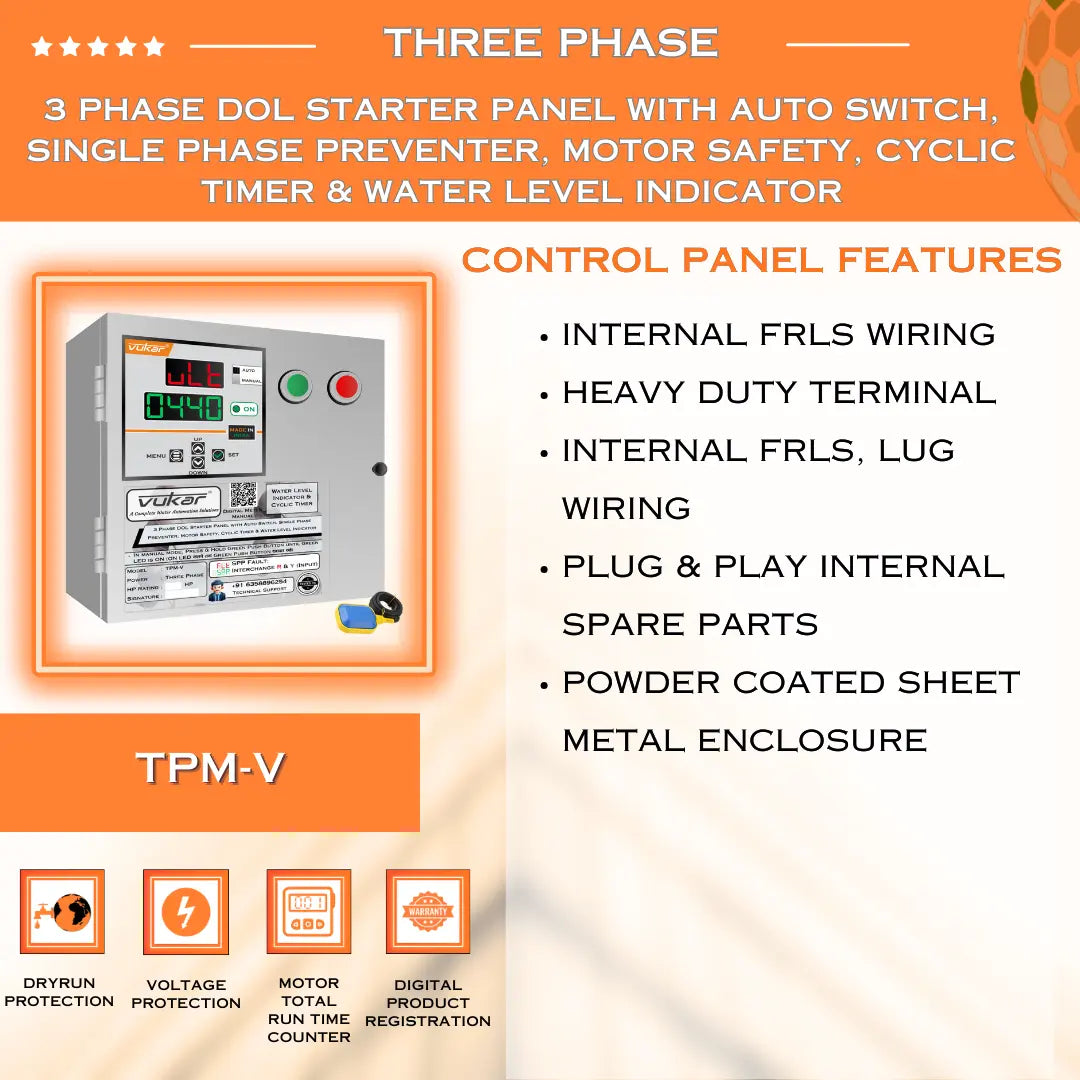

Installation and ownership

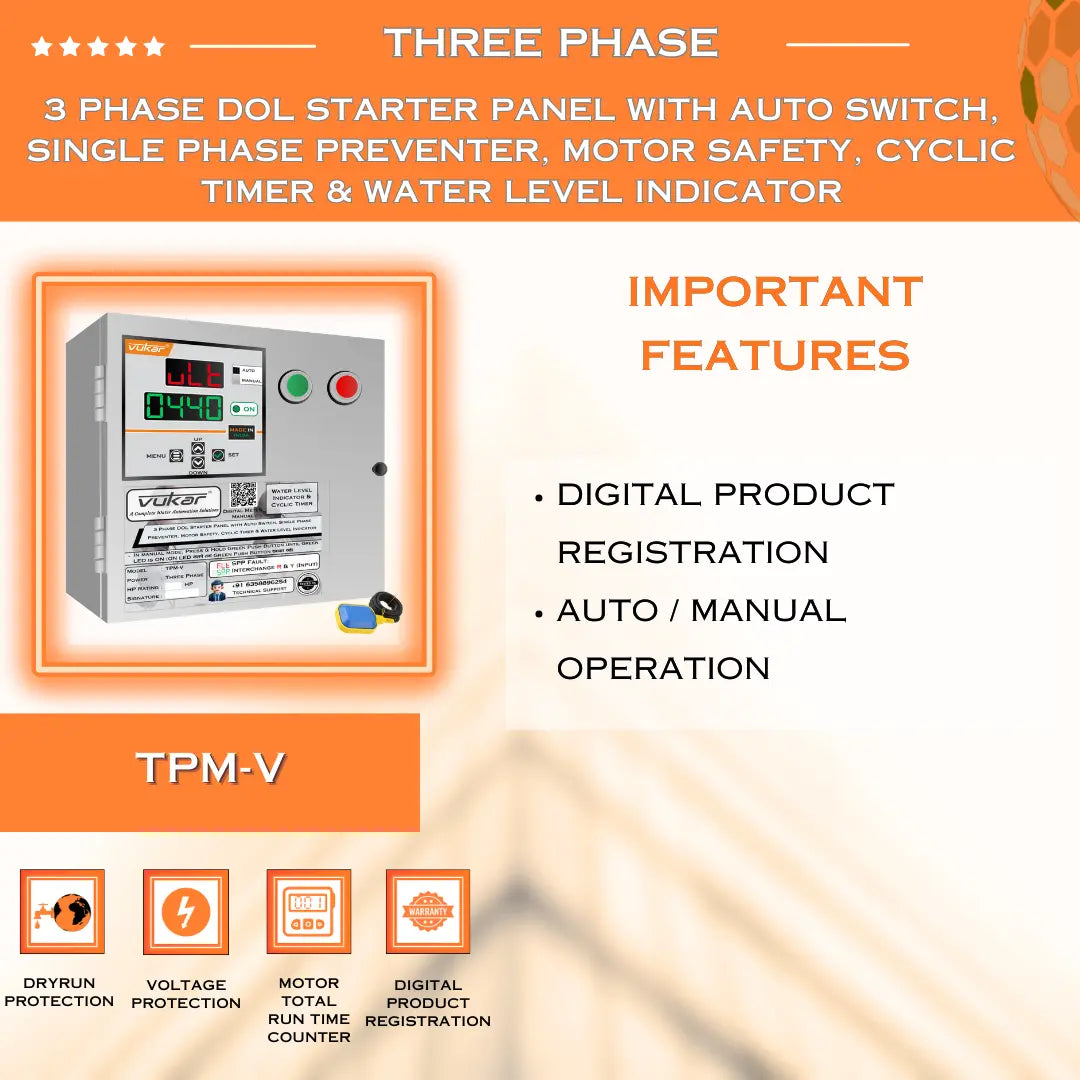

TPM-V Digital Product Registration and Auto/Manual Modes — Digital Product Registration and Auto/Manual Modes

Supports digital product registration and both automatic and manual operation modes.

TPM-V Spare-Part Availability — Serviceable components

Uses components designed for replacement during repair.

TPM-V Powder-Coated Metal Enclosure — Powder-Coated Metal Enclosure

Protects internal components in a durable metal enclosure.

TPM-V Cable Float Switch — Cable Float Switch

Includes a cable float switch for tank-level input.

Technical Support

Technical support is available by WhatsApp and call at +91 63588 96254.

Suitable Pumps

TPM-V is configured for borewell, openwell and monoblock pumps up to 10 HP. Select the product variant that matches the motor HP.

Compare Before Buying

Product videos and selection guidance: Water-level indicator videos.

View Catalogue Download CataloguePDF
