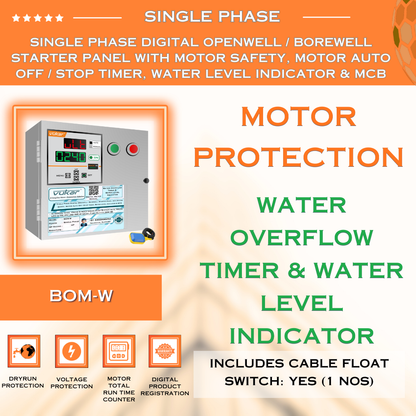

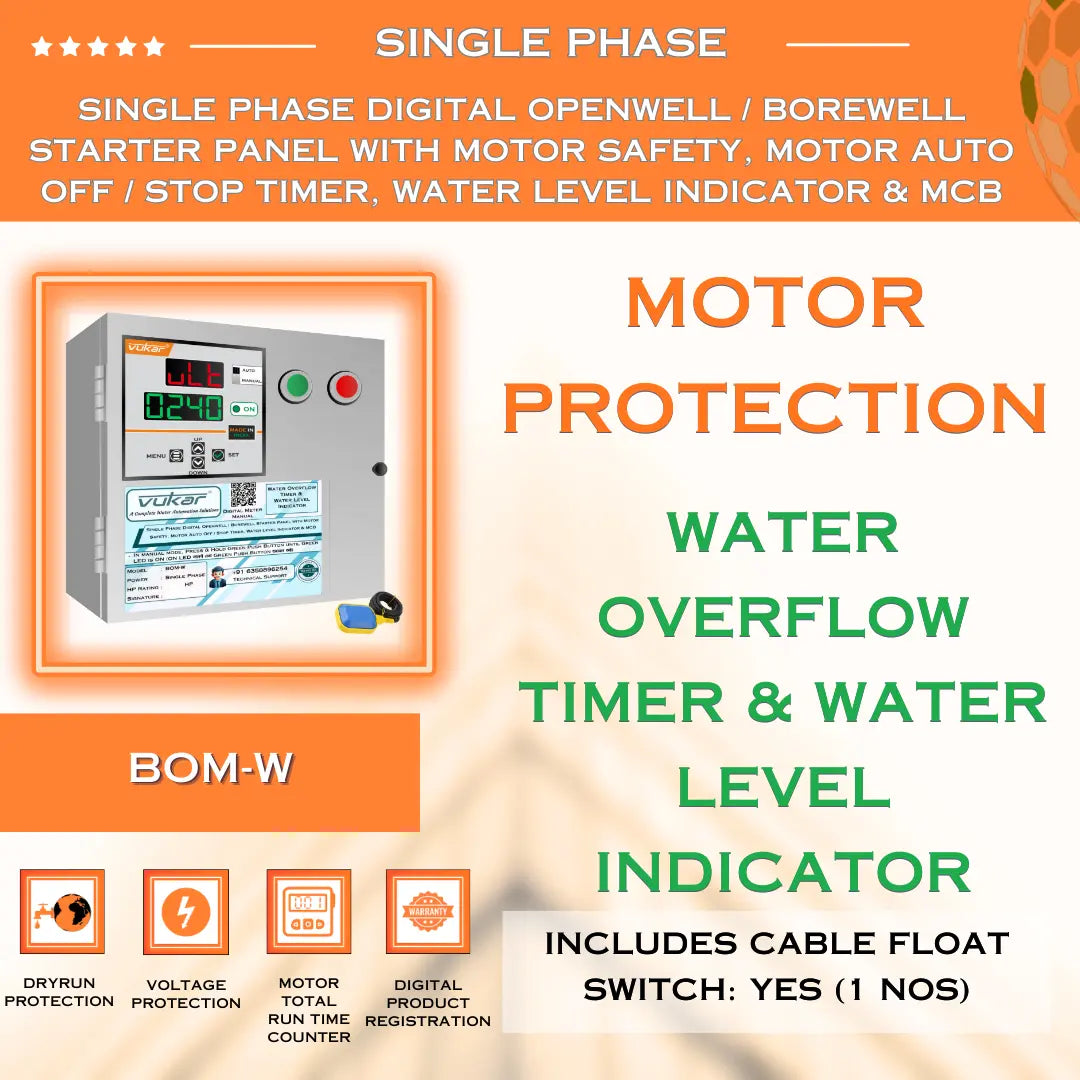

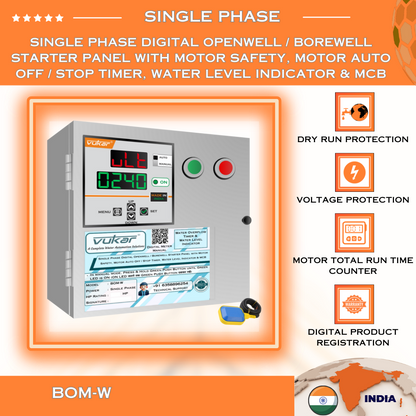

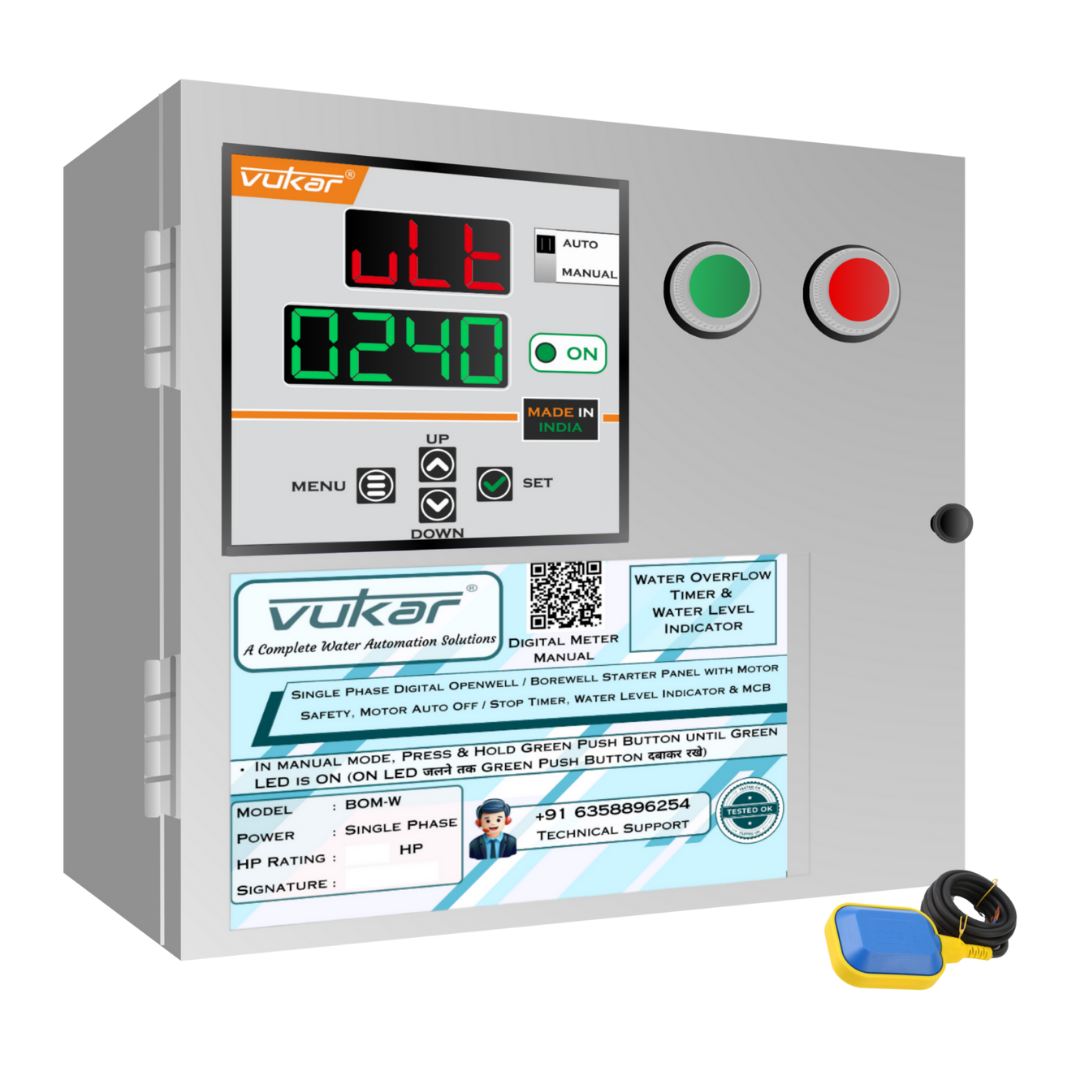

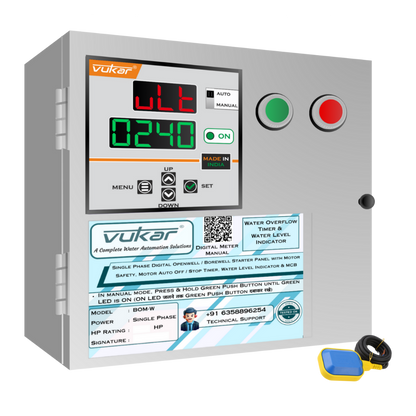

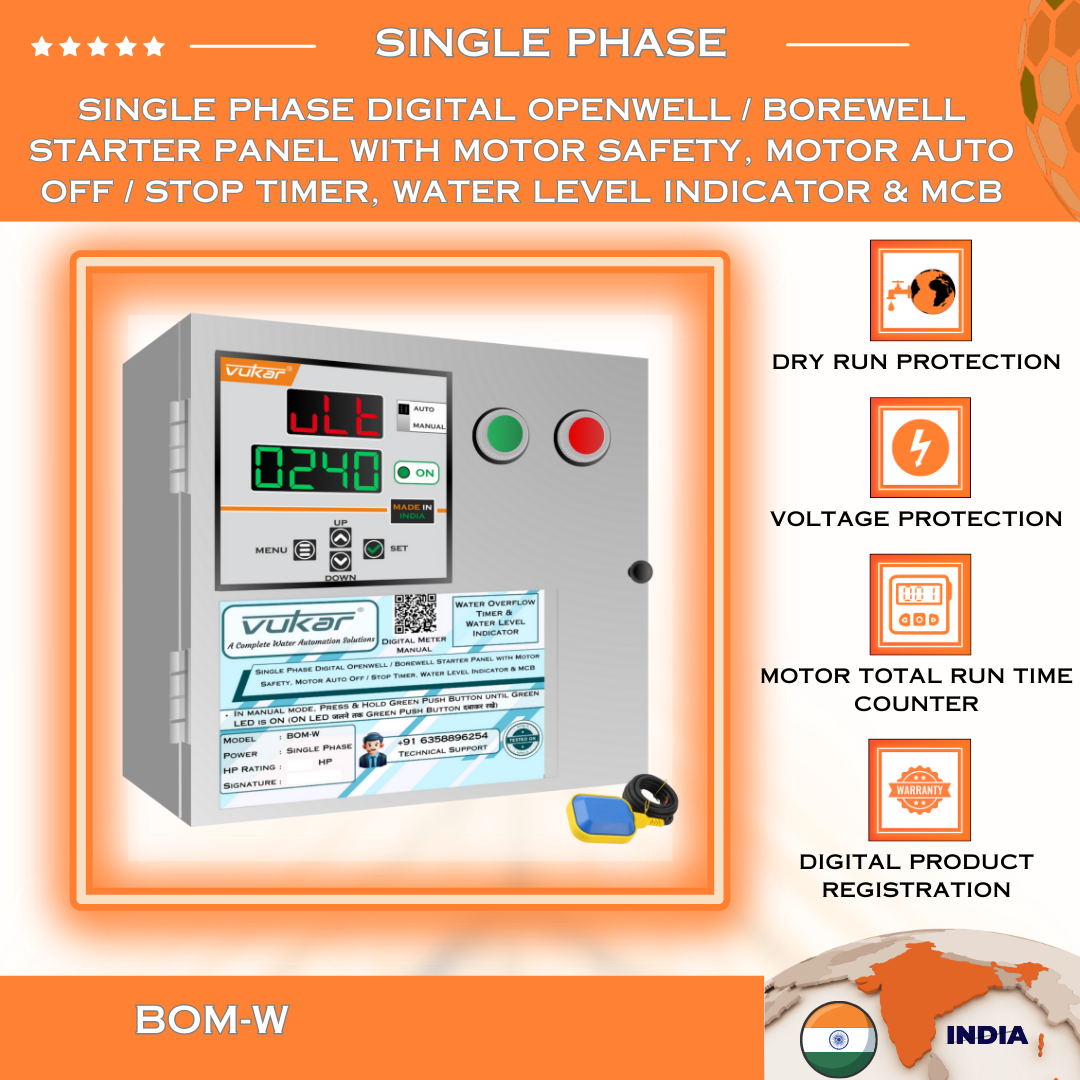

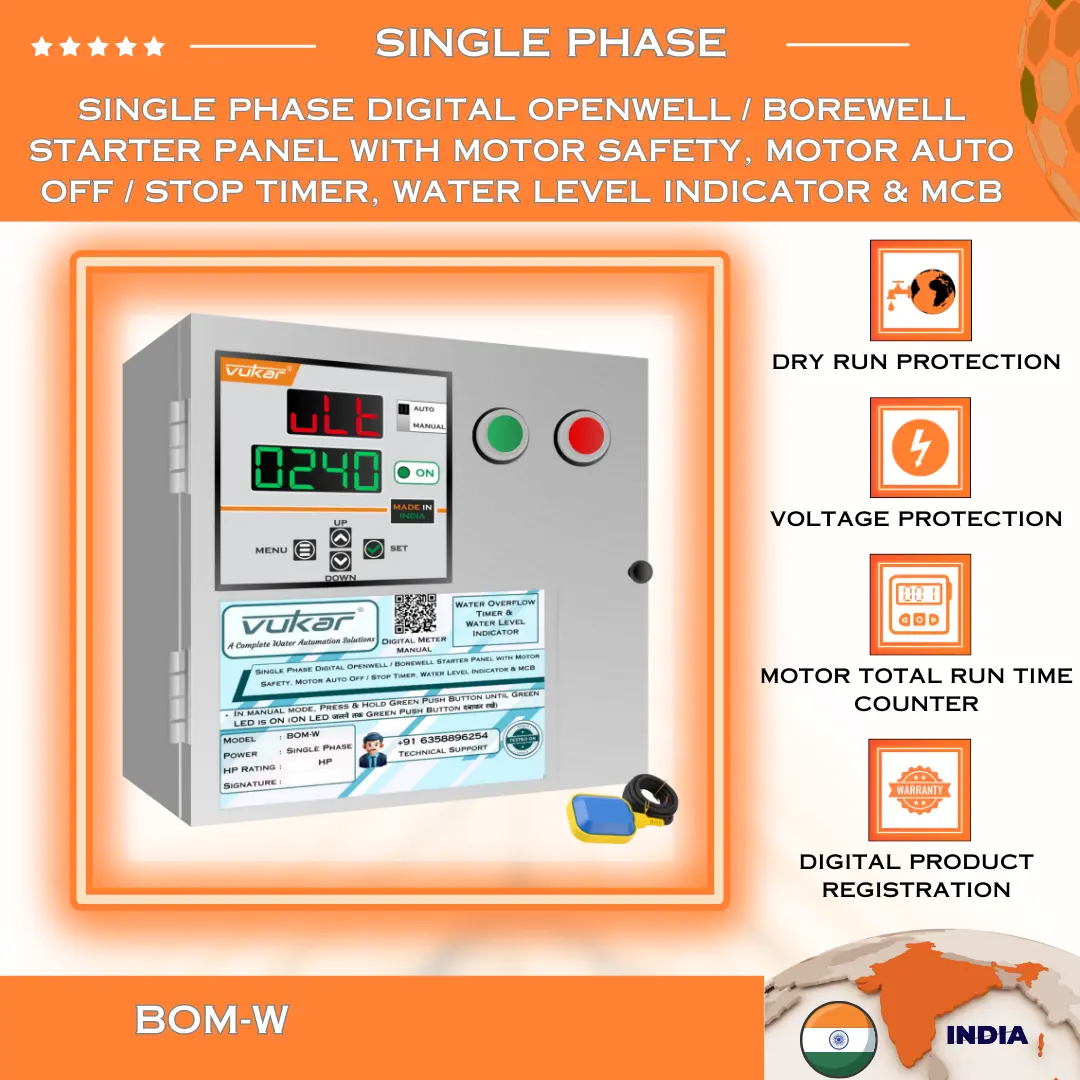

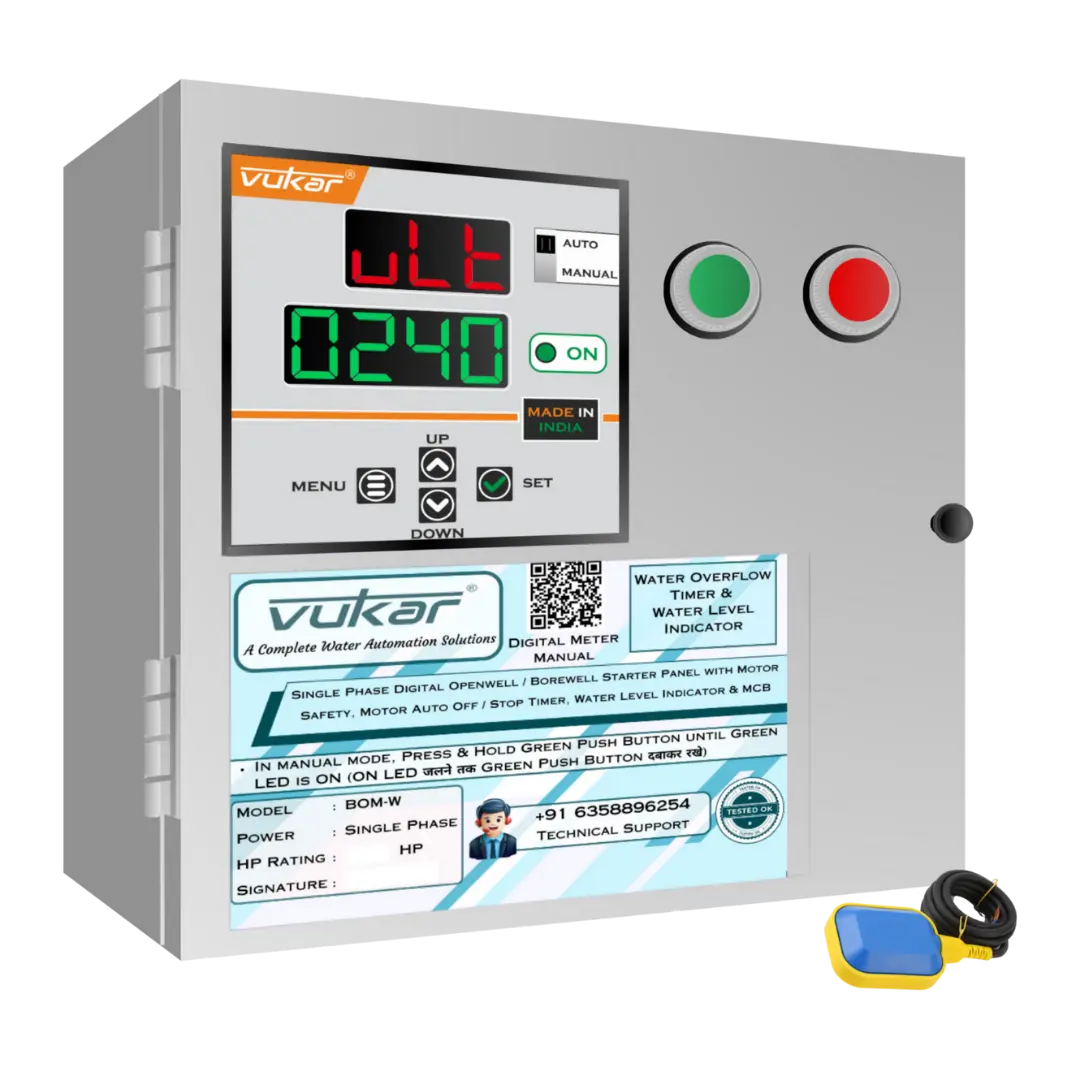

Single Phase Digital Openwell / Borewell Starter Panel with Motor Safety, Motor Auto Off / Stop Timer, Water Level Indicator & MCB (BOM-W)

BOM-W is a single phase borewell/openwell motor starter panel for 0.5–3 HP pumps. Its defining function is water level indicator, auto-off stop timer and inbuilt MCB. Select the exact HP variant only after matching the pump rating and operating current.

Who should choose BOM-W?

Choose BOM-W when tank-level indication, timed stopping and an inbuilt MCB are all required in one starter panel.

Model-specific functions

• Water Level Indicator gives visible tank-status information from the connected float switch.

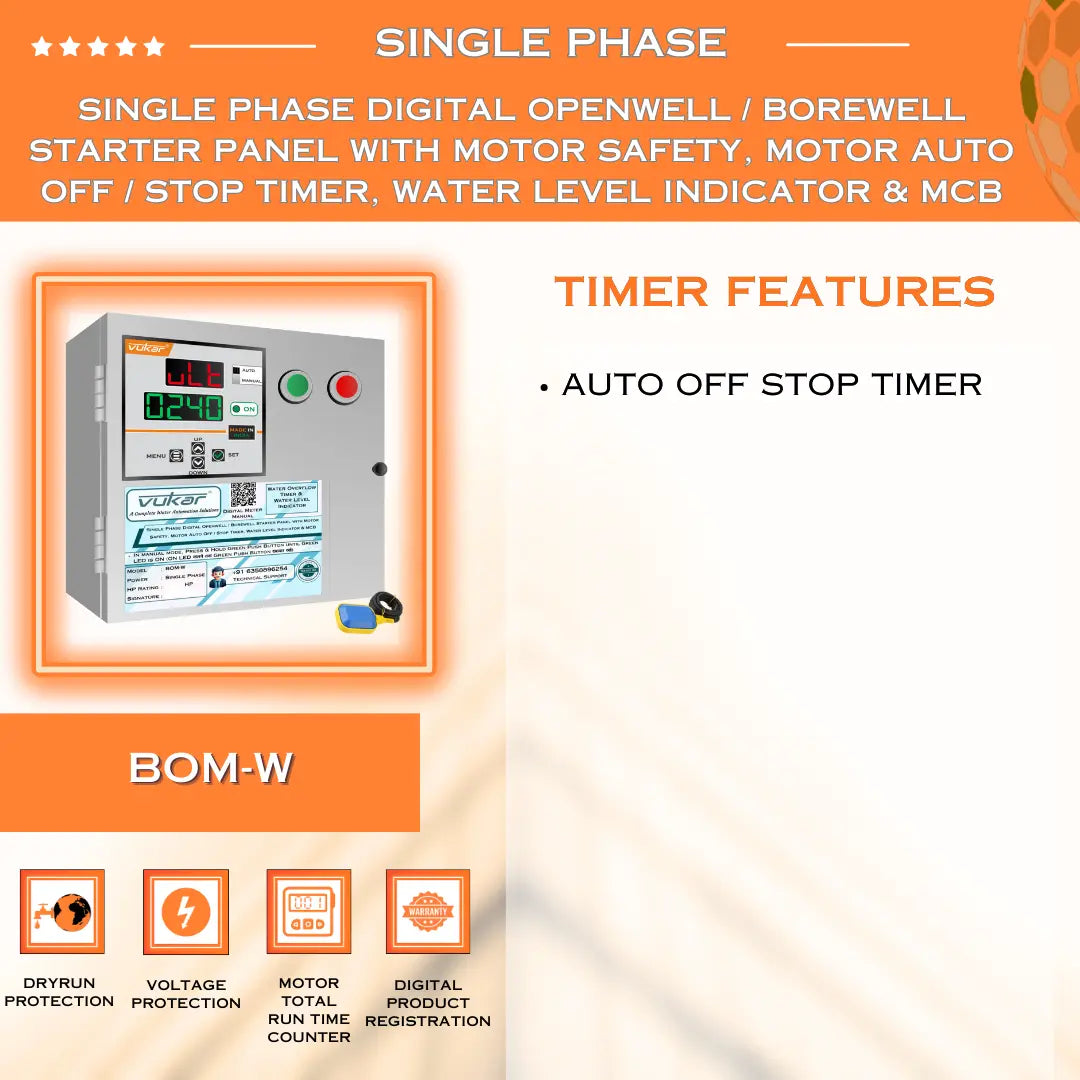

• Auto-Off Stop Timer stops the pump after the duration set on the panel.
• Inbuilt MCB provides short-circuit protection for the panel circuit; cable float switch is included.

Motor protection and monitoring

• Overvoltage and undervoltage protection disconnects the motor when supply voltage moves outside the configured limits.
• Overload and dry-run protection stops the pump when the configured current conditions indicate excess load or loss of water.
• Overload Safety Lockout, Power-On Auto-Start Timer and Programmable Dry-Run Auto-Restart Timer support controlled recovery after a fault or power interruption.

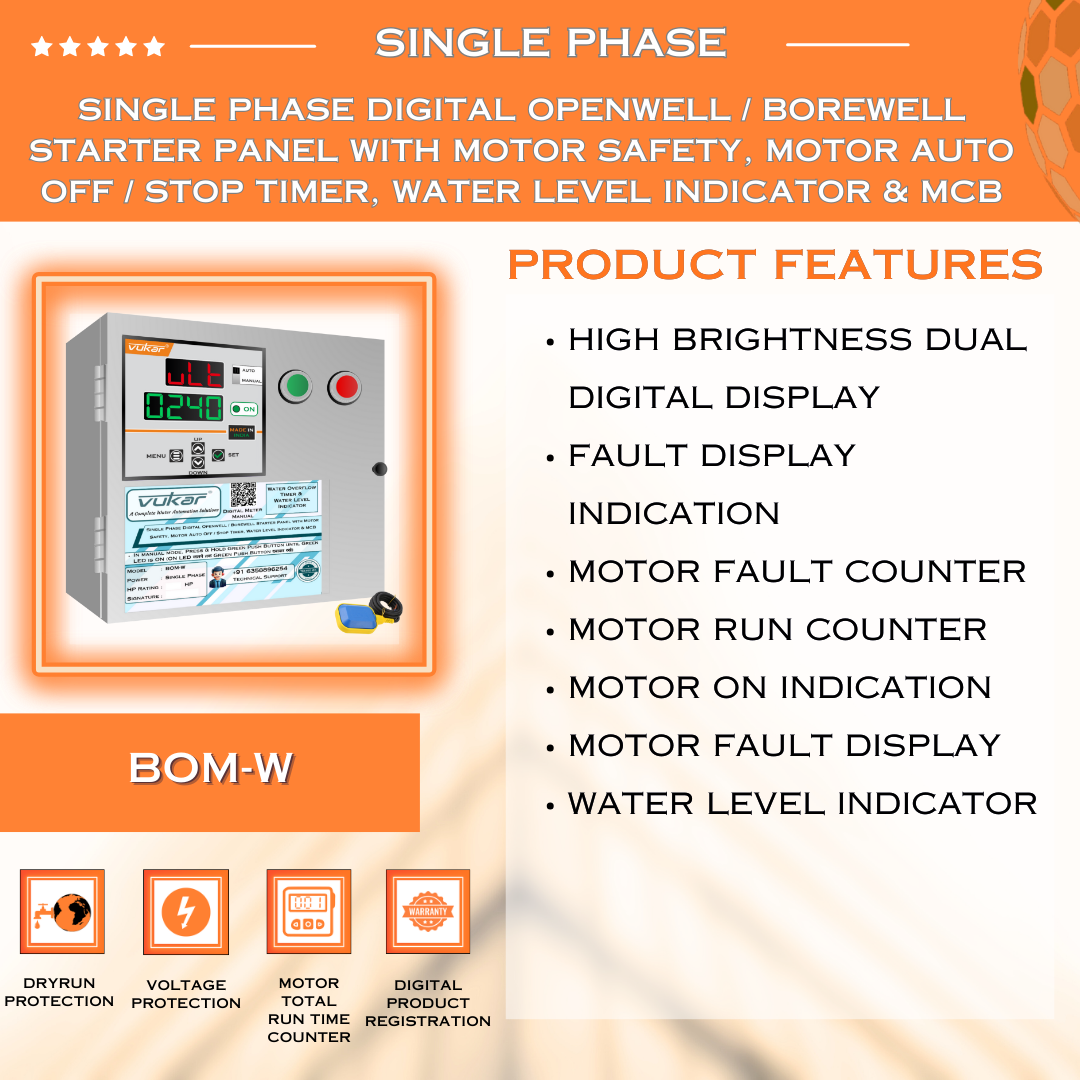

• Motor ON indication, fault display, fault counter and run-time counter provide operating information on the panel.

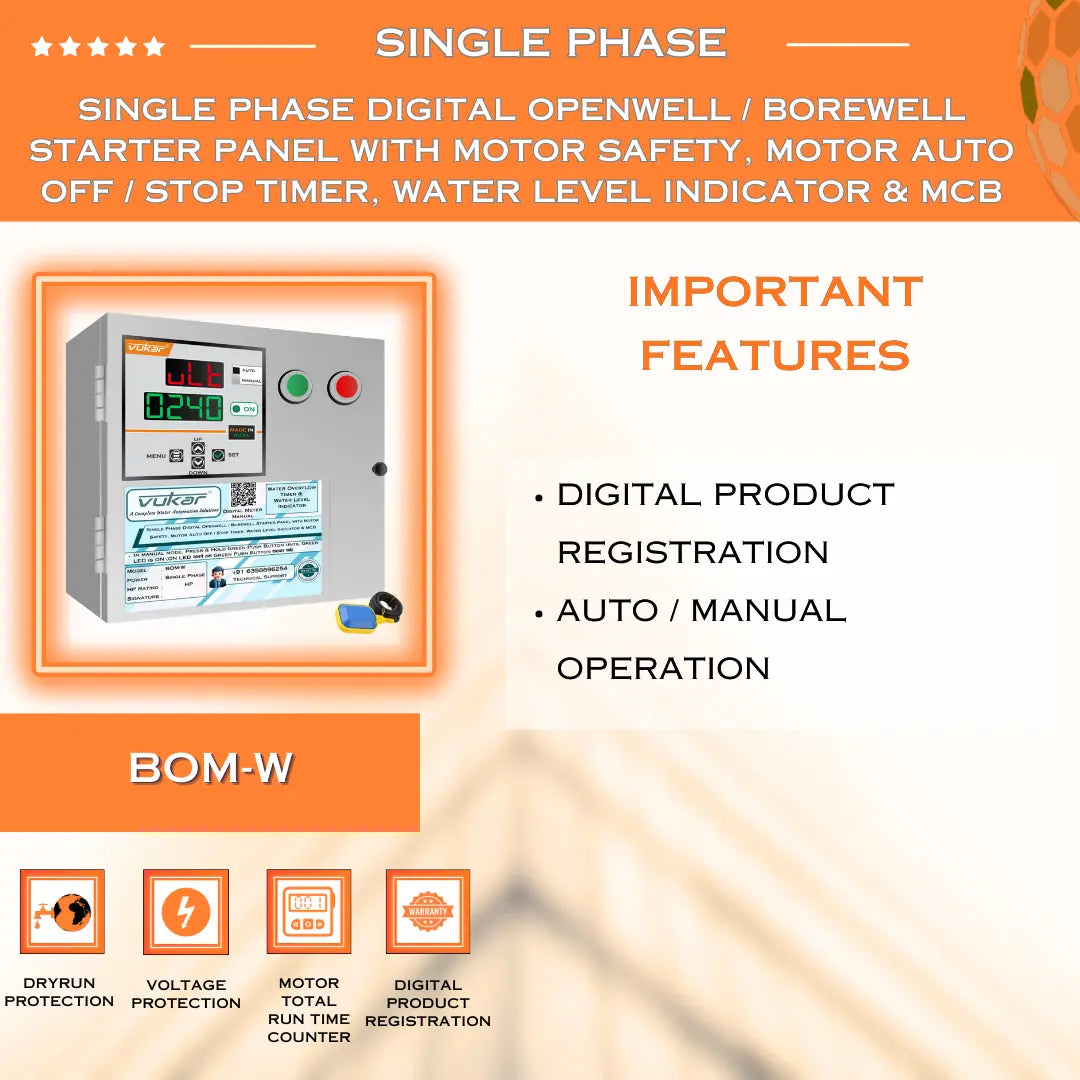

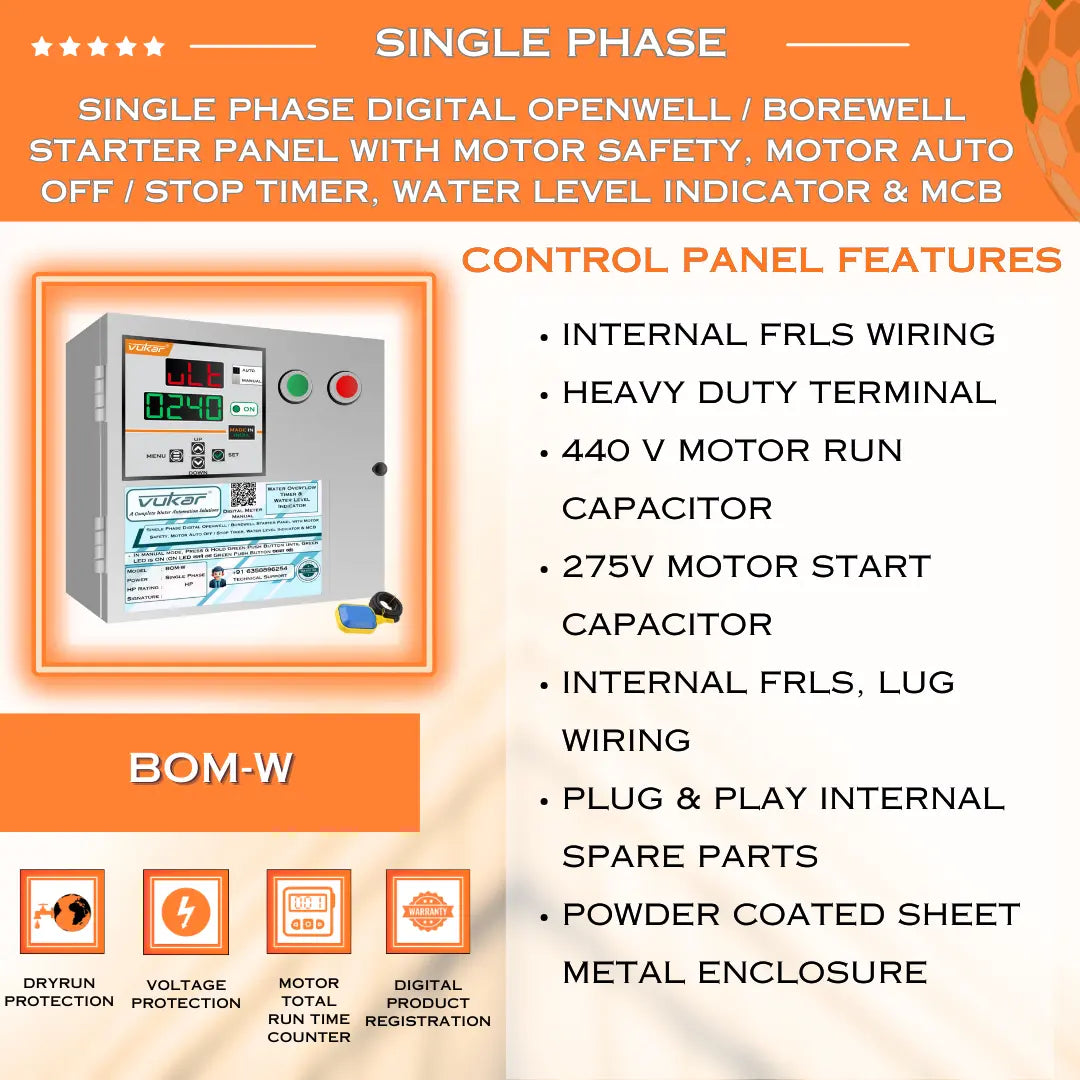

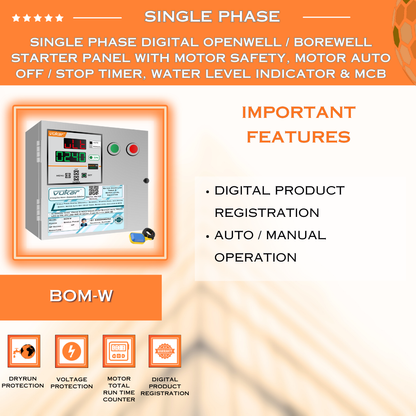

Product feature reference

Installation and selection

• Use only with a compatible single phase borewell or openwell pump within the selected 0.5–3 HP variant range.
• Match the variant to the pump nameplate HP and current; protection settings must be configured for the actual motor.

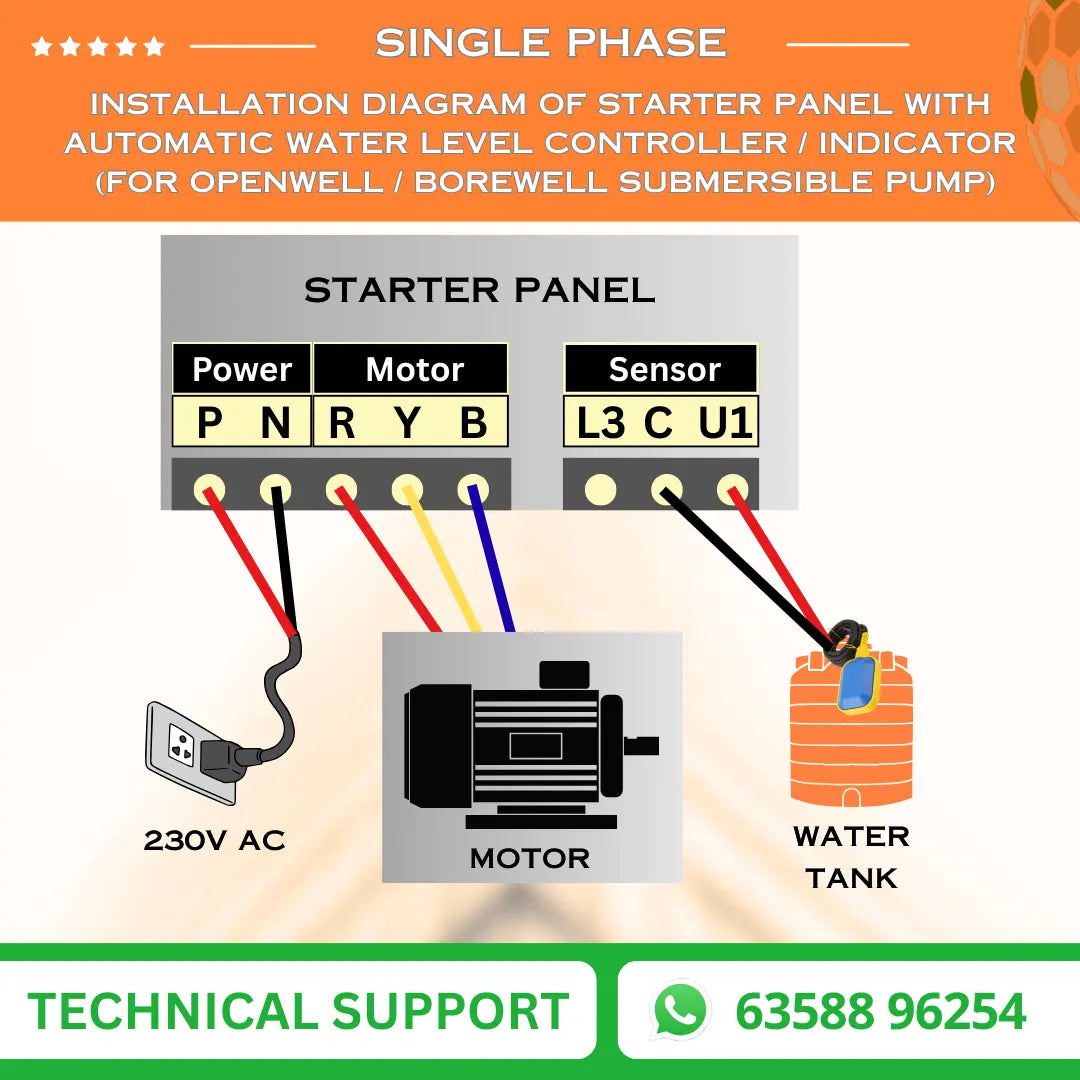

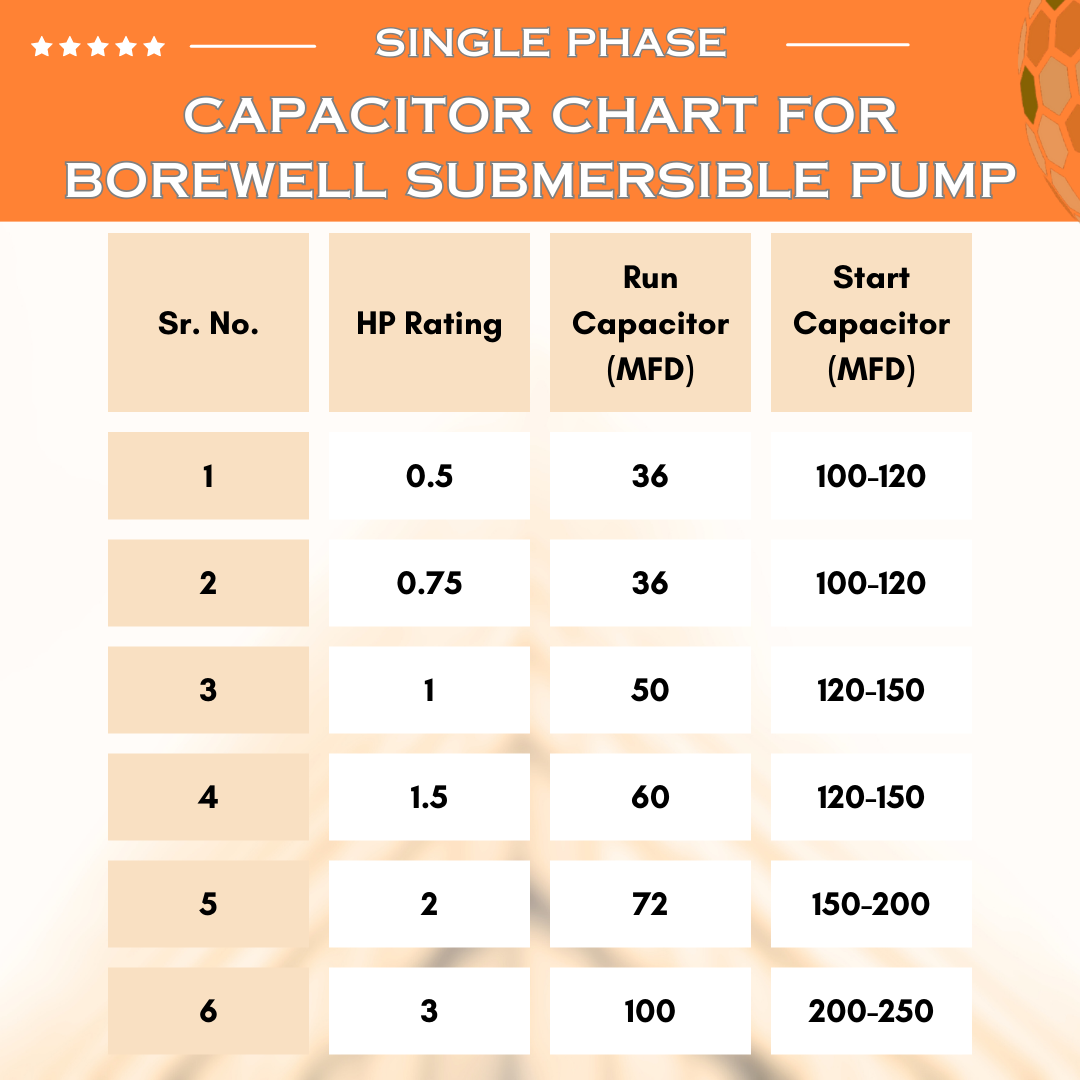

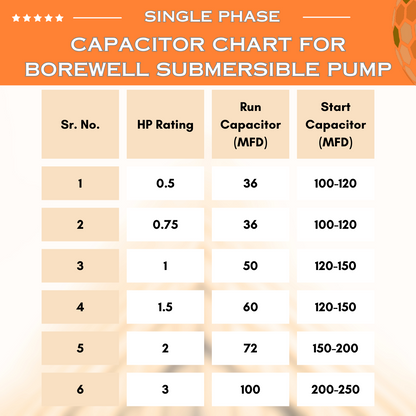

• Installation, earthing, capacitor connections and sensor wiring should be completed by a qualified electrician.
• Tank sensor or float-switch positioning must be tested before automatic operation.

Warranty, delivery and support

• Warranty: 1 year when purchased from this website.
• Dispatch: 0–1 working day. Expected delivery: 1–5 working days from the order date across India.
• Shipping: free across India; no hidden or extra charge stated for the order.
• Technical support: WhatsApp or call +91 63588 96254.
• To order by phone, send your name, address, contact number, PIN code and model to +91 95121 72271.

Frequently asked questions

Does the panel work with every single phase pump?

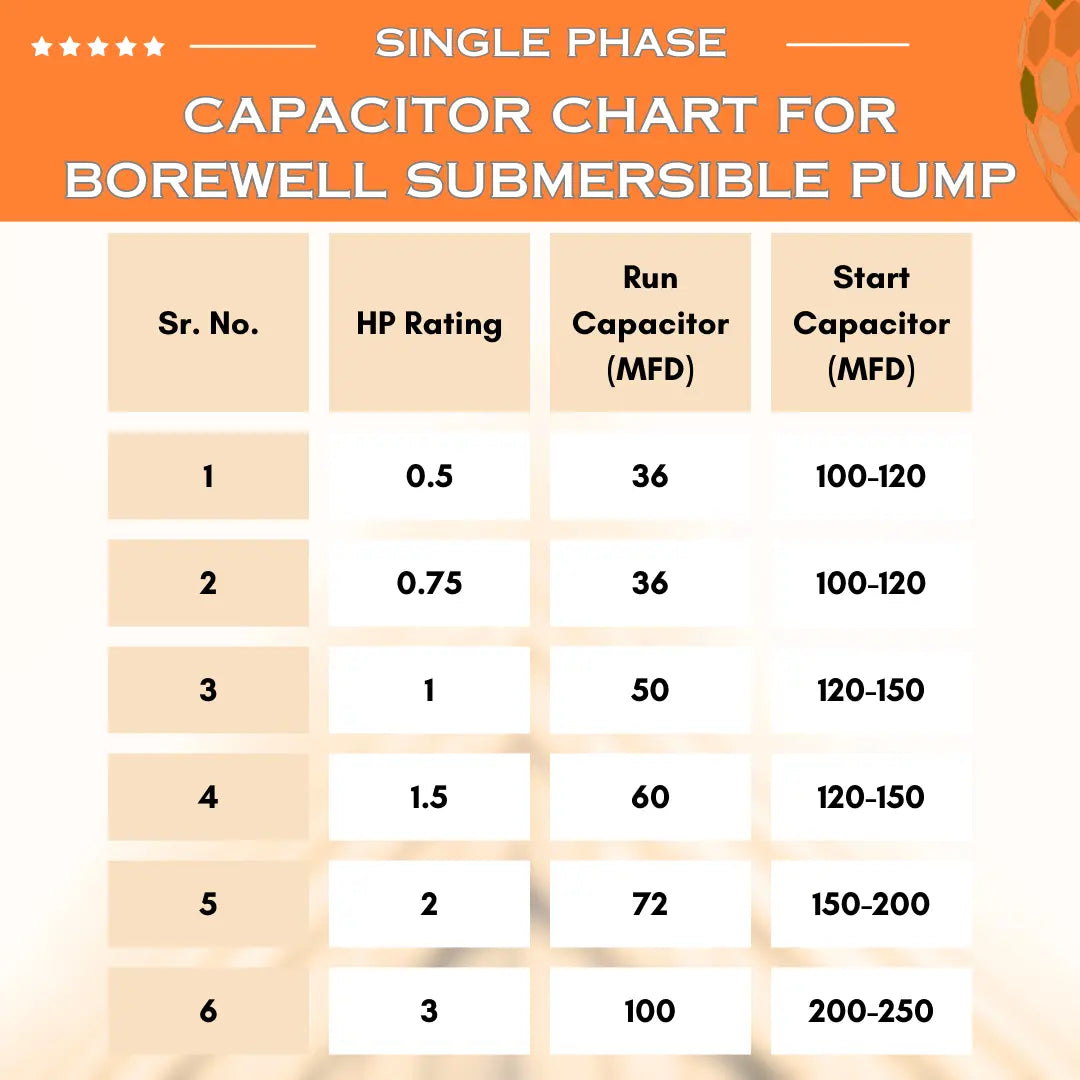

No. Choose the correct HP/current variant for the pump nameplate and verify wiring and capacitor requirements before installation.

Does BOM-W include automatic tank-level control?

No automatic tank-level control is claimed for this model. It includes tank-level indication through the supplied cable float switch.
