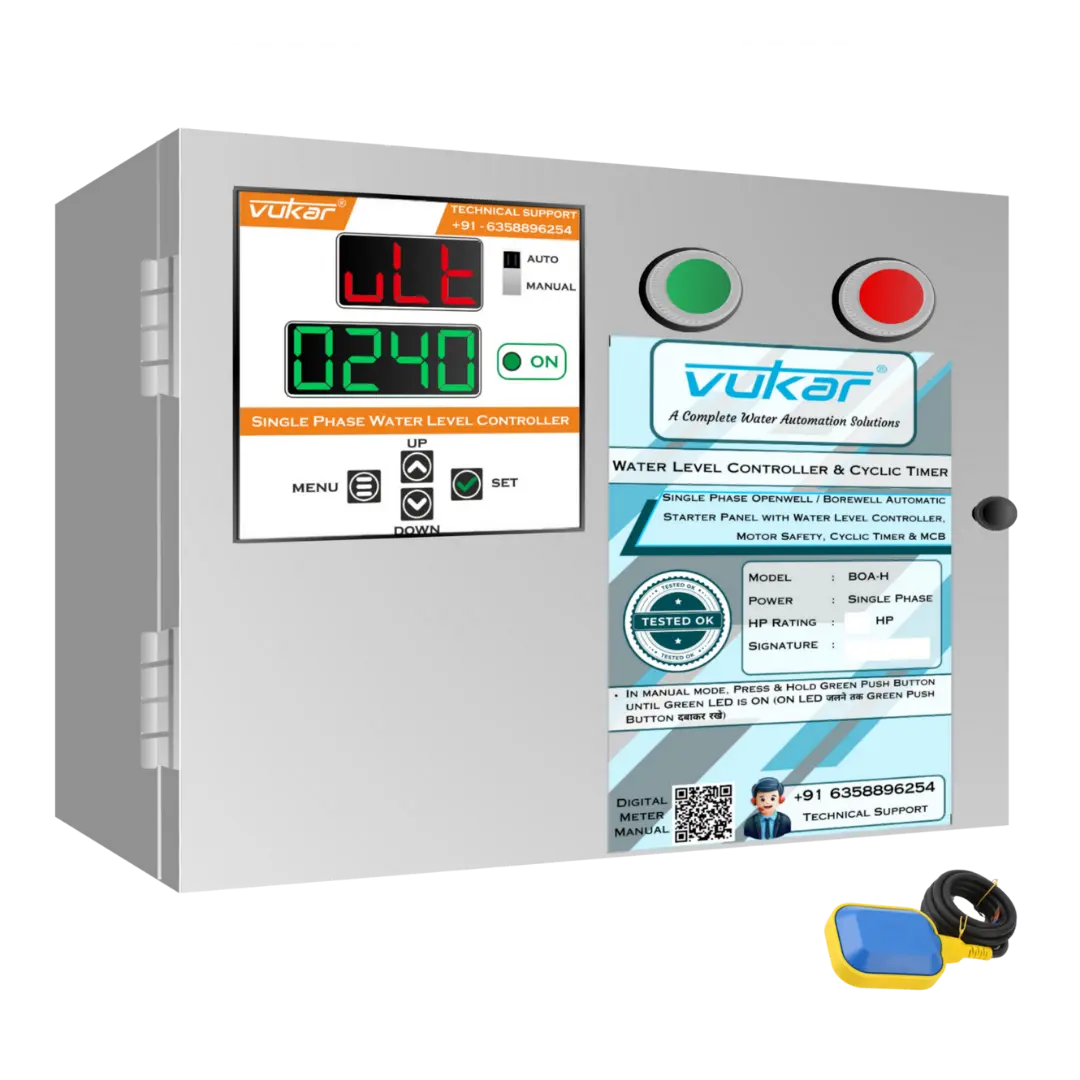

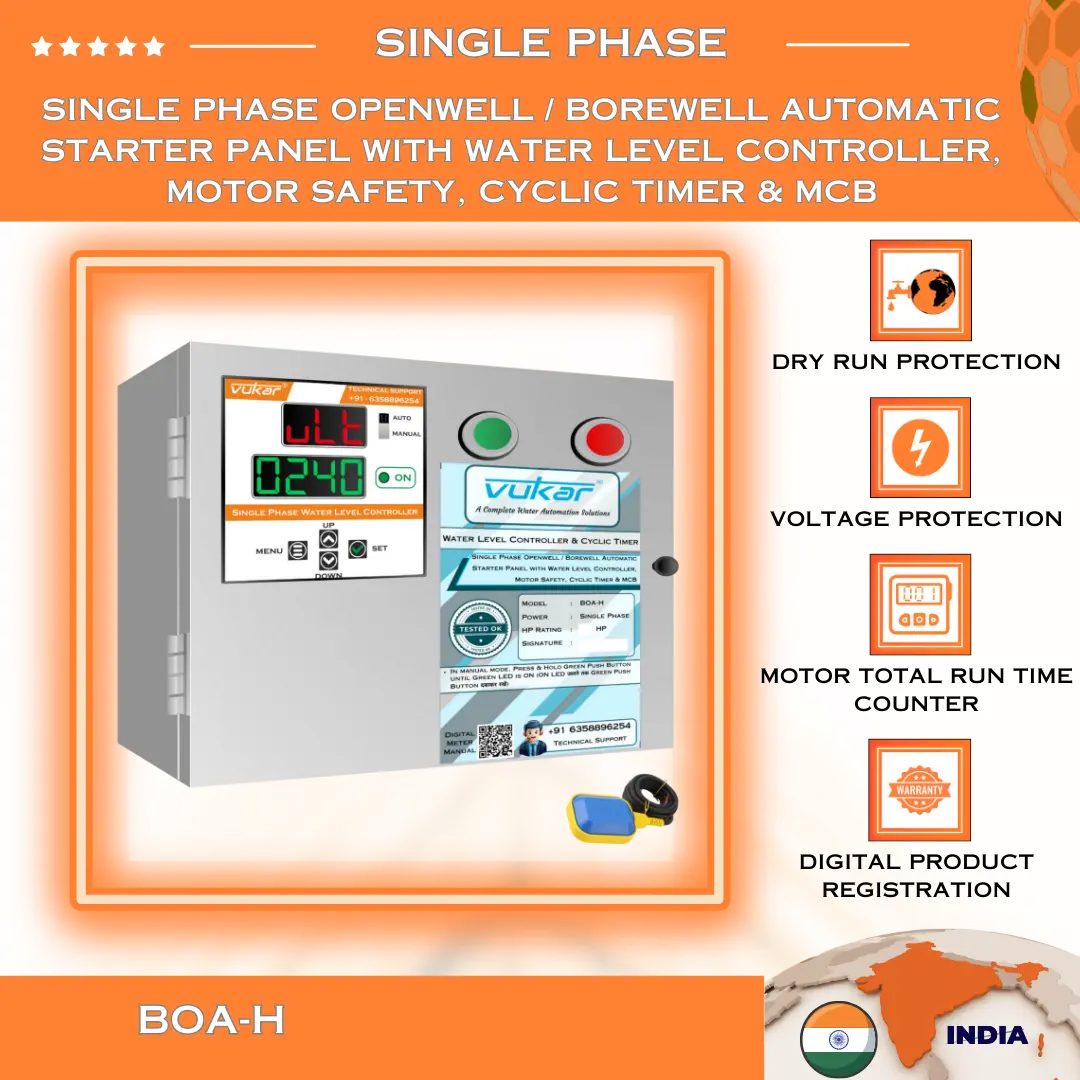

Single Phase Openwell / Borewell Automatic Starter Panel with Water Level Controller, Motor Safety, Cyclic Timer & MCB (BOA-H)

BOA-H is a single phase borewell/openwell motor starter panel for 0.5–2 HP pumps. Its defining function is automatic water level control, cyclic timer and inbuilt MCB. Select the exact HP variant only after matching the pump rating and operating current.

Who should choose BOA-H?

Choose BOA-H when tank-level automation and repeat-cycle control are required together with an inbuilt MCB.

Model-specific functions

• Automatic Water Level Controller starts and stops the pump from tank-level demand.
• Cyclic Timer supports repeated ON/OFF operation.
• Inbuilt MCB provides short-circuit protection for the panel circuit; cable float switch is included.

Motor protection and monitoring

• Overvoltage and undervoltage protection disconnects the motor when supply voltage moves outside the configured limits.
• Overload and dry-run protection stops the pump when the configured current conditions indicate excess load or loss of water.
• Overload Safety Lockout, Power-On Auto-Start Timer and Programmable Dry-Run Auto-Restart Timer support controlled recovery after a fault or power interruption.
• Motor ON indication, fault display, fault counter and run-time counter provide operating information on the panel.

Product feature reference

Installation and selection

• Use only with a compatible single phase borewell or openwell pump within the selected 0.5–2 HP variant range.
• Match the variant to the pump nameplate HP and current; protection settings must be configured for the actual motor.

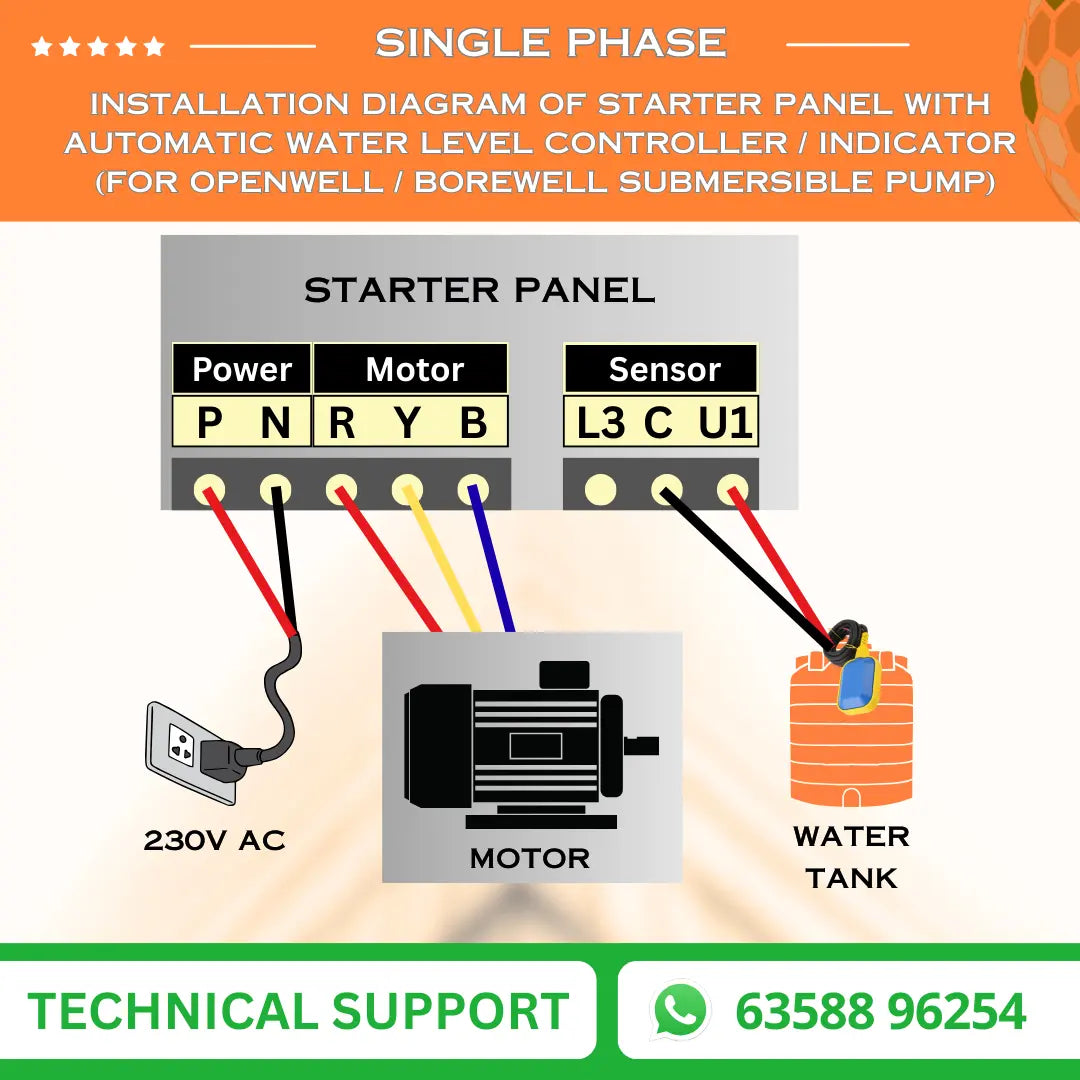

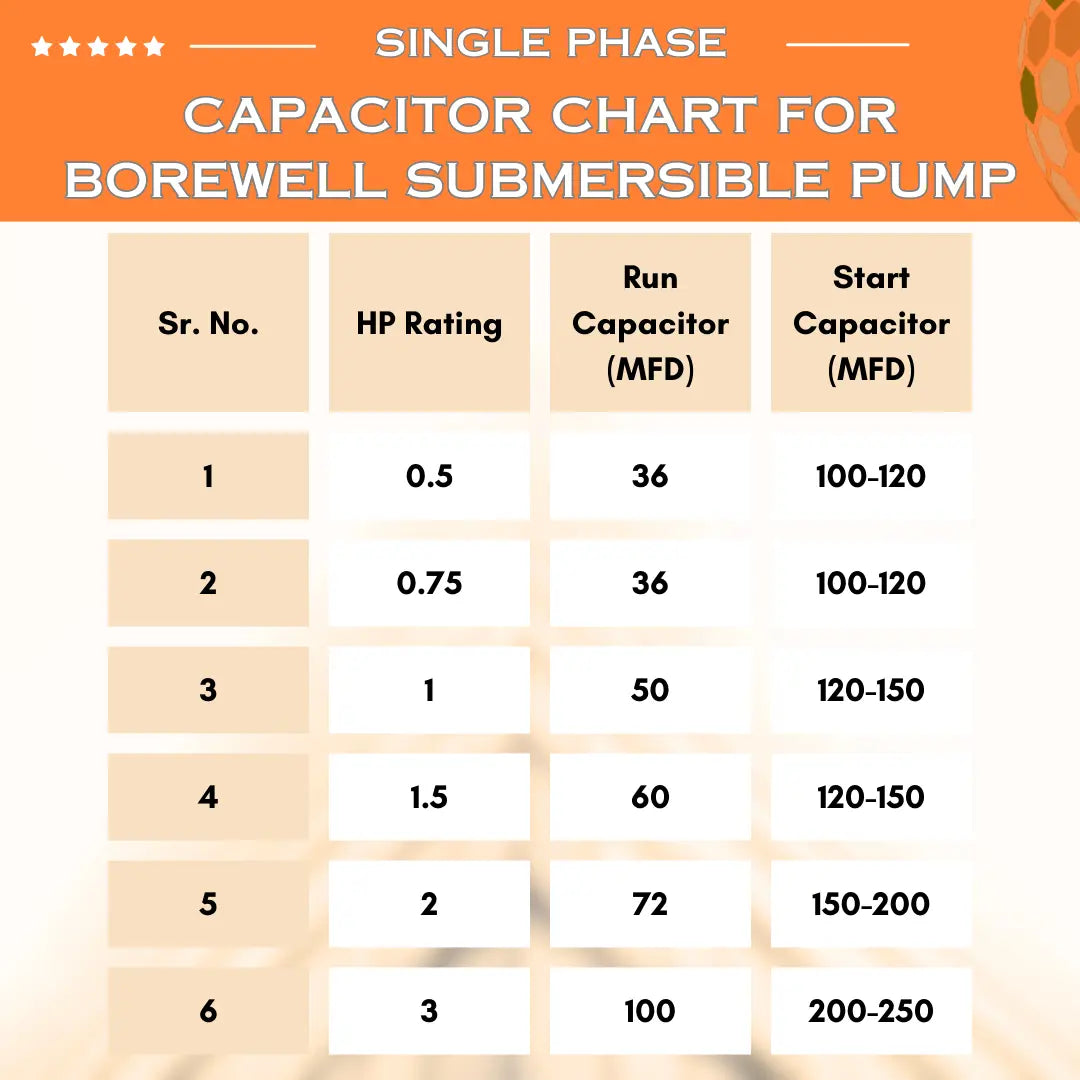

• Installation, earthing, capacitor connections and sensor wiring should be completed by a qualified electrician.
• Tank sensor or float-switch positioning must be tested before automatic operation.

Warranty, delivery and support

• Warranty: 1 year when purchased from this website.
• Dispatch: 0–1 working day. Expected delivery: 1–5 working days from the order date across India.
• Shipping: free across India; no hidden or extra charge stated for the order.
• Technical support: WhatsApp or call +91 63588 96254.
• To order by phone, send your name, address, contact number, PIN code and model to +91 95121 72271.

Frequently asked questions

Does the panel work with every single phase pump?

No. Choose the correct HP/current variant for the pump nameplate and verify wiring and capacitor requirements before installation.

Does BOA-H include automatic tank-level control?

Yes. This BOA model includes automatic water level control and a cable float switch.
